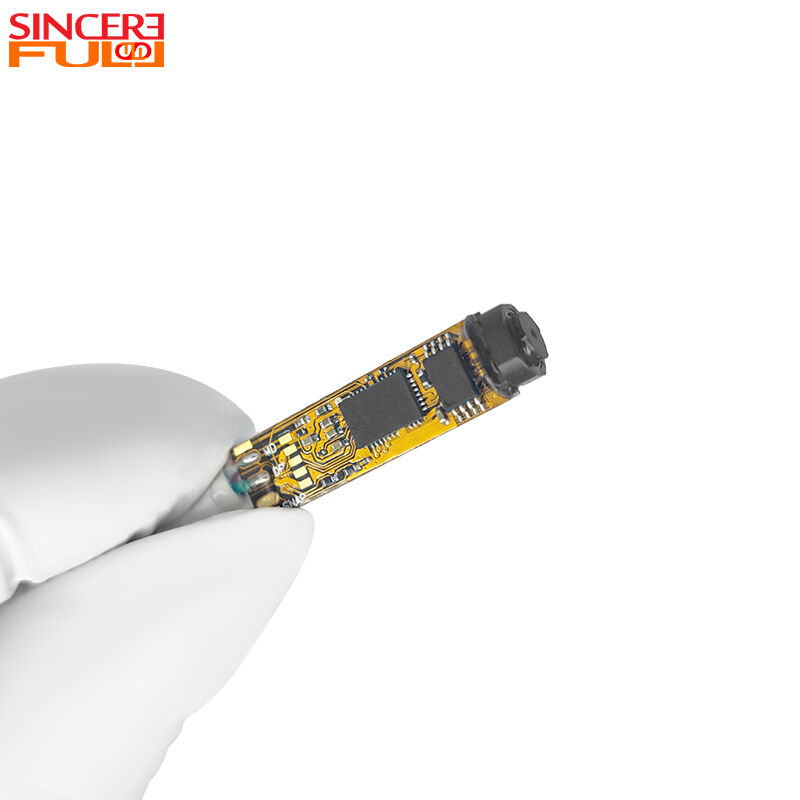

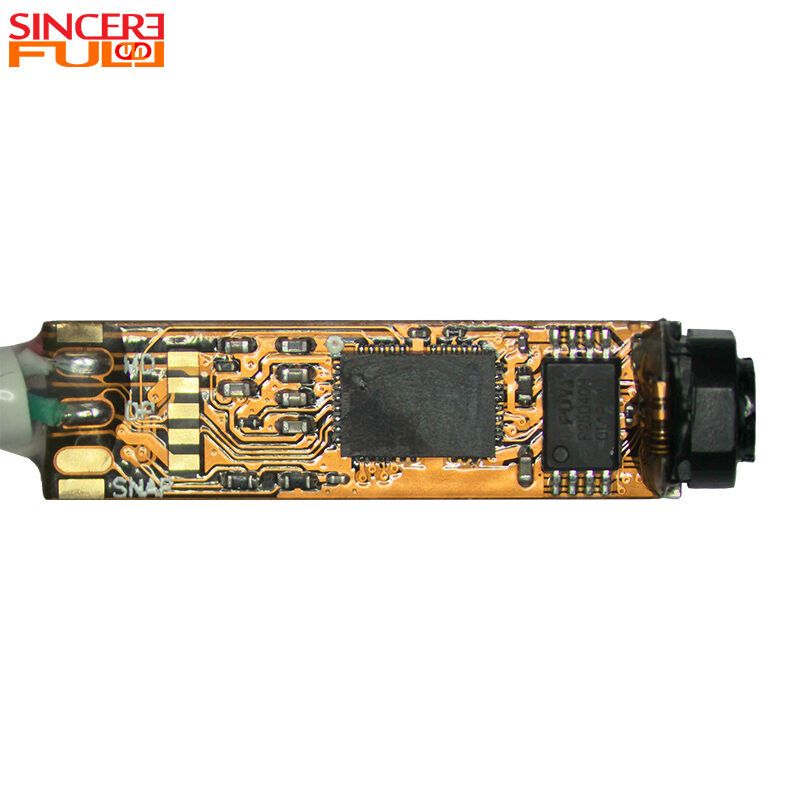

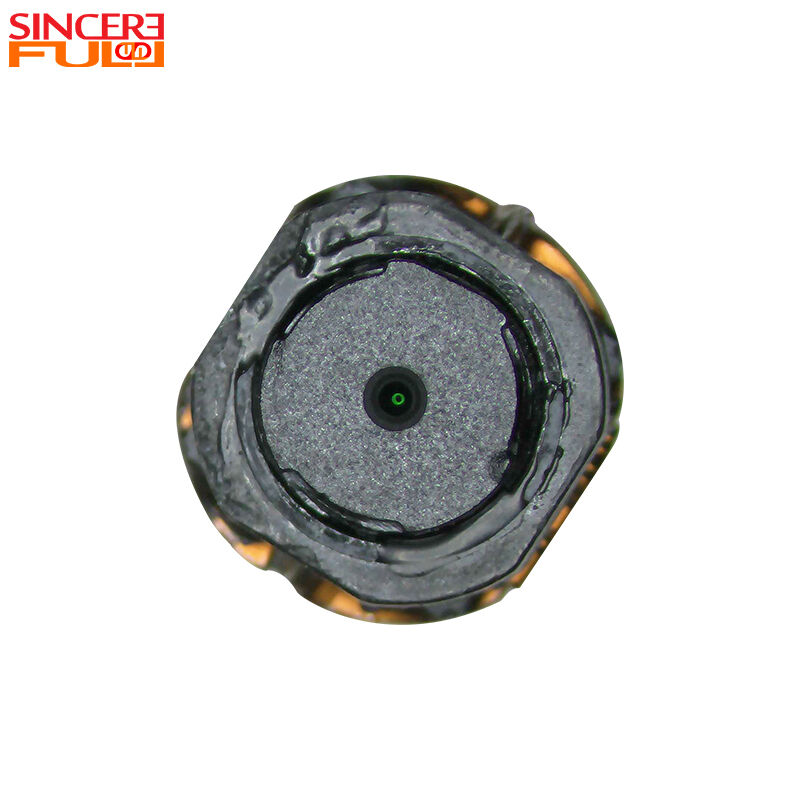

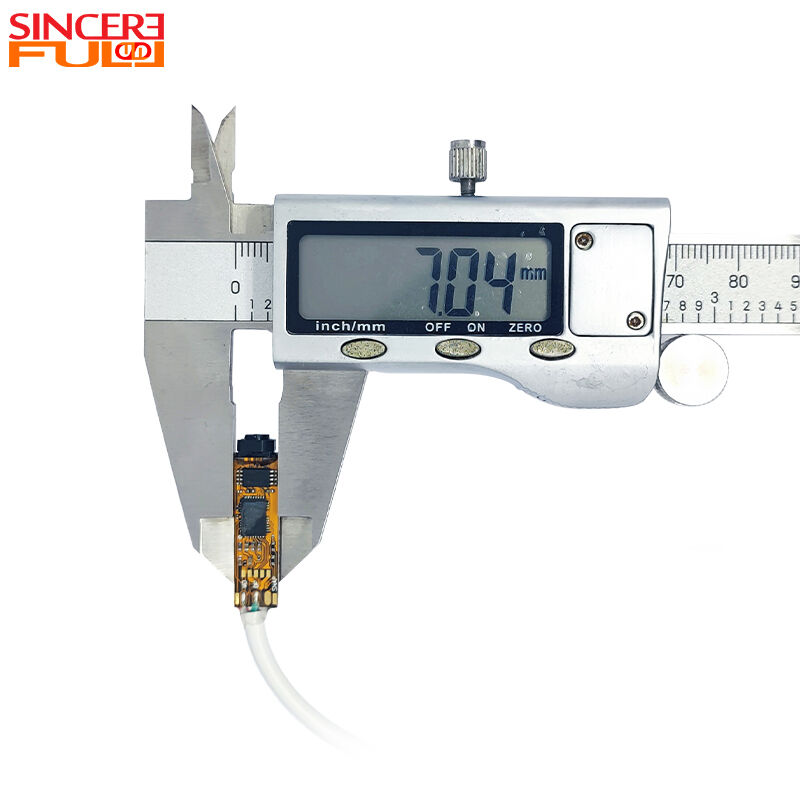

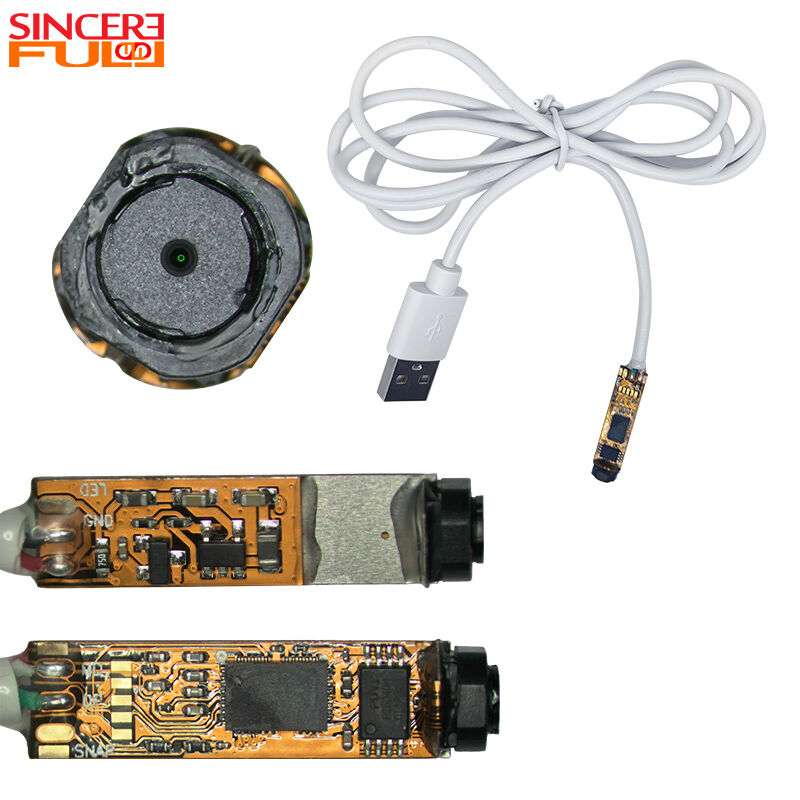

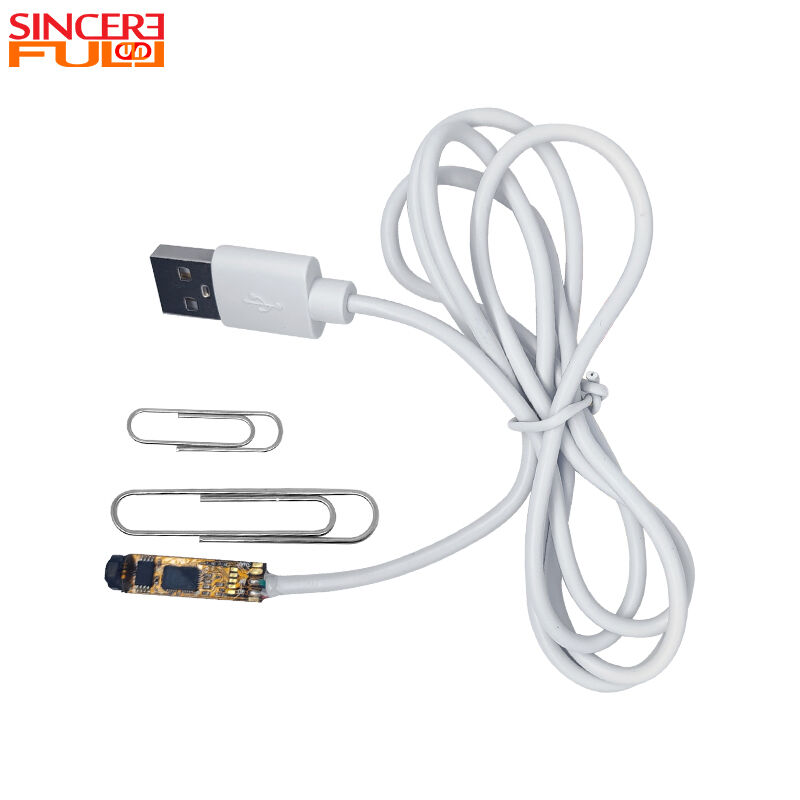

This 1080P HD Image Fixed Focus Low Distortion USB2.0 Integrate Endoscope Camera Module,is integration-friendly visual component engineered for stable and accurate medium and close-range imaging. Powered by a 1/5-inch 2-megapixel CMOS sensor, it supports fluent 1080P@30fps video output in MJPEG and YUV2 formats, providing delicate image details for visual recognition and data recording. Featuring a 60° diagonal viewing angle, 2.63mm focal length and F2.8 aperture, the module maintains highly consistent optical performance within the 30–50mm fixed focusing range, effectively eliminating frequent refocusing operations. It restricts overall distortion below 1%, reproducing real object contours and ensuring credible visual reference for observational measurement and defect judgment. Designed with a miniature 7mm diameter and 28.3mm overall length, it fits narrow installation spaces and matches most mainstream equipment assembly structures. Equipped with a 6PIN USB2.0 interface and built-in UVC universal protocol, it achieves direct connection with Windows, Linux and Android systems without driver installation, greatly simplifying secondary development and equipment integration. With a wide working temperature range of -10℃ to 50℃ and RoHS compliance, it delivers durable and stable operation in daily and complex application environments.
| Product Name | Endoscope Camera Module |
| Sensor Size | 1/5inch |
| Diameter | 7mm |
| Pixel | 2MP |
| FOV | D60° |
| Resolution | 1920*1080 |
| Interface | USB2.0 |
| Distortion | <1% |
| Feature | Fixed Focus |
| Brand | Sincerefirst |
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
