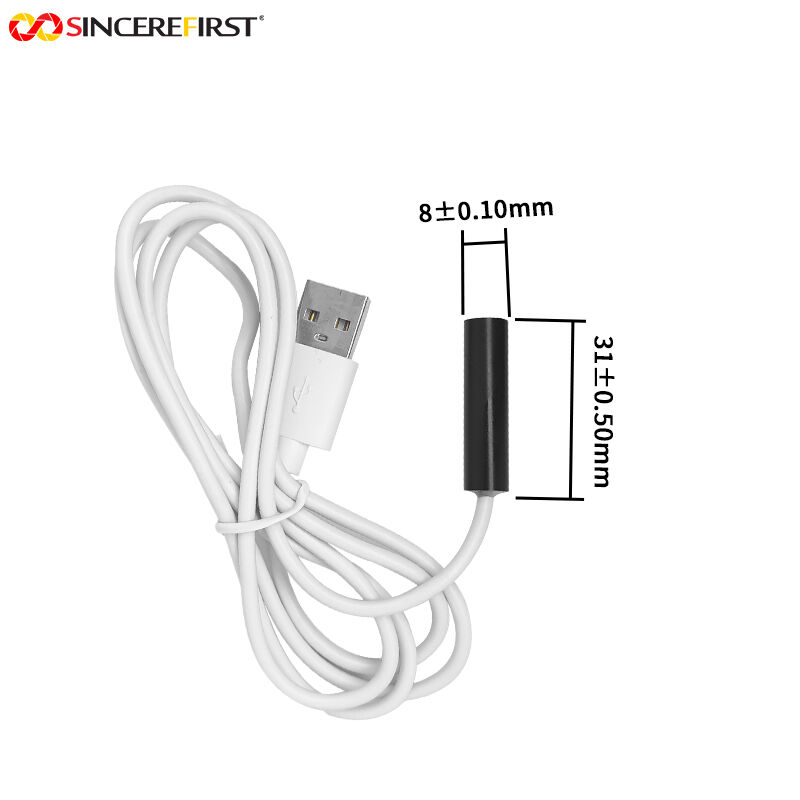

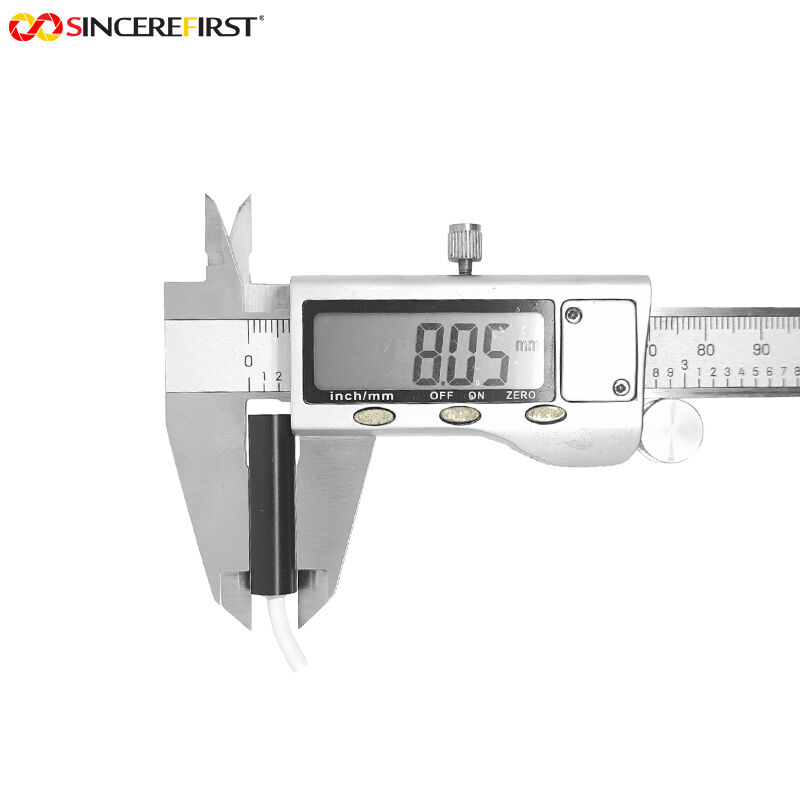

This 8mm Diameter 2MP 1080P HD USB UVC Fixed Focus Endoscope Camera Module is a durable, integration-oriented imaging component designed to lower development barriers for close-range visual systems. Reinforced with a premium round steel sheath, its 8±0.1mm probe withstands frequent friction and collisions during internal detection, extending service life in complex confined environments. Adopting a 2MP sensing element and F2.8 large-aperture lens with a 2.63mm focal length, the optical system undergoes precise calibration to deliver 1080P high-resolution visuals across a 60° diagonal field of view. Restricting distortion below 1%, the optics faithfully replicate object geometry, making the module ideal for scenarios requiring intuitive observation and auxiliary measurement. Pre-calibrated to lock sharp focus between 30mm and 50mm, it removes the need for manual focal adjustment and extra debugging work. The universal USB Type-A interface adopts standard USB2.0 UVC protocol to achieve cross-platform driver-free connection, helping users shorten assembly cycles and reduce peripheral configuration costs. All modules comply with RoHS guidelines, serving as a cost-effective and durable visual solution for embedded deployment and daily close-range collection tasks.
| Product Name | Endoscope Camera Module |
| Sensor Size | 1/5inch |
| Diameter | 8mm |
| Pixel | 2MP |
| FOV | D60° |
| Resolution | 1920*1080 |
| Interface | USB2.0 |
| Distortion | <1% |
| Feature | Fixed Focus |
| Brand | Sincerefirst |
1. Component Surface Inspection: Can identify tiny scratches, solder defects and abnormal textures on miniature parts with calibrated low-distortion optics.
2. Embedded Visual Systems: Can act as a ready-to-use imaging unit for testing devices and mechanical equipment to realize continuous real-time monitoring.
3. Visual Data Archiving: Can capture high-definition close-up footage of component surfaces to support quality auditing and data filing.
4. Modular Equipment Upgrade: Can directly replace or expand the visual unit of devices with reserved 8mm holes for fast function iteration.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
