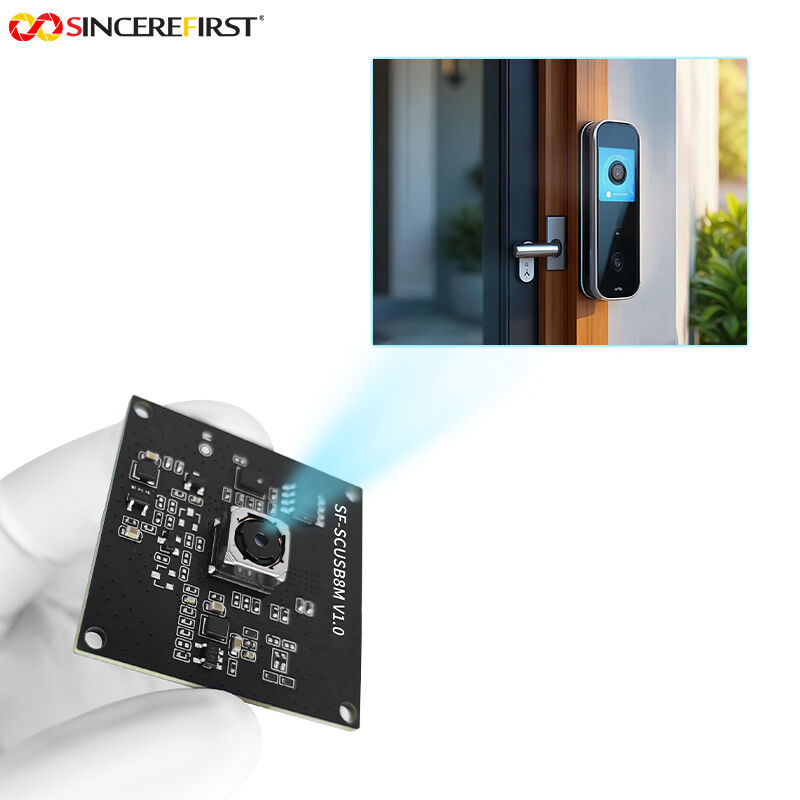

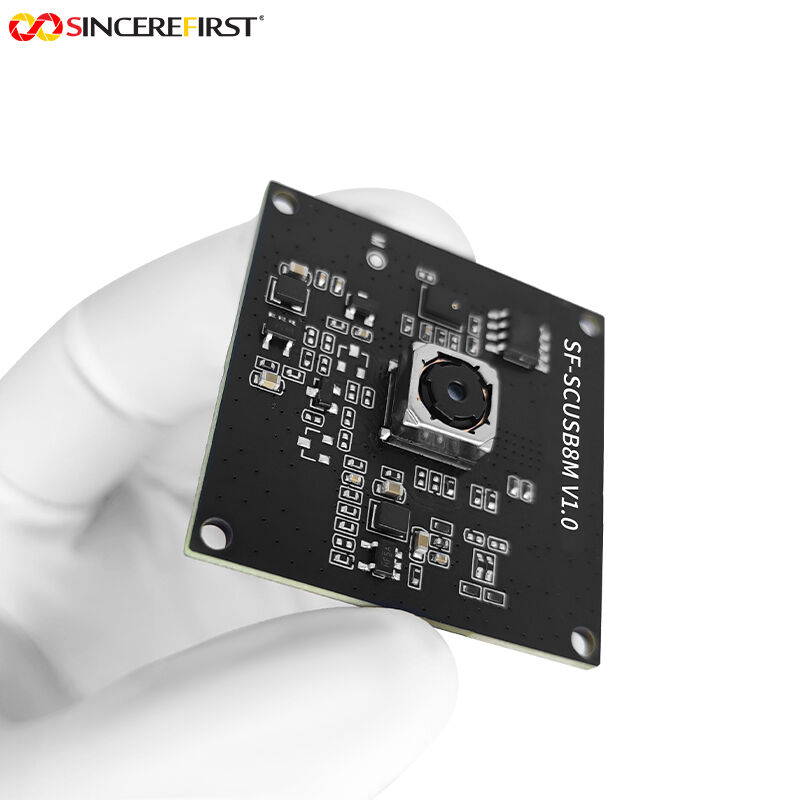

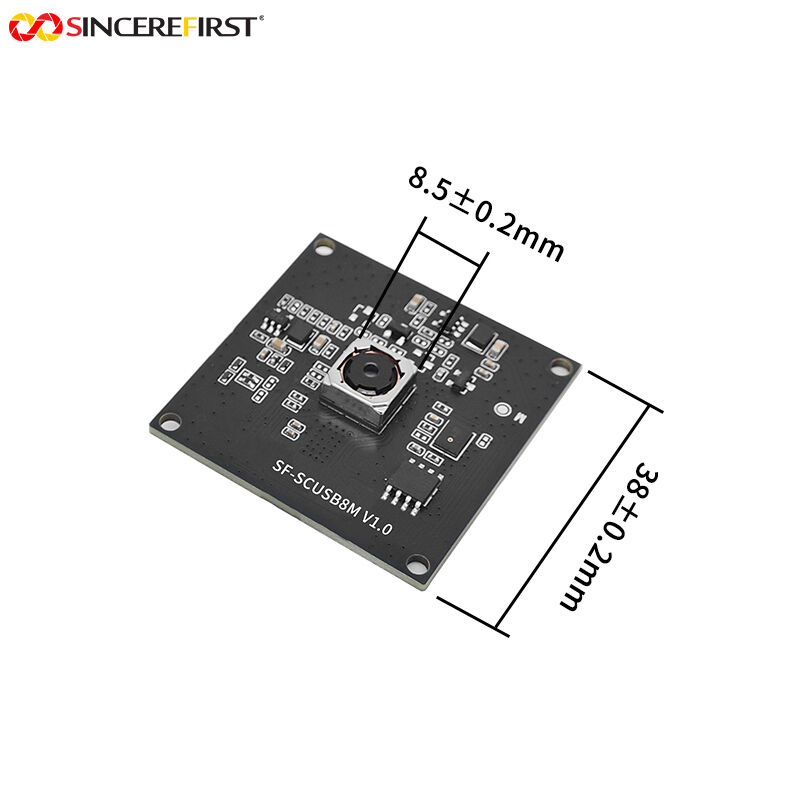

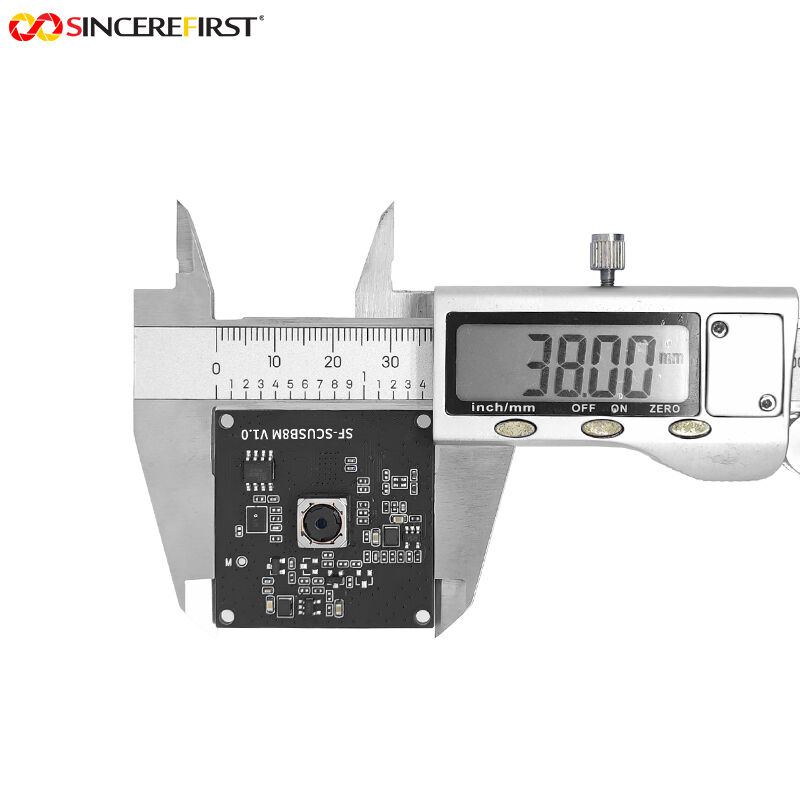

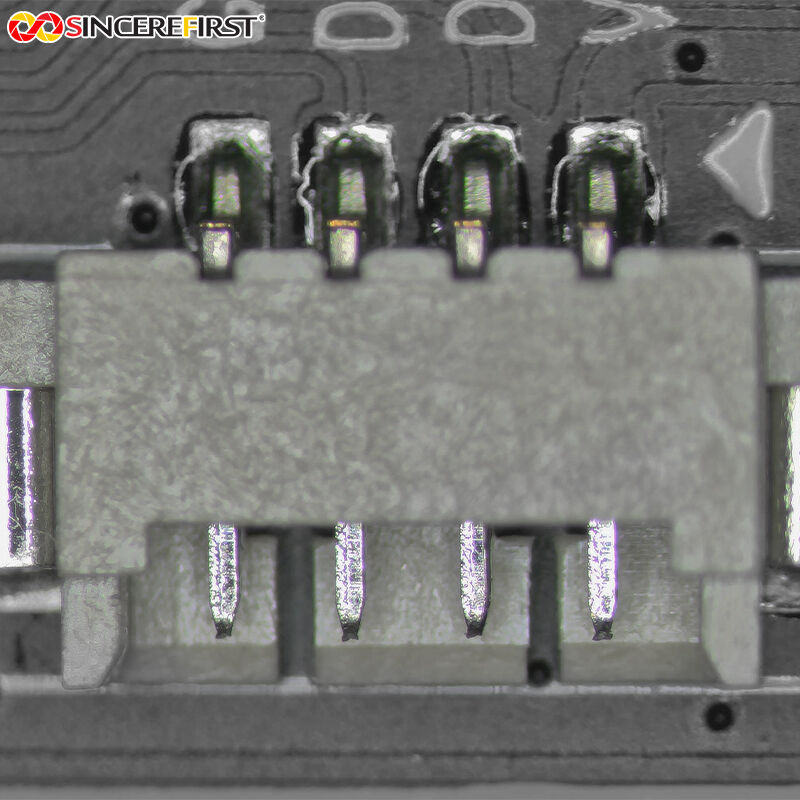

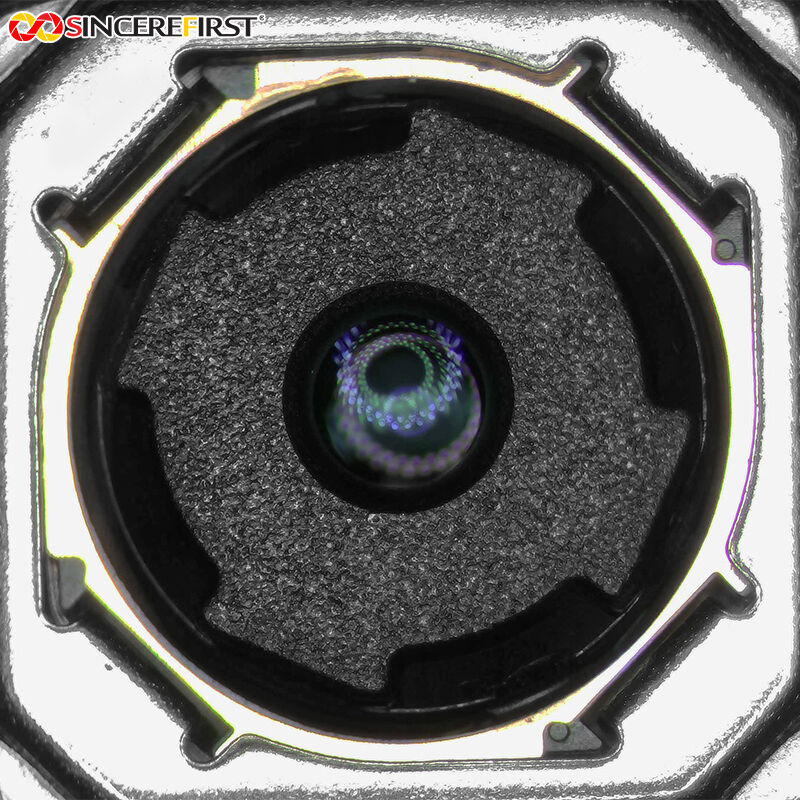

This 8MP UHD Image IMX179 CMOS Sensor Auto Focus Wide Angle USB Endoscope Camera Module is a high-resolution imaging component optimized for scenarios that demand outstanding detail performance and flexible focusing capability. Adopting Sony IMX179 back-illuminated sensor, the module supports 3288×2512 ultra-high resolution output at 15fps and fluent 1080P@30fps video streaming to capture intricate image details efficiently. Its premium optical system consists of a 3.57mm focal length and F2.0 large aperture, which increases light intake, suppresses image noise in low-light surroundings and greatly boosts low-light image performance. The 78.4° diagonal wide-angle lens keeps distortion below -1.5%, presenting realistic and undistorted visuals. Built-in auto-focus mechanism rapidly adjusts focal distance to generate sharp footage for macro close-range image and long-distance framing, expanding applicable working ranges. Manufactured with double-layer PCB structure and equipped with a 4PIN horizontal mounting interface, the module supports 5V USB power supply for easy physical installation. Embedded with universal UVC protocol, it connects to Windows, Linux and Android systems without drivers to reduce integration costs. RoHS compliant, this versatile module perfectly balances ultra-high pixel quality, adaptive focusing and low-light optimization for diverse high-precision imaging tasks.
1. 8MP Ultra-High Definition: Adopts Sony IMX179 back-illuminated sensor to deliver ultra-high resolution output and enhance fine detail identification.
2. Intelligent Auto Focus: Built-in AF structure quickly locks sharp focus across macro and long-distance ranges to accommodate diverse image demands.
3. F2.0 Large Aperture: Elevates light reception volume and reduces noise, achieving stable and clear imaging in low-illumination environments.
4. UVC Cross-System Support: Enables driver-free plug-and-play access across mainstream operating systems to cut integration difficulties and costs.
| Pixel | 8MP |
| Drive Mode | Free Diver |
| Frame Rate | 30fps |
| F.No | 2.0 |
| Brand | SincereFirst |
| Product Name | 8MP USB Camera Module |
| Resolution | Rolling Shutter |
| Module Size | 3288×2512 |
| Standard | USB High Speed |
| EFL | 3.57mm |
1. High-Definition Document Scanning: Can digitize documents, bills and books with crisp clarity via its 8MP high pixel and auto-focus advantages.
2. Biometric Recognition: Can serve as a high-precision imaging unit to capture facial features, fingerprints and iris data for recognition systems.
3. Surface Visual Detection: Can analyze component positioning, dimensional data and surface flaws relying on its low-distortion high-definition imaging.
4. Embedded Smart Terminals: Can be integrated into vending machines, access control devices and conference terminals as a built-in dedicated camera module.
We can customize module shape, module head size, lens holder, imaging direction, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
