This OV13B10 CMOS Sensor 13MP UHD Image MIPI Interface Auto Focus Camera Module is a high-precision embedded imaging component tailored for sophisticated visual collection projects. Equipped with the OV13B10 sensor with 13 million effective pixels, it outputs original RAW RGB data to retain complete and authentic image information for advanced visual algorithm processing and accurate data analysis. Adopting 3.8mm focal length and F2 large-aperture optical design, it boosts light intake efficiency and greatly improves low-light imaging performance compared with smaller aperture lenses, ensuring stable and clear imaging in dim environments. The 75° diagonal field of view strictly controls geometric distortion within -1.5%, delivering highly restored picture contours to support precise dimensional measurement and defect judgment. Integrated with a high-performance VCM focusing system, it realizes full-range auto-focusing from 10cm to infinity, automatically locking sharp targets for macro close-range and long-distance scenes without manual calibration. Featuring multi-channel MIPI output and dual optional I2C device addresses, it offers strong compatibility with diverse embedded hosts. Reinforced with stainless steel FPC and equipped with AXT series BTB board-to-board connectors, the module supports convenient plug-and-play assembly, simplifies mass production and later maintenance while improving overall structural stability.
1. Ultra-Low Distortion (＜1.5%): Strictly restricts image geometric deformation to guarantee high accuracy for dimensional measurement and visual detection tasks.
2. F2 Large Aperture Optics: Enhances light intake volume effectively and optimizes imaging quality in low-illumination scenarios.
3. Full-Range VCM Auto Focus: Achieves adaptive focusing from 10cm to infinity to cover macro and long-distance imaging without manual adjustment.
4. Detachable BTB Structure: Adopts board-to-board pluggable design to simplify assembly, mass production and post-maintenance procedures.
| Poduct Name | OV13B10 MIPI Camera Module |
| Pixel | 13MP |
| Sensor | OV13B10 |
| Focus Type | Auto Focus |
| Focus Range | 10cm-infinity |
| FOV | D75°*H63.1°*V49.1° |
| Focus Length | 3.8mm |
|
Connector |
BTB |
| F.No | 2.0 |
| Distortion | <-1.5% |
| Feature | UHD Camera Module |
| Interface | MIPI |
| Brand | SincereFirst |
1.Precision Visual Detection: Can capture high-definition appearance and dimensional data of components for flaw inspection and size verification with its low-distortion high-precision imaging.
2. Smart Terminal Imaging: Can serve as a built-in imaging unit for portable scanning devices and self-service terminals to support stable daily visual collection.
3. Biometric Acquisition: Can provide high-fidelity image data for certificate imaging, facial recognition and texture identification scenarios.
4. Mini Smart Devices: Can act as a core high-definition imaging module for educational hardware and portable devices to support flexible outdoor and indoor image collection.

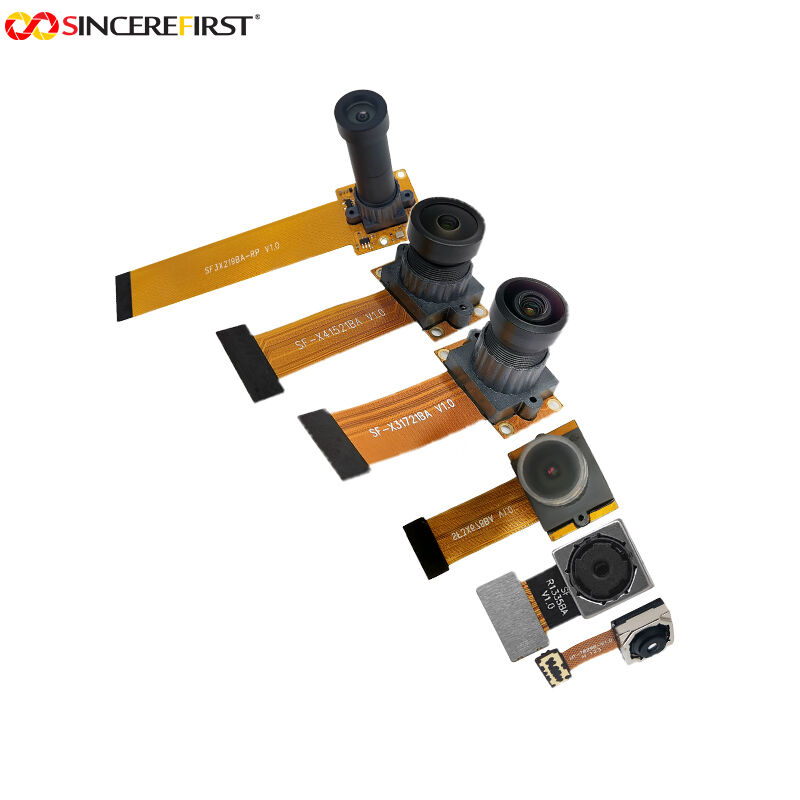

We can customize module shape, module head size, lens holder, imaging direction, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
