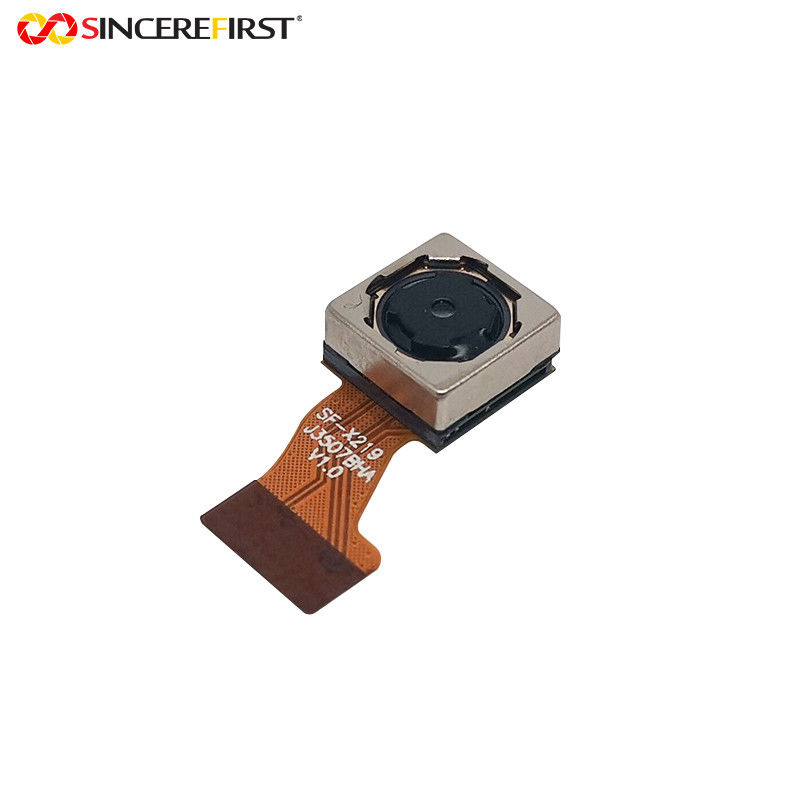

8MP CMOS Camera Module IMX219 Raspberry Pi Camera Module Auto Focus 75 Degree

Raspberry Pi 8MP Auto Focus 75 Degree Sony IMX219 Camera Module

Specificaitons

Description

This is an 8MP Raspberry Pi compatible camera based on the Sony IMX219 image sensor. It's capable of shooting still images at 3280 x 2464 pixels, and also supports 1080p30, 720p60, and 640x480p90 video. It connects to the Pi via a dedicated standard CSi interface.
The camera can be manually adjusted for focus or autofocus, and it complements the official Raspberry Pi camera for different lens mounts, field of view (FOV) and depth of field (DOF), as well as motorized IR-cut filters for daylight and night vision need.

Features

Sony IMX219 Color CMOS 8-megapixel

3280 x 2464 (active pixels)

Back-illuminated CMOS image sensor Exmor RTM

2-wire serial communication circuit on chip

CSI2 serial data output (selection of 4lane/2lane)

Timing generator, H and V driver circuits on chip

CDS/PGA on chip

10-bit A/D converter on chip

Automatic optical black (OB) clamp circuit on chip

PLL on chip (rectangular wave)

High sensitivity, low dark current, no smear

Excellent anti-blooming characteristics

Variable-speed shutter function (1 H units)

R, G, B primary color pigment mosaic filters on chip

Max. 30 frame/s in all-pixel scan mode

Pixel rate: 280 MHz (All-pixels mode)

720p/120 frame/s, 1080p (crop)/30 frame/s

Data rate: Max. 755 Mbps/lan

Device Structure

CMOS Image Sensor

Image Size: Diagonal 4.60 mm (Type 1/4.0)

Total number of pixels: 3296 (H) × 2512 (V) approx. 8.28 M pixels

Number of effective pixels: 3296 (H) × 2480 (V) approx. 8.17 M pixels

Number of active pixels: 3280 (H) × 2464 (V) approx. 8.08 M pixels

Chip size: 5.095 mm (H) × 4.930 mm (V) (w/ Scribe

Unit cell size: 1.12 μm (H) × 1.12 μm (V)

Substrate material: Silicon

Applicaitons

Smart Toys
Home Security Supervise
Face Recognition
Embedded Systems
Machine Vision, etc.
