The camera module is built with the FPC version of the OV5640 sensor with autofocus. The OV5640 image sensor is capable of taking 2592x1944 (5MP) images. The sensor supports the YUV image format. Depending on the resolution, you can achieve frame rates up to 30 FPS.
1. 1.4 μm x 1.4 μm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise, improved quantum efficiency)
2. optical size of 1/4"
3. automatic image control functions: automatic exposure control (AEC).automatic white balance(AWB), automatic band filter (ABF),automatic 50/60 Hz luminance detection, and automatic black level calibration(ABLC)
4. programmable controls for frame rate, AEC/AGC 16-zone size / position / weight control, mirror and flip, cropping,windowing, and panning
5. Image quality controls: color saturation, hue, gamma, sharpness (edge enhancement). lens correction, defective pixel canceling, and noise canceling
6. support for output formats:RAW RGB. RGB565/555/444,CCIR656,YUV422/420 YCbCr422,and compression ◆support for video or snapshot operations
7. support for internal and extemal frame synchronization for frame exposure mode
8. support for LED and flash strobe mode
9. support for horizontal and vertical sub-sampling. binning
10. support for minimizing artifacts on binned image
11. support for data compression output
12. support for anti-shake
13. standard serial SCCB Interface
14. digital video port (DVP) parallel output interface and dual lane MIPI output interface
15. embedded 1.5V regulator for core power
16. programmable I/O drive capability,l/O tri-state configurability
17. support for black sun cancellation
18. support for images sizes: 5 megapixel, and any arbitrary size scalling down from 5 megapixel
19. support for auto focus control (AFC) with embedded AF VCM driver
20. embedded microcontroller
21. suitable for module size of 8.5x 8.5x＜6mm with both CSP and RW packaging
| Product Name: | MIPI Camera Module |
| Sensor: | OV5640 |
| Features: | High Resolution, Auto Focus |
| Pixel: | 5MP |
| Pinout: | 24Pin |
| Focusing Range | 10cm to Infinity |
| Certificate | CE, FCC, ISO, REACH |
| Focal Length | 3.37mm |
| F Number | 2.8 |
| Output Format | YUV output |
We can customize FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Industrial and Smart Energy
Robots
Baby Hammock

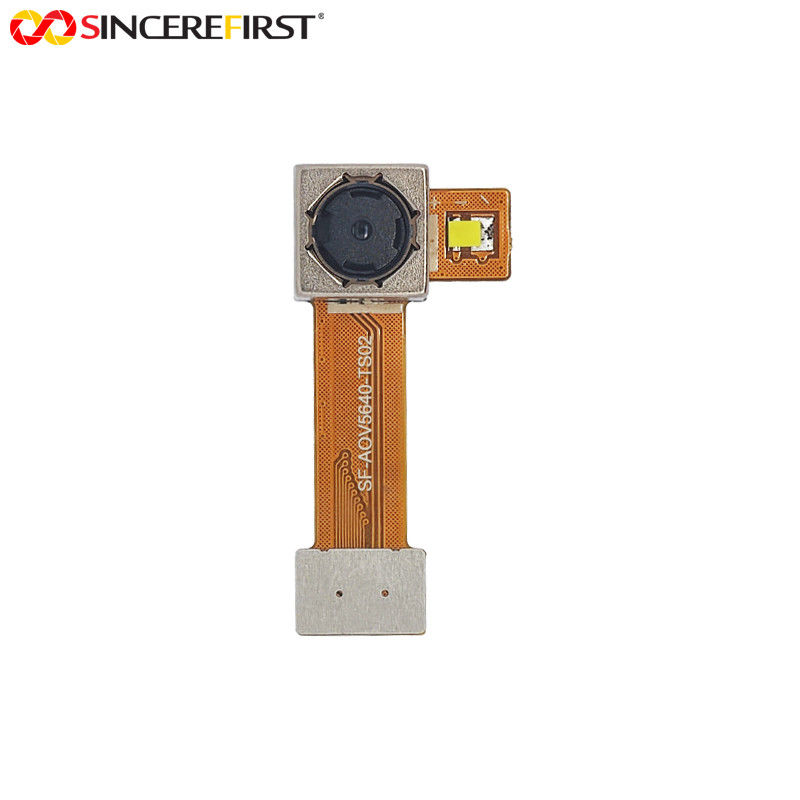

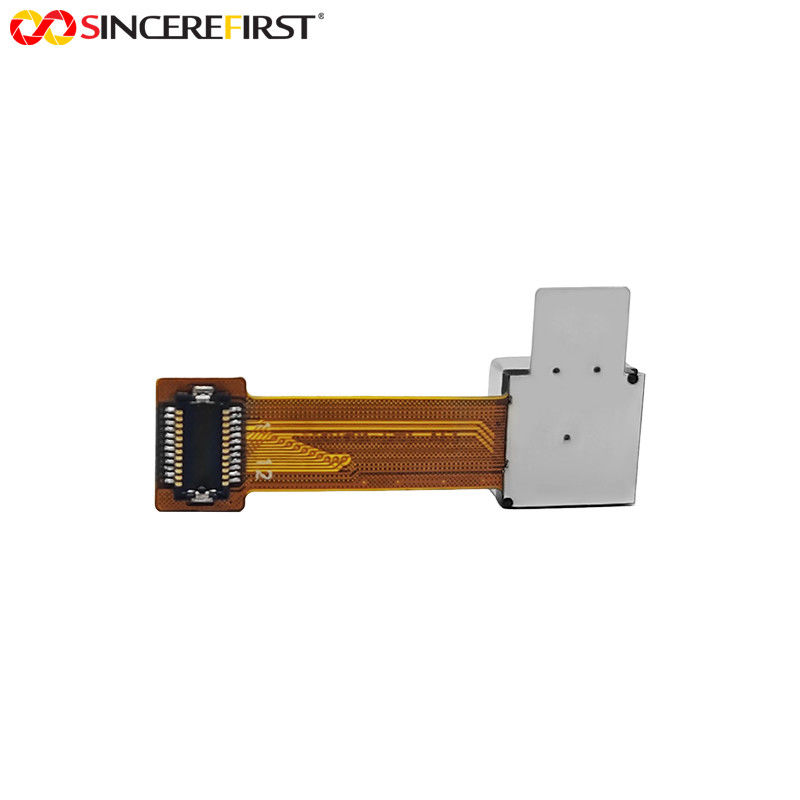

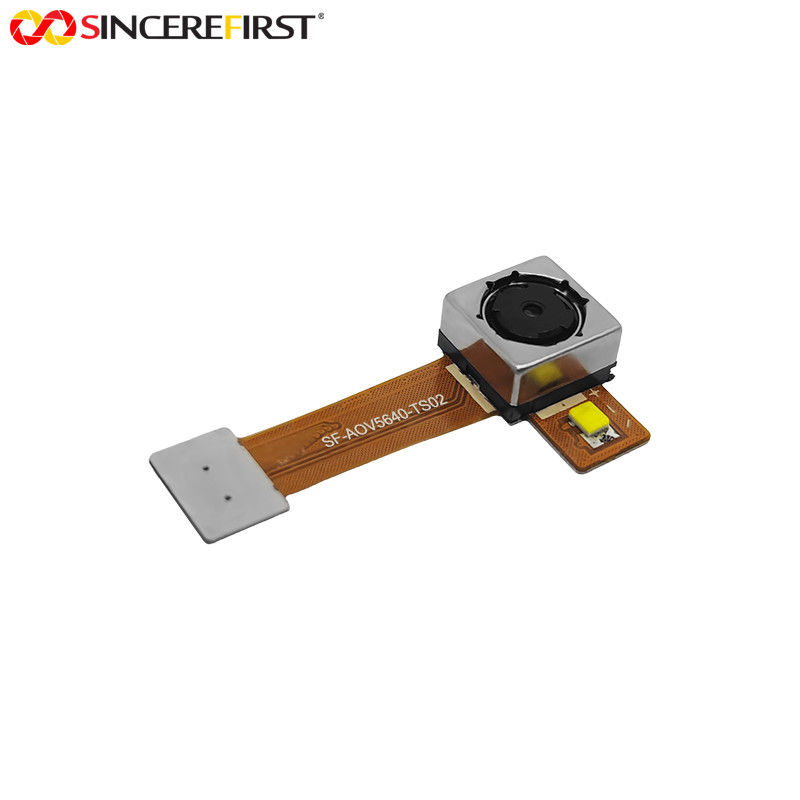

Details Pictures:
