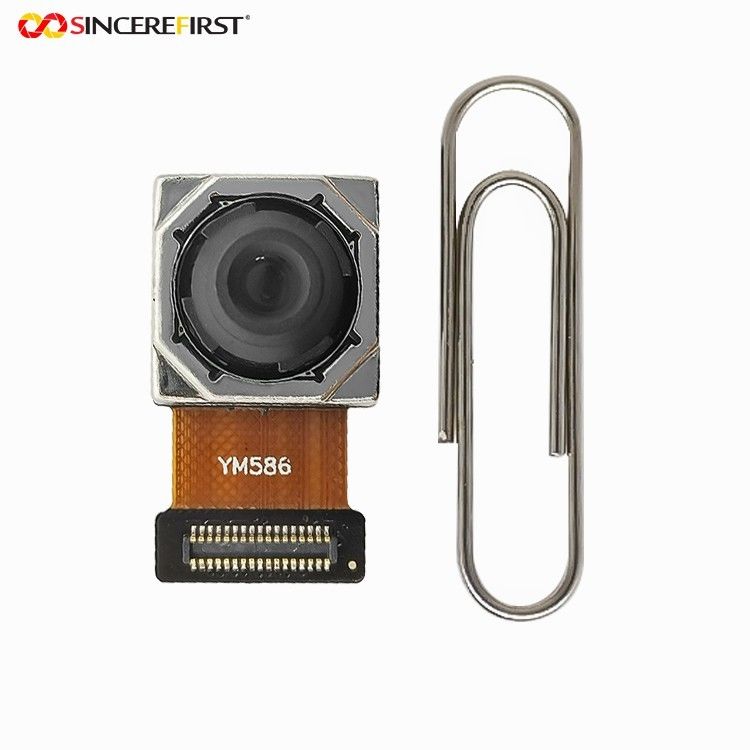

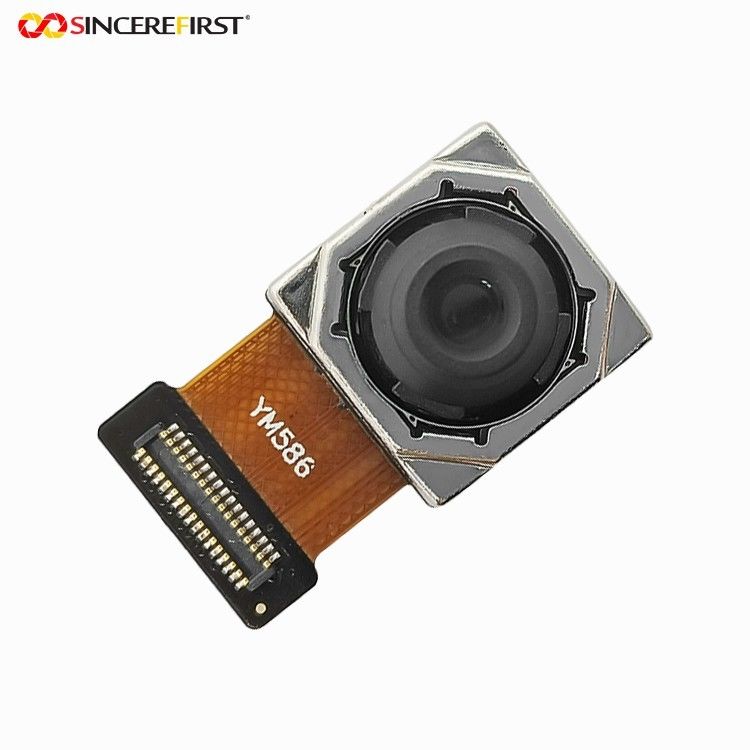

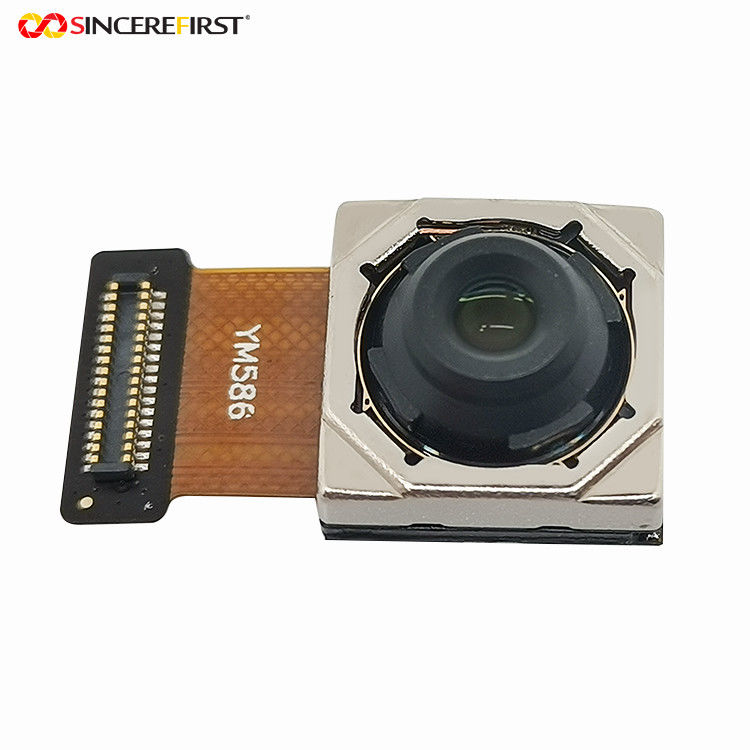

48mp Sony IMX586 CMOS Sensor Camera Module 8032×6238 Array Size
Specificaitons
| Sensor Type | IMX586 |
| Array Size | 8032×6248 |
| Sensor Size | 1/2 inch |
| View Angle | 85° |
| Distortion | ＜1.5% |
| Focusing Range | 8cm~Infinity |
| Pixel | 48 Mega Pixels Camera |
| Feature | Mipi Camera Module |
| Warranty | 10 Years |
| Sensor | CMOS |
Description
IMX586 is a diagonal 8.000 mm (Type 1/2.0) 48 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Sony's back-illuminated and stacked CMOS image sensor to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. It operates with five power supply voltages: analog 2.9 V and 1.8V, digital 1.1 V, P L L-PHY 1.1V and 1.8 V for input/output interface and achieves low power consumption. In addition, this product is designed for use in cellular phone and tablet PC. When using this for another application, Sony Semiconductor Solutions Corporation does not guarantee the quality and reliability of product. Therefore, don’t use this for applications other than cellular phone and tablet PC. Consult your Sony Semiconductor Solutions Corporation sales representative if you have any questions.
Features
◆Back-illuminated and stacked CMOS image sensor
◆Quad Bayer Coding color filter arrangement
◆Phase Detection Auto Focus (PDAF)
◆High Frame Rate 30fps@Full resolution (QBC Re-mosaic) / 30fps@QBC-HDR / 120fps@2x2 Adjacent Pixel Binning (16:9) / 240fps@2x2 Adjacent Pixel Binning V2H2(16:9)
◆High signal to noise ratio(SNR)
◆Dual sensor synchronization operation
◆Built-in 2D Dynamic Defect Pixel Correction
◆Lens Shading Correction (LSC)
◆Built-in temperature sensor
◆Output video format of RAW10/8, COMP8
◆QBC Re-mosaic function
◆QBC HDR function
◆Two PLLs for independent clock generation for pixel control and data output interface
◆CSI-2 serial data output MIPI D-PHY 2lane/4lane, Max. 2.5Gbps/lane, D-PHY spec. ver. 1.2 compliant MIPI C-PHY 1/2/3trio, Max 2.5Gsps/Trio, C-PHY spec ver. 1.0 compliant
◆2-wire serial communication (Supports I2C "Fast mode" and "Fast-mode Plus")
◆28K bit of OTP ROM for users
Applicaitons
Machine Vision
Intelligent Systems
Future Security
