| Sensor Type | IMX377 |
| Array Size | 4152×3062 |
| Focus | Fixed |
| Module Size | 38*38MM |
| Maximumm image transfer rate | 30 FPS |
| Interface | USB2.0 |
| Application | Future Security |
| Warranty | 10 Years |
| Frame Rate | 30FPS |
| Function | Night Vision |
The IMX377CQT is a diagonal 7.81 mm (Type 1/2.3) CMOS image sensor with a color square pixel array and approximately 12.35 M effective pixels. 12-bit digital output makes it possible to output the signals of approximately 12.35 M effective pixels with high definition for shooting still pictures. It also operates with three power supply voltages : analog 2.8V, digital 1.2 V, and 1.8 V for I/O interface and achieves low power consumption. Furthermore, it realizes 12-bit digital output for shooting high-speed and high-definition moving pictures by horizontal and vertical addition and subsampling. Realizing high-sensitivity, low dark current, this sensor also has an electronic shutter function with variable integration time. In addition, this product is designed for use in consumer use digital still camera and consumer use camcorder. When using this for another application, Sony does not guarantee the quality and reliability of the product. Therefore, don't use this for applications other than consumer use digital still camera and consumer use camcorder. In addition, individual specification change cannot be supported because this is a standard product. Consult your Sony sales representative if you have any questions.
◆CMOS active pixel type pixels
◆Input clock frequency 6 to 27 MHz
◆MIPI Specifications (CSI-2 high-speed serial interface)
◆All-pixel scan mode
Horizontal/vertical 2/2-line binning mode
Horizontal/vertical 3/3-line binning mode
Vertical 1/3 subsampling horizontal 3 binning mode
ncereF
Vertical 1/3 subsampling horizontal 2/4 subsampling mode
Vertical 2/9 subsampling binning horizontal 3 binning mode
Vertical 2/9 subsampling binning horizontal 3 binning mode low power consumption
Vertical 2/17 subsampling binning horizontal 3 binning mode
◆High-sensitivity, low dark current, no smear, excellent anti-blooming characteristics
◆Vertical and horizontal arbitrary cropping function
◆Variable-speed shutter function (minimum unit: 1 horizontal period)
◆Low power consumption
◆H driver,V driver and IC communication circuit on chip
◆CDS/PGA on chip. Gain +27 dB (step pitch 0.1dB)
◆10-bit/12-bit A/D conversion on chip
◆R, G, B primary color mosaic filters on chip
◆All-pixel simultaneous reset supported
◆98-pin high-precision ceramic package
We can customize FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Imaging Technology Solutions
Optronics Solutions
Embedded Systems solutions

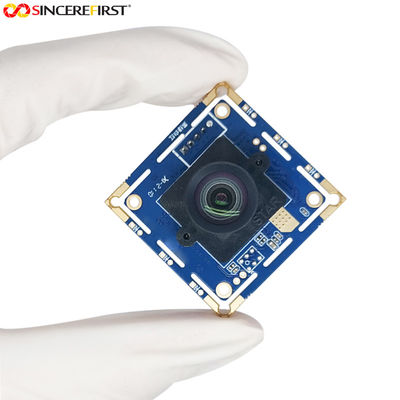

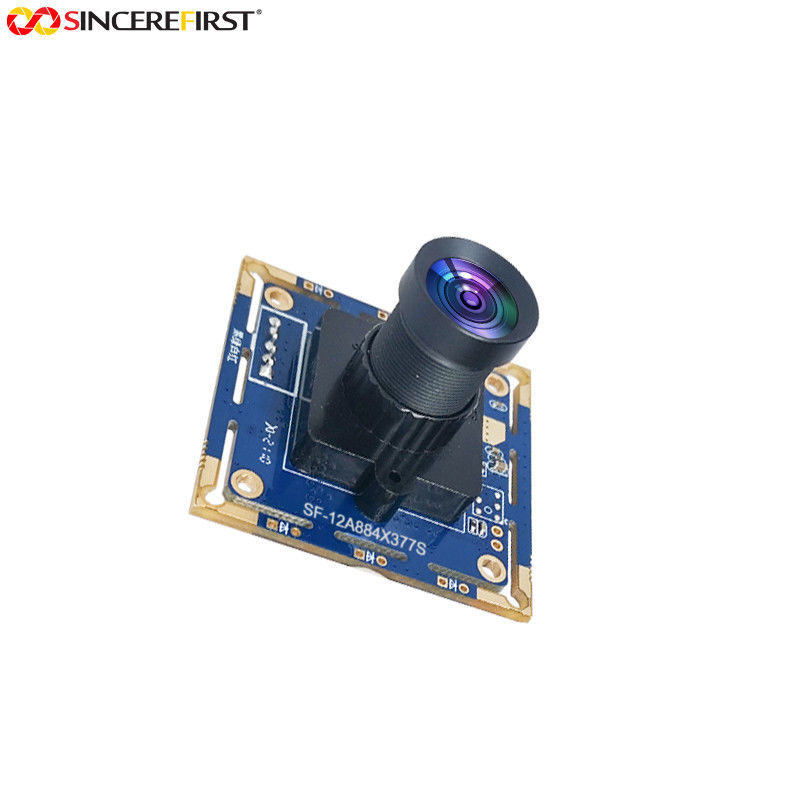

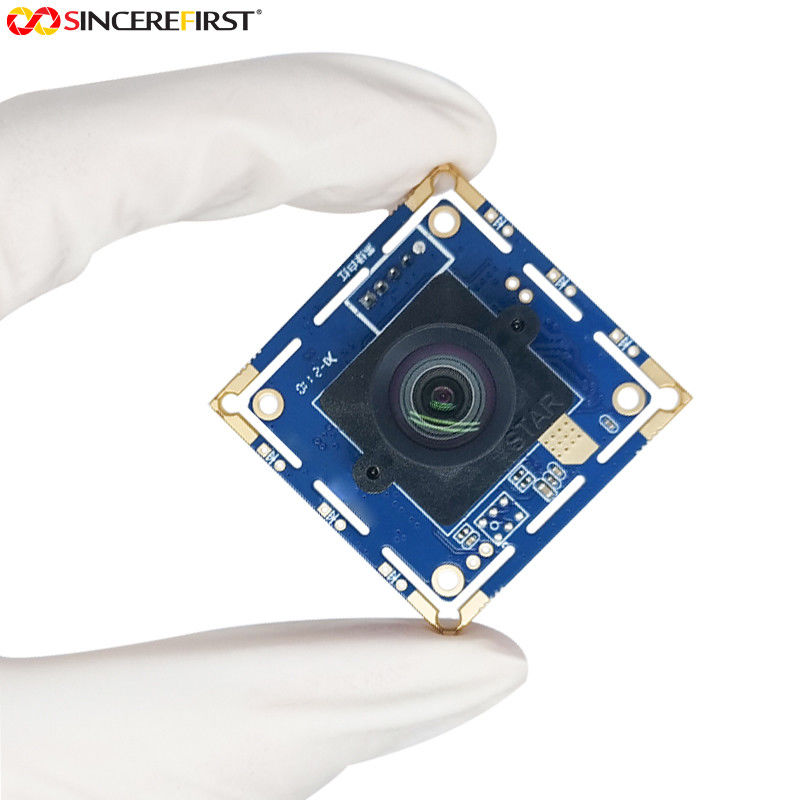

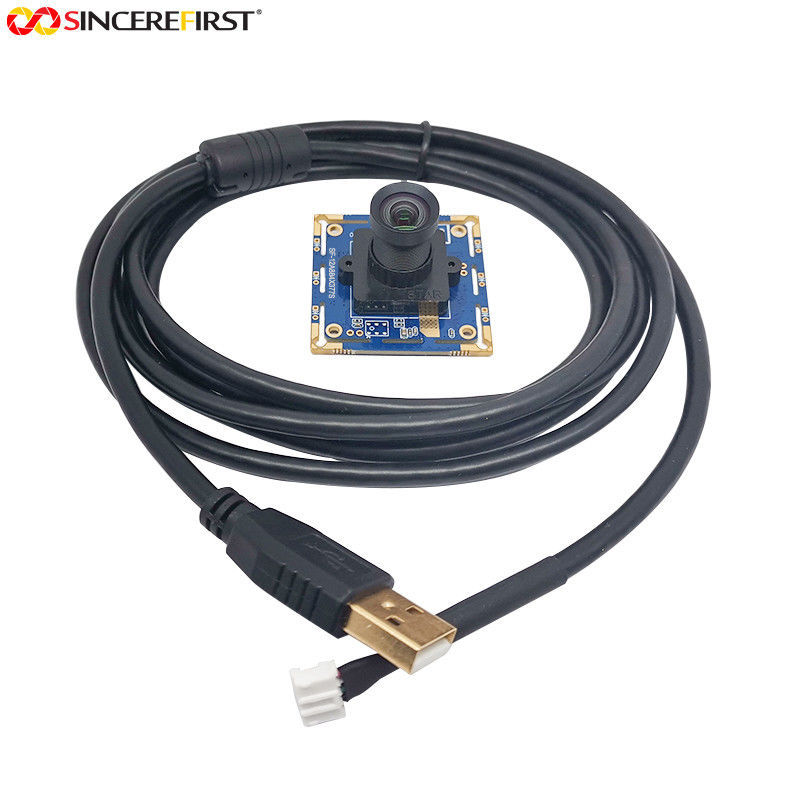

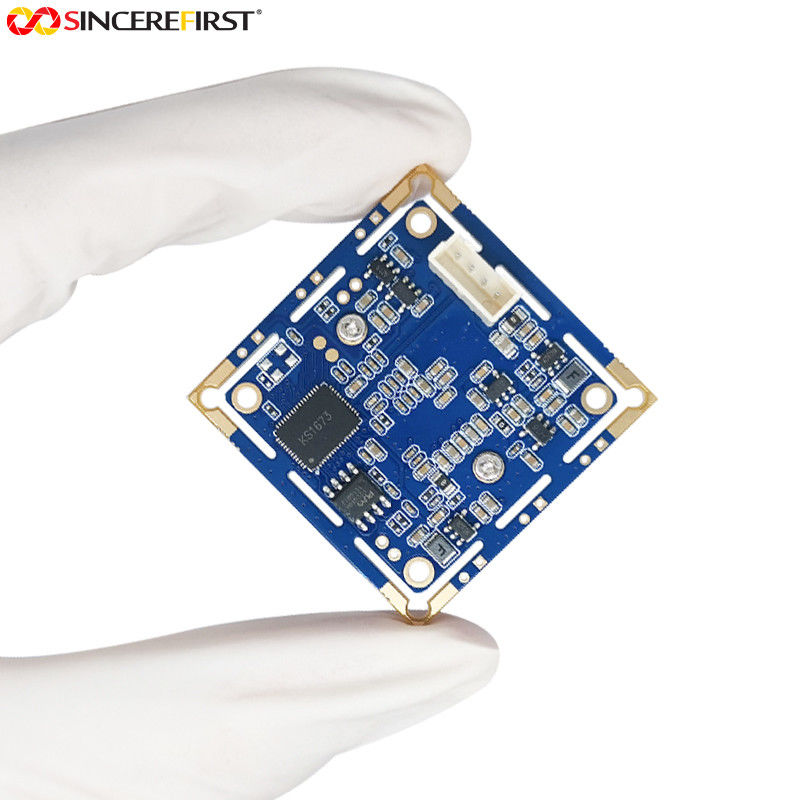

Details Pictures:
