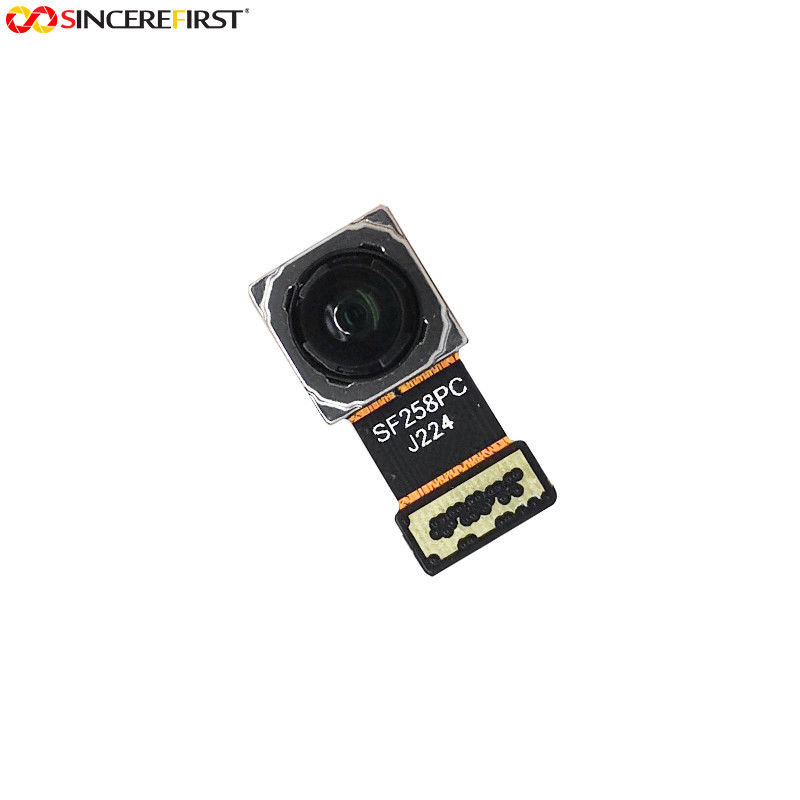

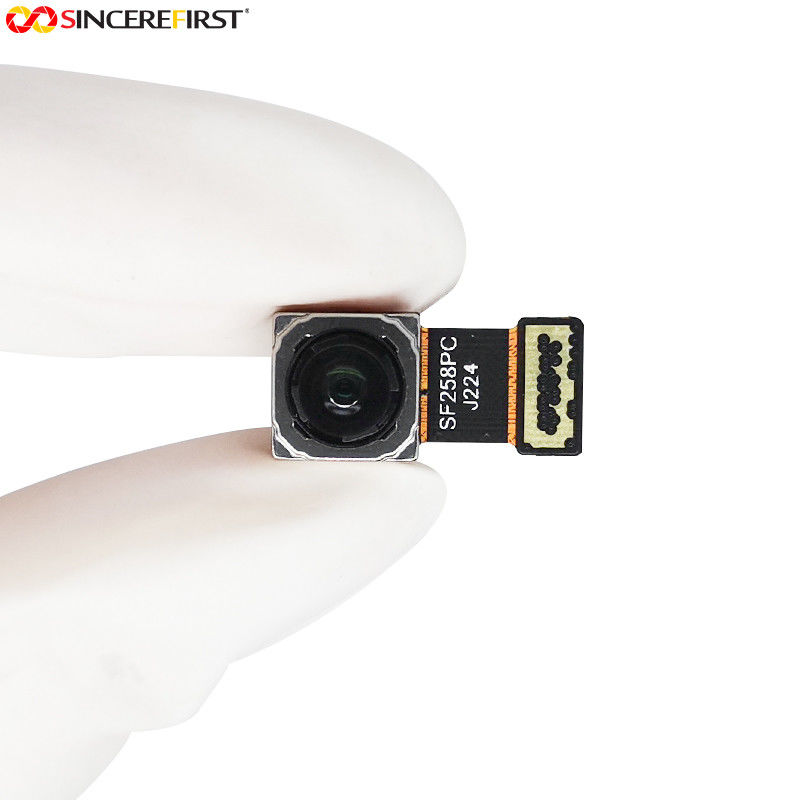

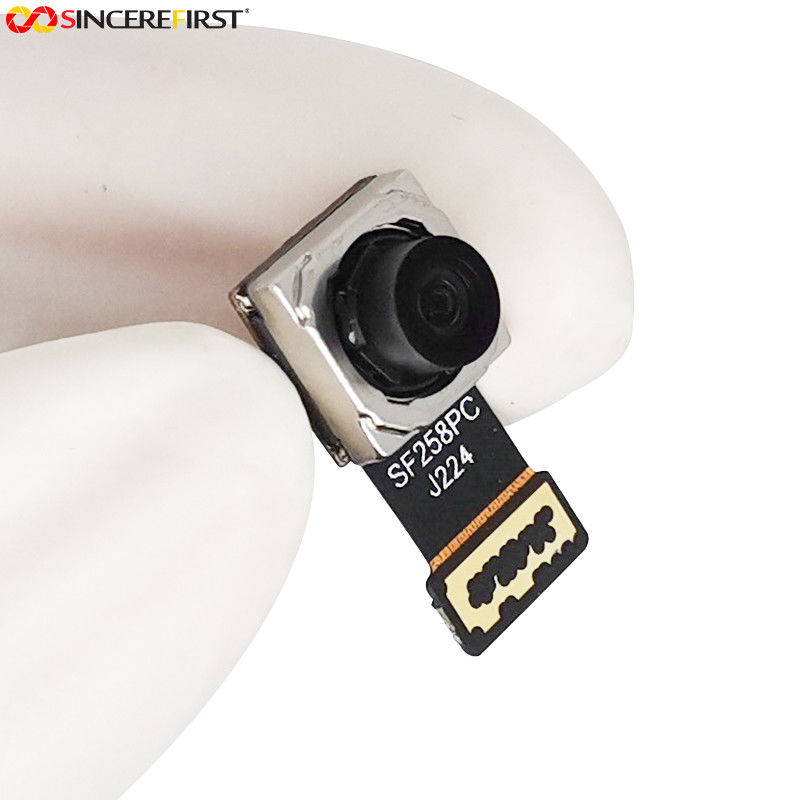

13mp Wide Angle Sony IMX258 Camera Module Auto Focus For Machine Vision

13mp Wide Angle Sony IMX258 Camera Module Auto Focus For Machine Vision

Specificaitons

Description

IMX258-0AMH5-C is a diagonal 5.867mm (Type 1/3.06) 13 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. By introducing spatially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.7 V, digital 1.2 V and 1.8 V for input/output interface and achieves low power consumption. In addition, this product is designed for use in cellular phone and tablet pc. When using this for another application, Sony does not guarantee the quality and reliability of product. Therefore, don’t use this for applications other than cellular phone and tablet pc. Consult your Sony sales representative if you have any questions.

Features

◆Back-illuminated and stacked CMOS image sensor Exmor RSTM

◆High Dynamic Range (HDR) mode with raw data output.

◆High signal to noise ratio (SNR).

◆Full resolution @30fps (Normal / HDR). 4K2K @30fps (Normal / HDR) 1080p @60fps (Normal )

◆Output video format of RAW10/8.

◆Pixel binning readout and V sub-sampling function.

◆Independent flipping and mirroring.

◆CSI-2 serial data output (MIPI 2lane/4lane, Max. 1.3Gbps/lane, D-PHY spec. ver. 1.1 compliant)

◆2-wire serial communication.

◆Two PLLs for independent clock generation for pixel control and data output interface.

◆Dynamic Defect Pixel Correction.

◆Fast mode transition. (on the fly)

◆Dual sensor synchronization operation.

◆4K bit of OTP ROM for users.

◆Built-in temperature sensor

◆SCCB control interface for register programming

Customized Service

We can customize FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, firmware, etc.

Why Choose US?

Applicaitons

AI

Kiosk

Machine Vision

Document scanner

Inspection tester

Video Conference System

Customized Process

1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
