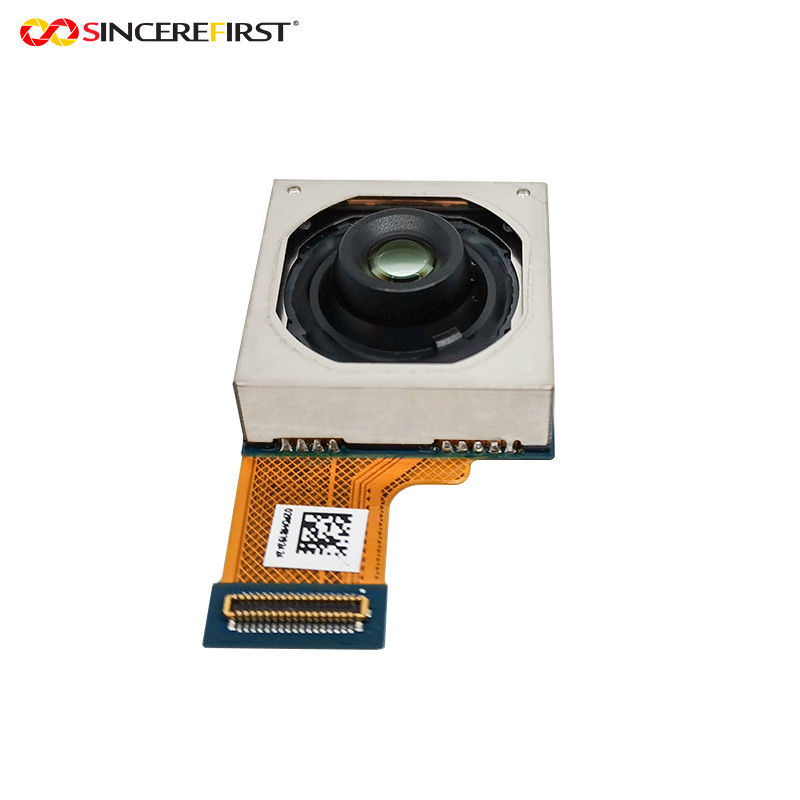

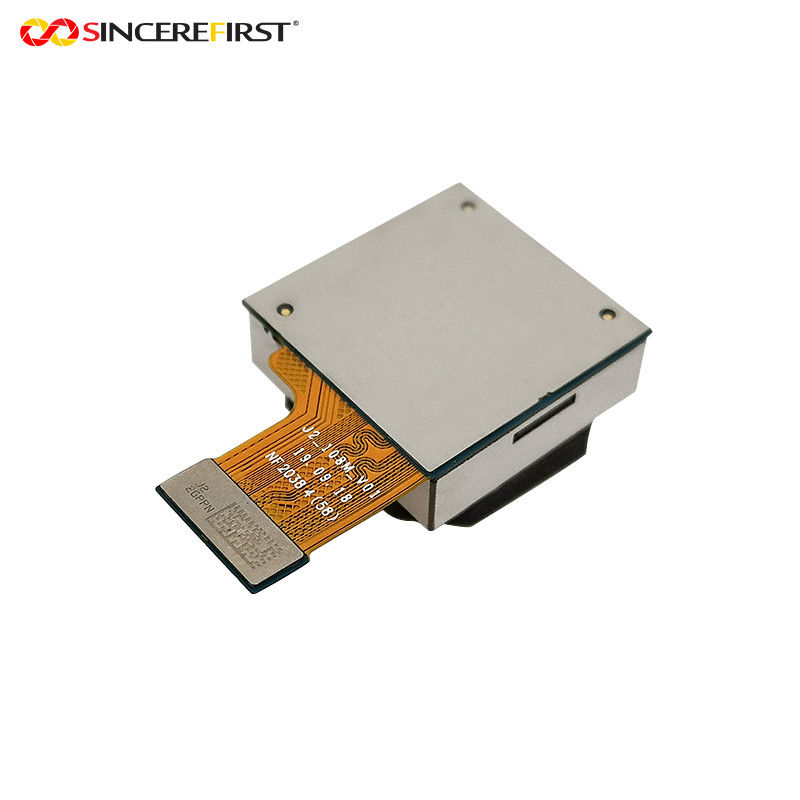

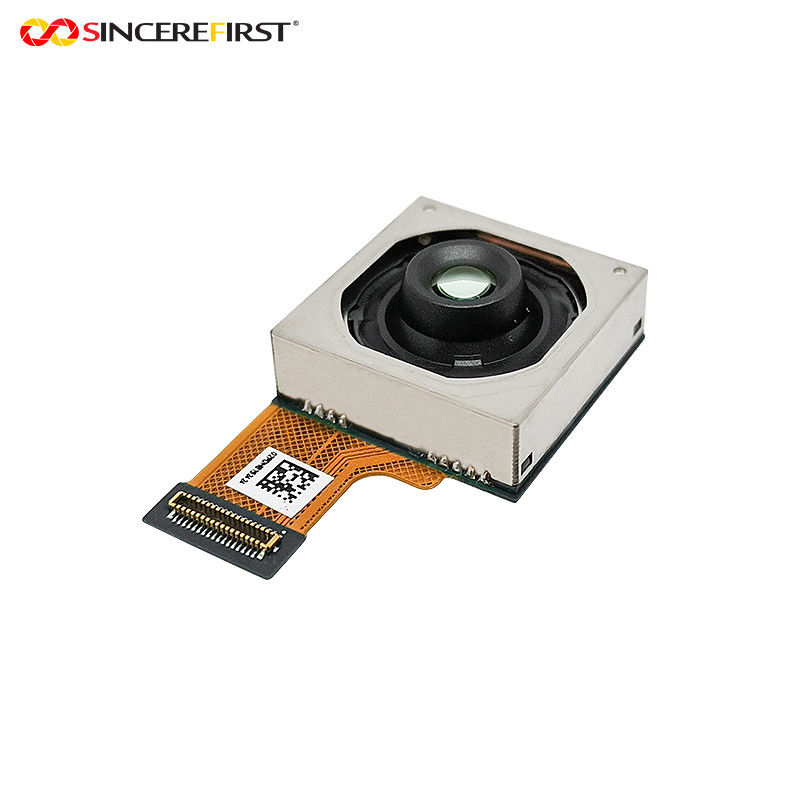

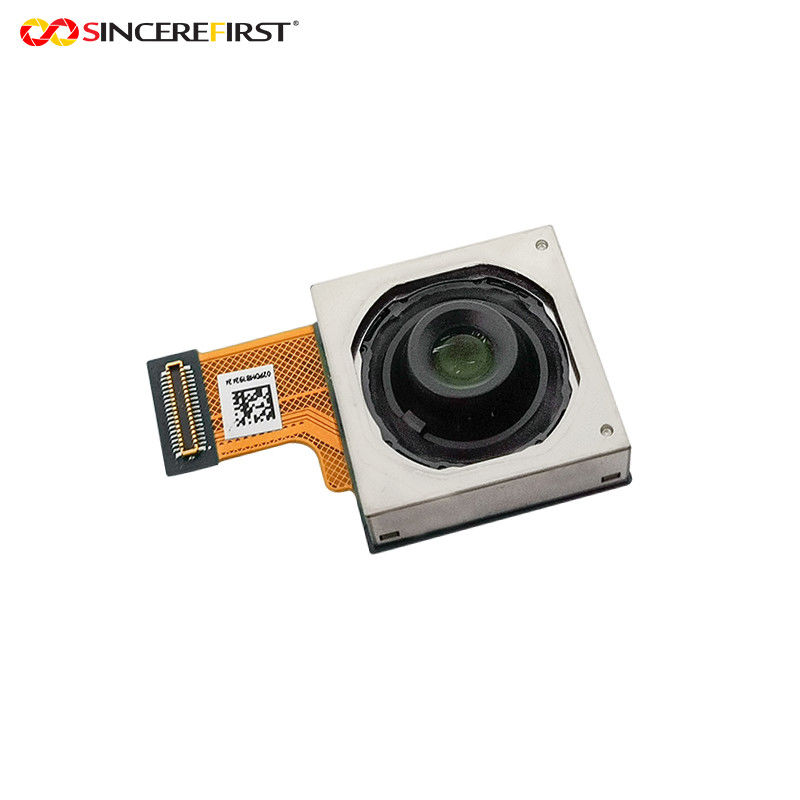

High Pixel 108MP Hd Ois Camera Module S5KHMXSP03 DFOV86 Lens
Specificaitons
| Model No. | SF-MMOIS-S5KHMV |
| Sensor | S5KHMXSP03 |
| Pixel | 108MP |
| Lens | 1/1.33" |
| view Angle | DFOV86 |
| Focusing Range | 10cm to Infinity |
| Module Size | 17.8*17.8mm |
| Focus | Auto Focus |
| Warranty | 10 Years |
| Replacement | 1 Years |
Description
S5KHMXSP03 is a highly integrated 108 MP camera chip with a CMOS Image Sensor (CIS), image correction functionality and serial transmission capability using 4-lane MIPI. It is designed for fast and low-power operation to deliver full resolution capture at 10 frames per second (fps) and full field of view (4:3) 27 MP video at 30 fps. S5KHMXSP03 is fabricated by the Samsung CMOS image sensor process, which realizes a high-efficiency and low-power photo sensor. The sensor consists of 12032x9024 effective pixels that meets the 1/1.33-inch optical
format.
Features
Pixel: 108MP
Sensor Size: 1/1.33"
Pinout: 34pin
Active resolution: 12048 (H) × 9040 (V)
Image sensor: CMOS
Color filter: 2x2 Tetra-Cell RGB Bayer pattern
Shutter type: Electronic rolling shutter and global reset
Max. normal frame rate: 10 fps @ Full
Max. video frame rate: 148 fps @ 1080p
Data rate: CPHY v1.1 3Gsps 3lane (9Gsps) / DPHY v2.0 4.5Gbps 4lane (18Gbps)
ADC accuracy: 10 bits
Dual sensor synchroniz
Interface type: MIPI
Night Vision, Face Recognition, Low Power
Fine interface frequency control using additional dedicated for integration flexibility
Advantage
High Pixel 108MP
Online technical support, Customized logo, OEM, ODM, Software
10/100 Levels Dust Free Workshop
CE, FCC, RoHS, Reach etc. Certifications
Support software and development platform: Arduino, ESP32, Raspberry Pi, NVIDIA, Ambarella, RK(Rockchip), MTK(MediaTek Inc.), Qualcomm, ATI
Applicaitons
Camera Module Customized Solutions
Imaging And Vision Solutions
Integrated Complex And Customized Technology
Machine Vision
Intelligent Systems
Future Security
Optical Technology Solutions
Our products are sold all over the world, you can rest assured.
