| Model No. | SF-C0QS01 IMX766 |
| Sensor | Sony IMX766 |
| Pixel | 50MP |
| Focusing Range | 10cm-Infinity |
| Focal Length | 2.92mm |
| Customized Support | OEM, ODM |
| Product Type | MIPI Camera Module |
| Customized Support | OEM, ODM |
| Warranty | 10 Years |
| Replacement | 1 Year |
The 50MP Sony IMX766 comes with a 1/1.56-inch sensor size and supports OIS. It adopts Sony's back-illuminated and stacked CMOS image sensor to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. It operates with four power supply voltages: analog 2.8V and 1.8V, digital 1.1 V and 1.8 V for input/output interface and achieves low power consumption.
The IMX766 is a 50MP resolution image sensor with a sensor size of 1/1.56” and a pixel size of 1.0μm. The large sensor size combined with increased pixel size offers higher light intake compared to previous Sony sensors.
The sensor is based on Sony’s 2x2 On-Chip Lens (OCL) solution that utilizes a condenser lens on top of four adjacent pixels in a Quad Bayer color filter array. Such a mechanism allows detecting phase differences across all pixels and enables high accuracy for small objects. This also boosts focus performance in low-light conditions.
CMOS Image Sensor
Image Size: Diagonal 10.240 mm (Type 1/1.56)
Number of effective pixels: 8224 (H) × 6224 (V) approx. 51.1 M pixels
Number of active pixels: 8192 (H) × 6144 (V) approx. 50.3 M pixels
Chip size: 9.214 mm (H) × 7.270 mm (V)
Unit cell size: 1.00 μm (H) × 1.00 μm (V)
Substrate material: Silicon
We can customize FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Camera Solutions
Infrared Imagers For Industry
Drone Camera Module
Intelligent Systems, etc.

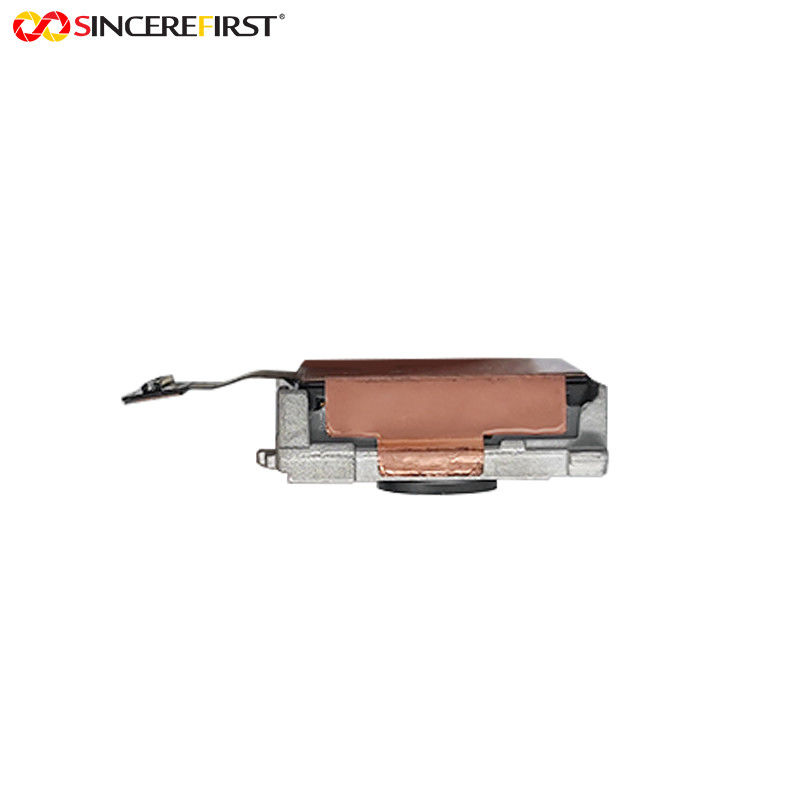

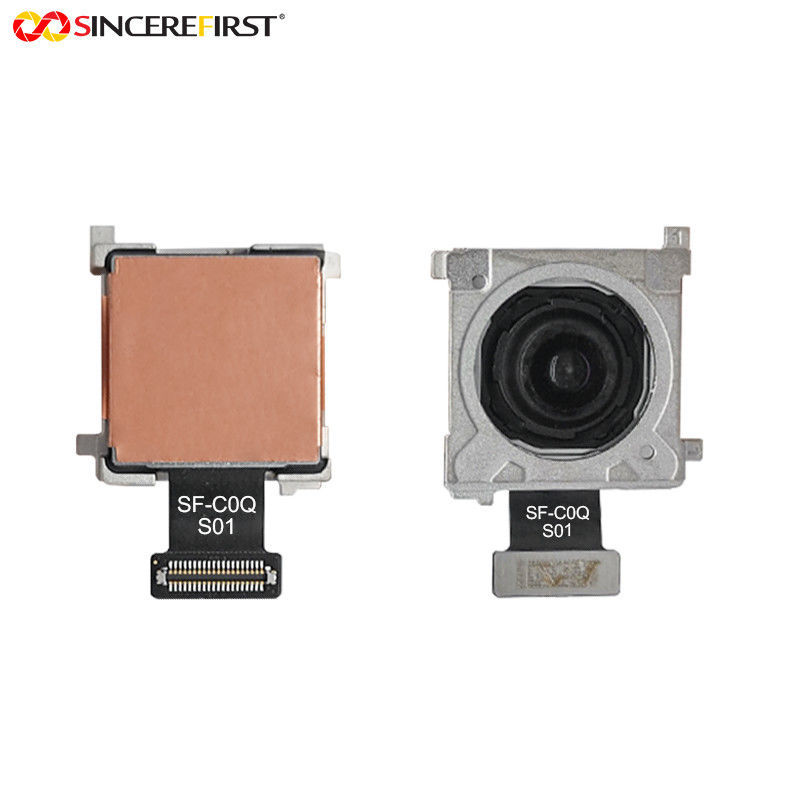

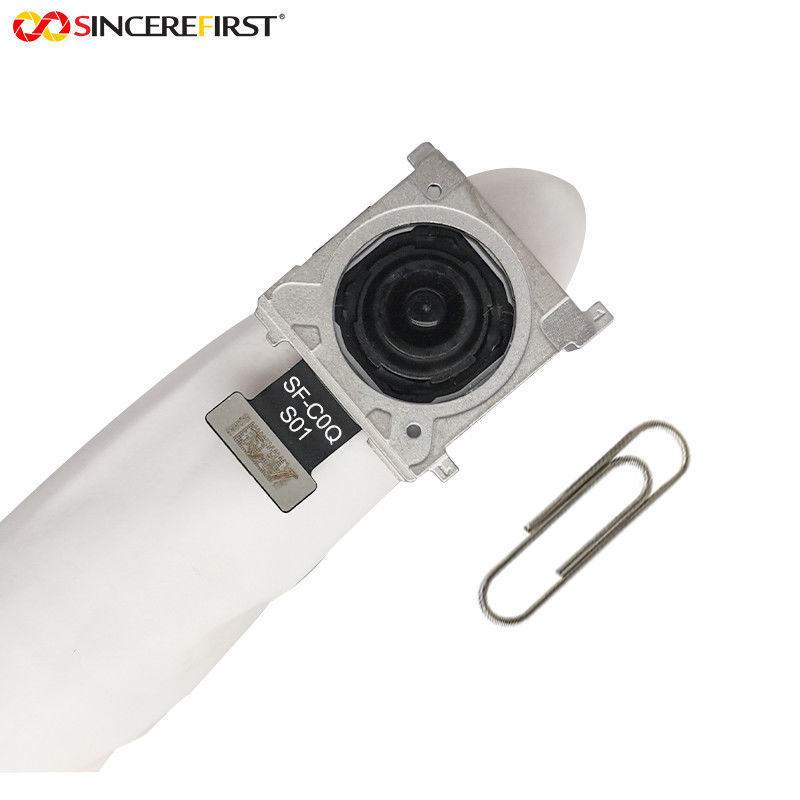

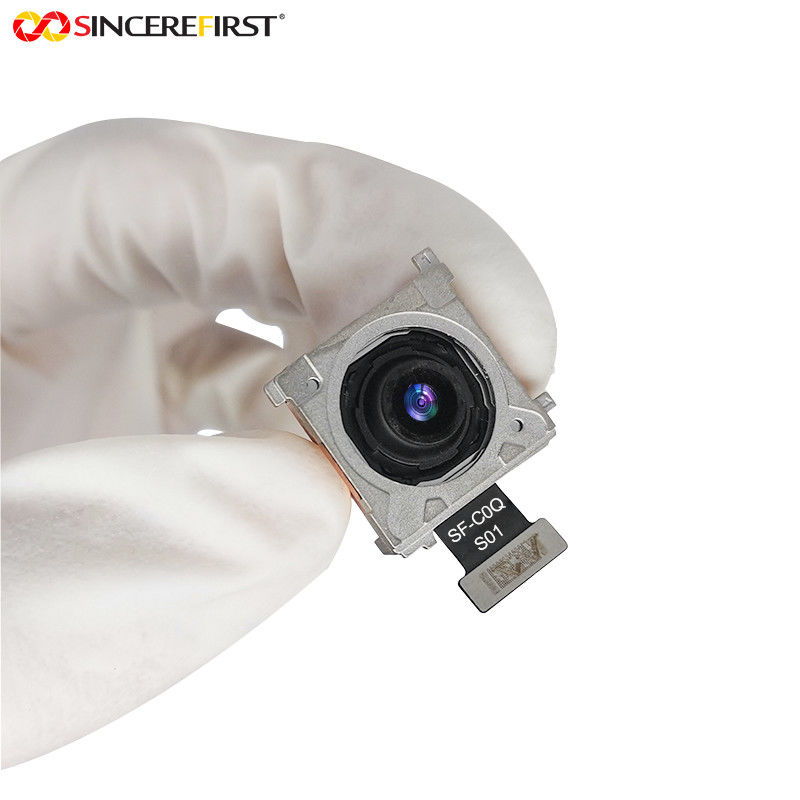

Details Pictures:
Our products are sold all over the world, you can rest assured.
