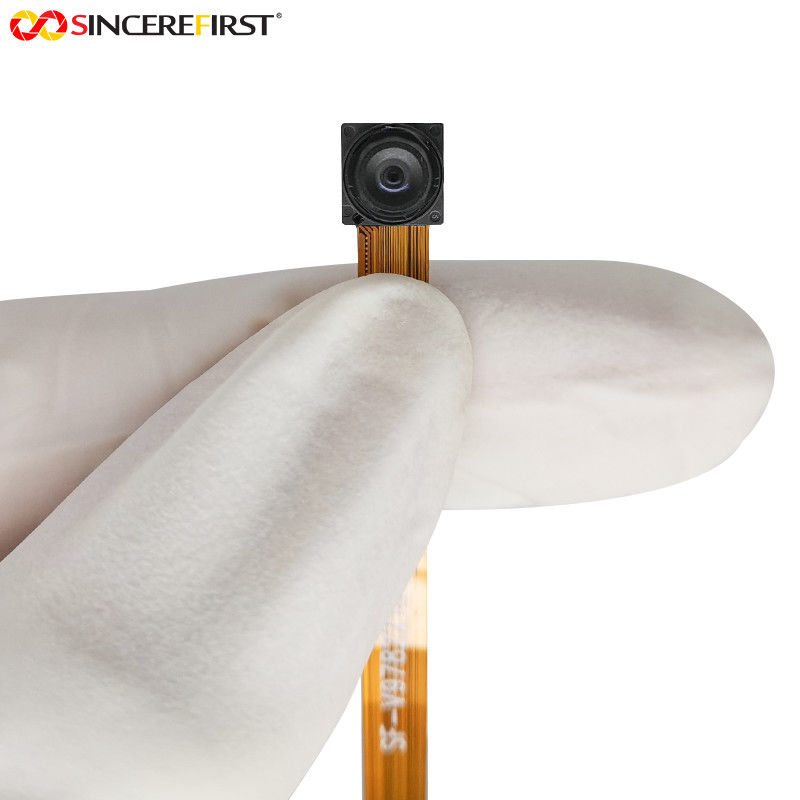

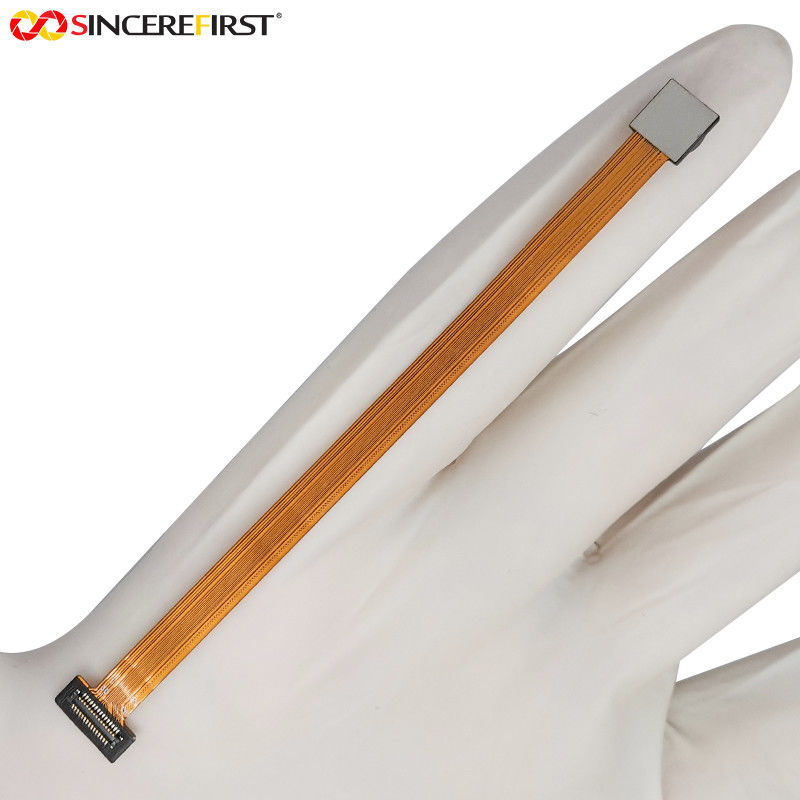

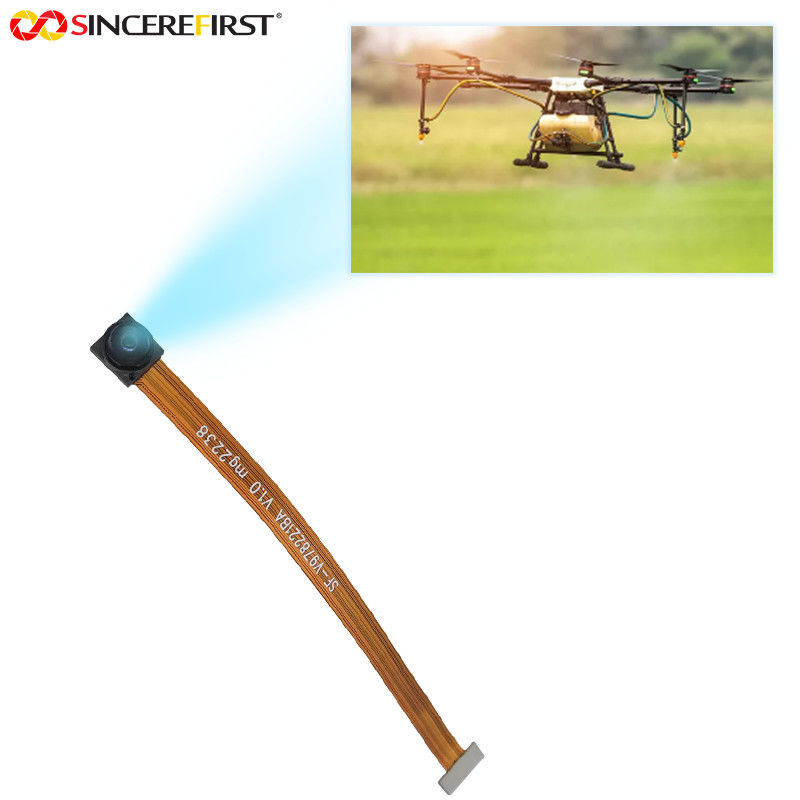

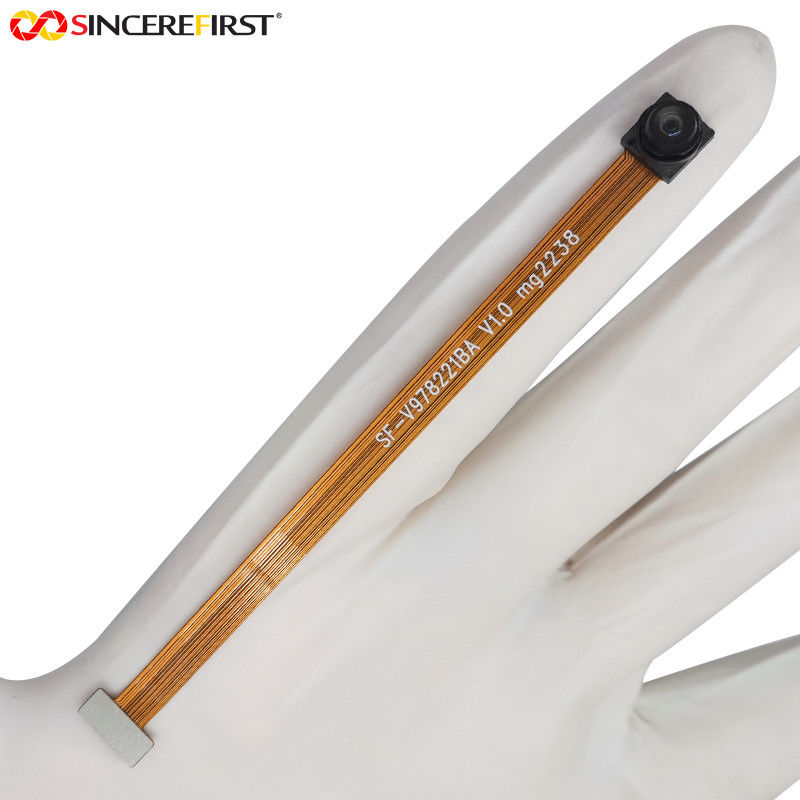

1mp OV9782 Global Shutter Color Wide Angle DVP MIPI Camera Module
Specificaitons
| Image Sensor | OV9782 |
| Optical Size | Type 1/4" |
| Pixel Size | 3μm×3μm |
| Shutter Type | Global Shutter |
| Color Filter Array | RGB |
| Max Sensor Resolution | 1280 x 800 |
| Focus Type | Manual |
| Focus | 30cm~INF |
| FOV | 120° |
| F Number | 2.2 |
Description
OmniVision’s OV9782 is a 1MP (1280×800) global shutter color image sensor. Arducam OV9782 camera module is a color camera option for OAK Series 2 Wide FOV cameras such as OAK-D W, OAK-D W PoE as the 120° DFOV color camera.
It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.
Features
◆3 um x3um pixel with OmniPixel"3-GStechnology
◆automatic black level calibration(ABLC)
◆programmable controls for: frame rate, mirror and flip, cropping, windowing
◆support output formats:8/10-bit RAW
◆fast mode switching
◆supports 2x2 monochrome binning
◆two-lane MIPl serial output interface
◆DVP parallel output interface
◆supports horizontal and vertical 2:1 and 4:1 monochrome subsampling
◆support for image sizes: 1280x800, 1280x720, 640x480, 640x400
◆embedded 256 bits ofone-time programmable(OTP)memory for
part identification
◆two on-chip phase lock loops(PLLs)
◆LED PWM
◆built-in strobe control
Applicaitons
Iris Recognition Technology
Iris Solutions
Face Recognition
VR High End Camera Solutions
Smart Home Solutions
Intelligent Hardware Solutions
