Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate

Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate

Products - CMOS Camera Module
  • Highlight

    CMOS Camera Module Lens Hi843

    ,

    8 Mpixel CMOS Camera Module

    ,

    dual lens camera module 30 Fps

  • Resolution
    8Mpixel(3280 × 2464）
  • Optical Format
    1/4"
  • Interface
    MIPI 4-Lane
  • Active Array Size
    3673.60um(H) X 2759.68um(V)
  • Sensor
    HI843-PLCC
  • Focus Range
    10cm To Infinity
  • Focal Length
    2.92mm
  • Fov(D)
    75.6°
  • TV Distortion
    ＜1%
  • Image Sensor
    CMOS Image Sensor
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF8H843A4
  • Minimum Order Quantity
    5 pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate

  • Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate
  • Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate
  • Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate
  • Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate
  • Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate
Get Price Contact Now

Low Power Dual Lens Hi843 8mp 1/4" Cmos Image Sensor Camera Module

Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate 0

Specificaitons

Sensor Type ‎Hi843
Sensor CMOS Image Sensor
Frame Rate 30fps
Interface MIPI 4-Lane
OTP 8K Byte
Focal Length 2.92mm
Focus Range 10cm to Infinity
Optical Format 1/4"
TV Distortion ＜1%
Applications Intelligent Systems





Description

The HI-843B is an 8MP camera module with a MIPI interface that incorporates a Hynix HI-843B CMOS image sensor. This sensor is a high-quality 8-megapixel single-chip CMOS image sensor that is optimized for mobile phone camera applications and digital still camera products. The HI-843B CMOS Image Sensor (CIS) is advanced, diverse, and optimized to the trend of slimmer smartphones with greater functionality.



Features

◆Advanced 1.12μm BSI 8M pixel image sensor generating 30fps full resolution at low power consumption
◆Compact Form Factor for Front Camera
◆Fit into 6.5mm X 6.5mm camera module size (Fixed Focus)
◆Low Power Consumption
◆180mW @ 30fps full-resolution
◆Competitive Image Quality
◆Advanced optical path structure to reduce X-talk and temporal color noise
◆High Frame Rate
◆8M(3264x2448) 30fps over 2 or 4 lane MIPI for zero shutter lag
◆Large OTP Memory
◆8K Byte OTP Memory for customer use(storing module calibration data such as LSC and AWB)
◆2D-LSC
◆Built-in 2D-LSC for per-module LSC calibration
◆Frame Synchronization
◆FSYNC for dual camera application



Customized Service:

We can customize FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, firmware, etc.

Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate 1

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.



Why Choose us:

Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate 2



Applicaitons

Camera module for Imaging and vision solutions
Camera module for Integrated complex and customized technology
Camera module for Machine vision
Camera module for Intelligent Systems
Camera module for Future Security



About US:

Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate 3



Cooperative Brands & Customers:



Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate 4

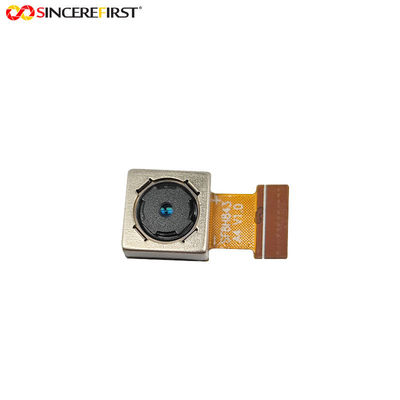

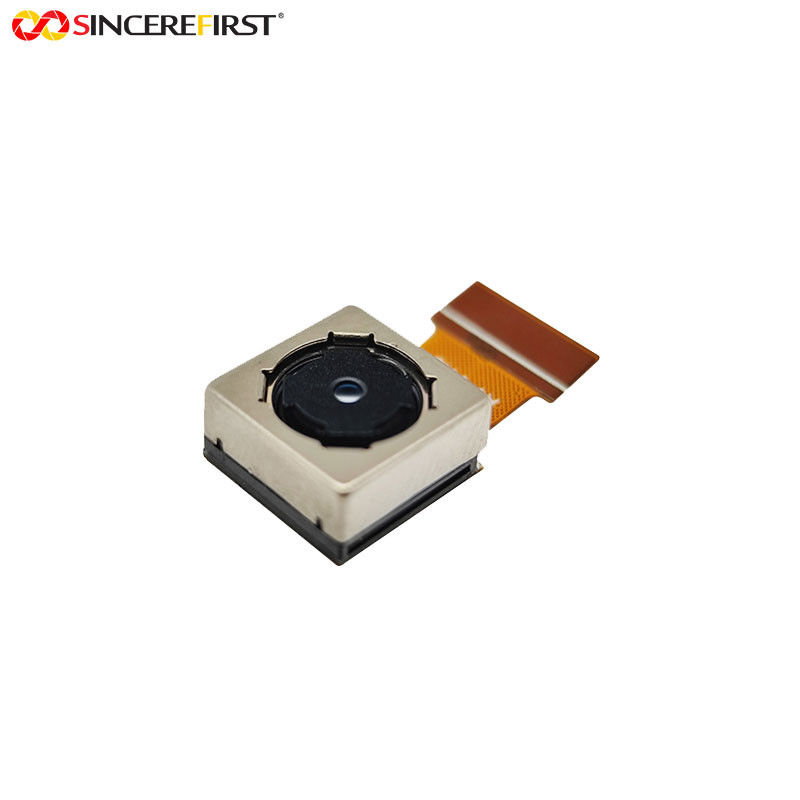

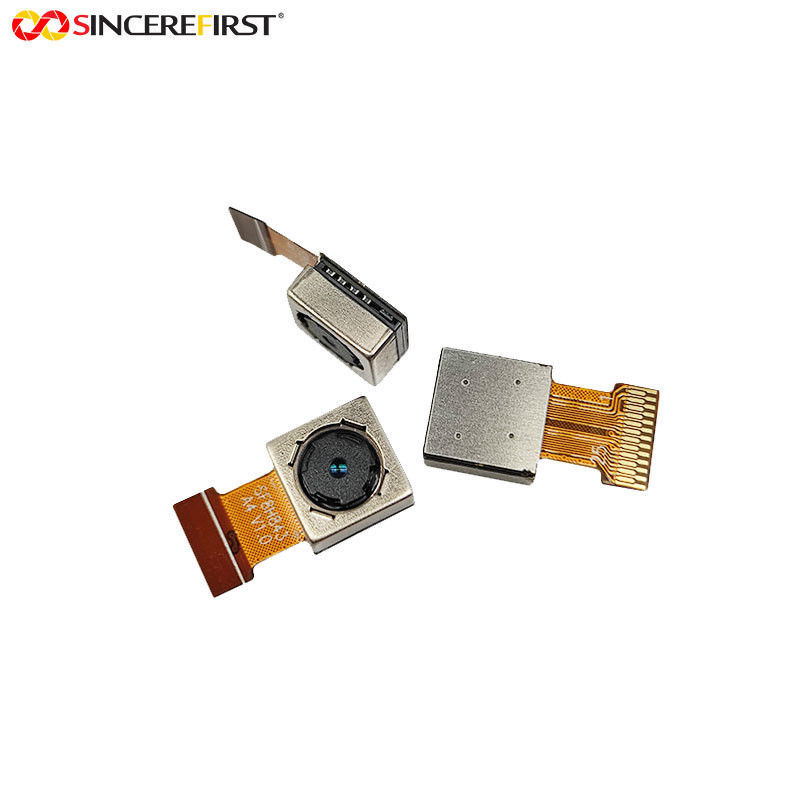

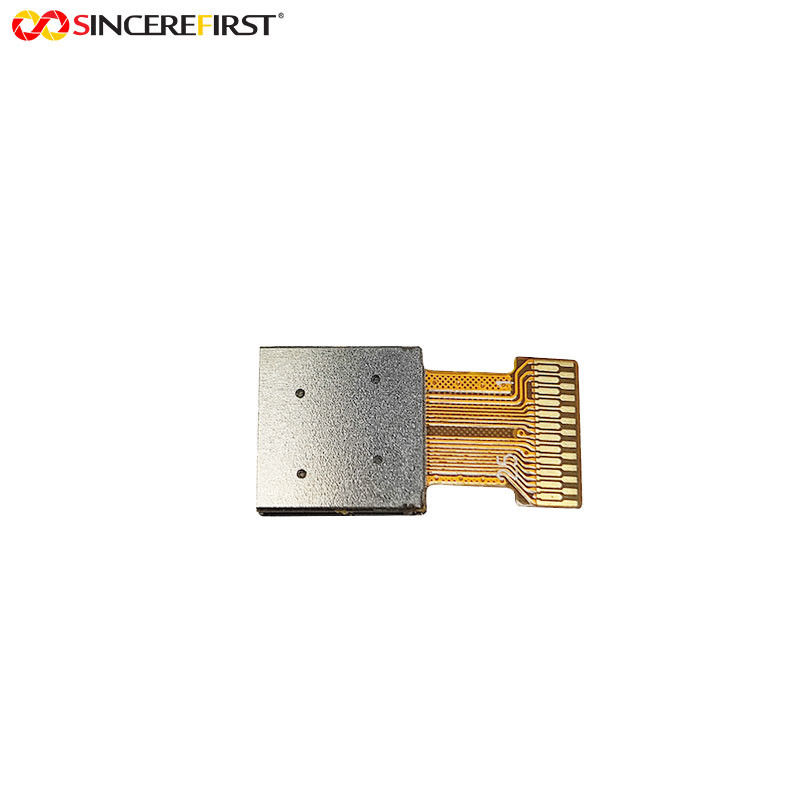

Details Pictures:



Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate 5Low Power 8 Mpixel CMOS Camera Module Dual Lens Hi843 30 fps Frame Rate 6
