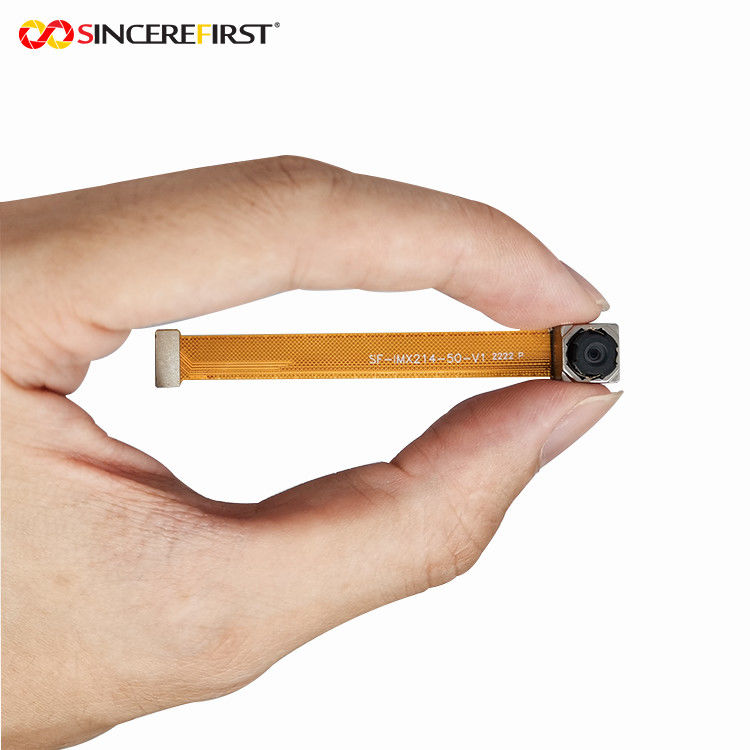

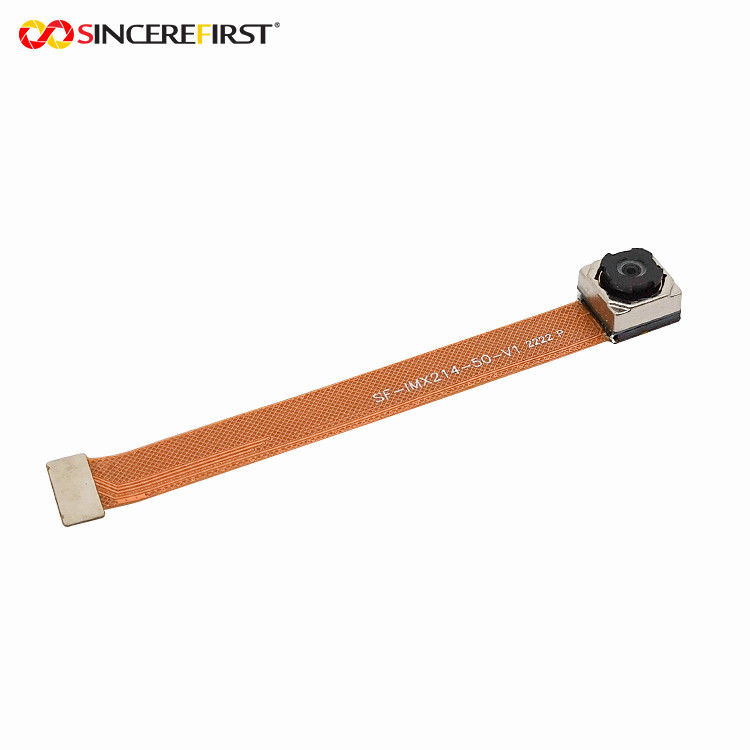

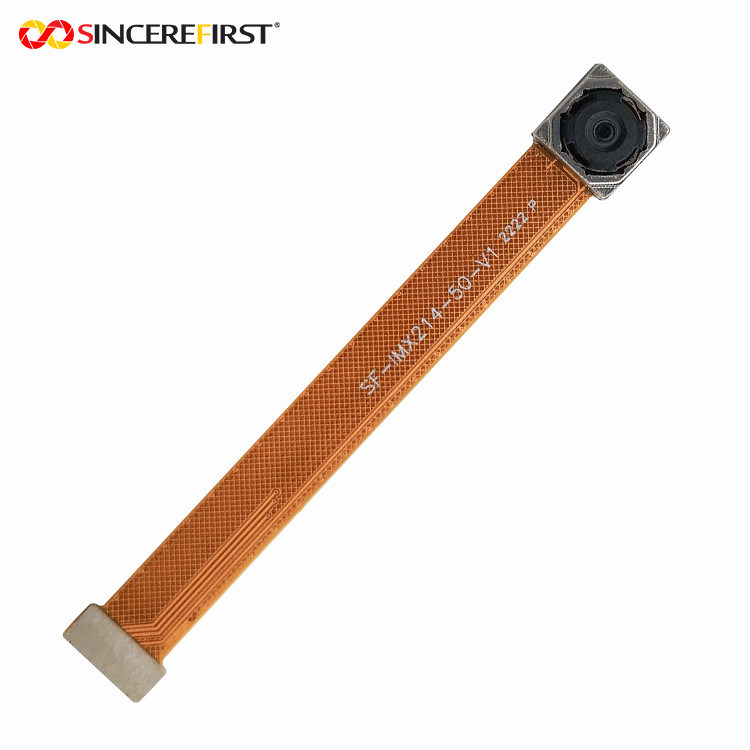

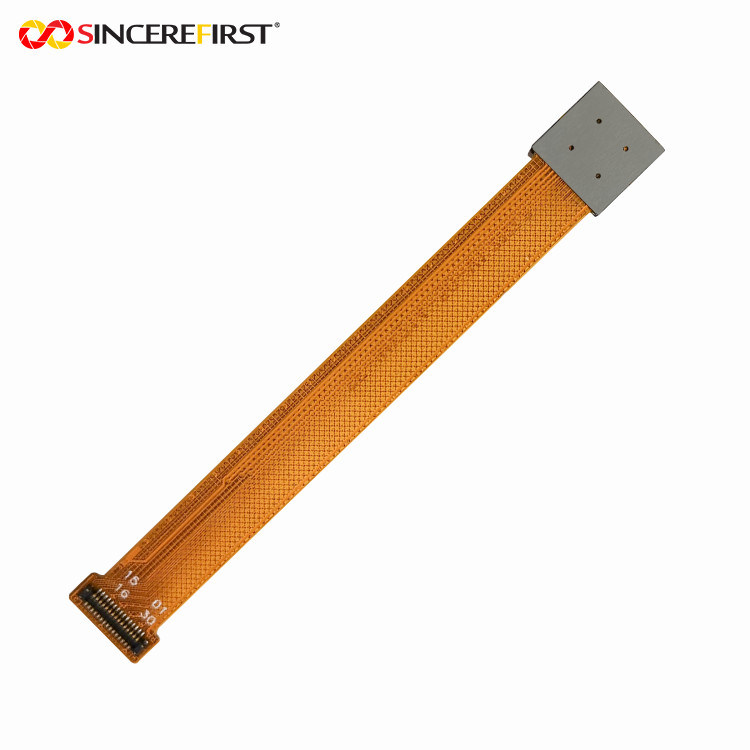

13mp Wide Angle Auto Focus Sony IMX214 Cmos Sensor Camera Module
Specificaitons
| Sensor | IMX214 |
| Optical Size | Type 1/3.06" |
| Pixel Size | 1.12μm×1.12μm |
| Shutter Type | Rolling Shutter |
| Max Sensor Resolution | 4208 x 3120 |
| Color Filter Array | RGB Color |
| Pixel | 13mp |
| Wide Angle | 137° |
| TV Distortion | ＜19.35% |
| Frame Rate | 30fps |
Description
The IMX214 is a diagonal 5.867mm(Type 1/3.06) 13 Mega-pixel CMOS active pixel type stacked MIPI interface image sensor camera module with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed.
By introducing spacially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.7 V, digital 1.0V and 1.8 V for input/output interface and achieves low power consumption.
Features
◆rolling shutter color image sensor
◆4224 (H) ×3200(V), 13.51 Megapixel
◆High Resolution: 13MP
◆Frame Rate: up to 35fps at Full HD
◆Wide Angle: 137° (DFoV)
◆High quality image, high sensitivity
Applicaitons
Can be used for high-technology, high-end applications, such as cellphones, tablets, IOT, Robotics, Drone, Medical Machine, 3D printing, laser and so on.
