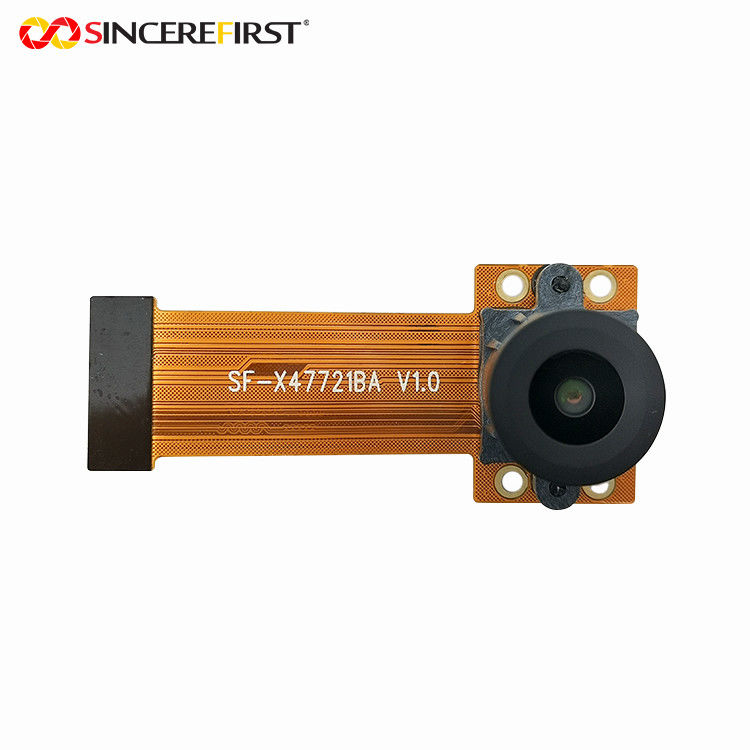

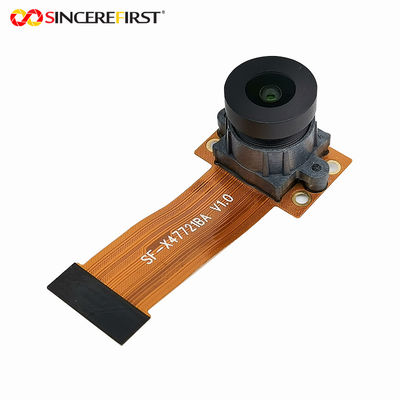

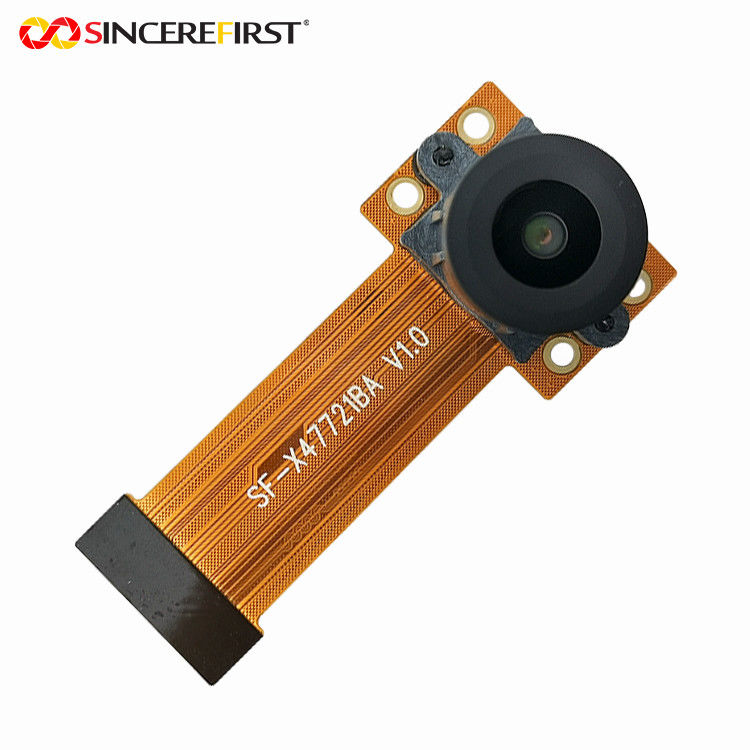

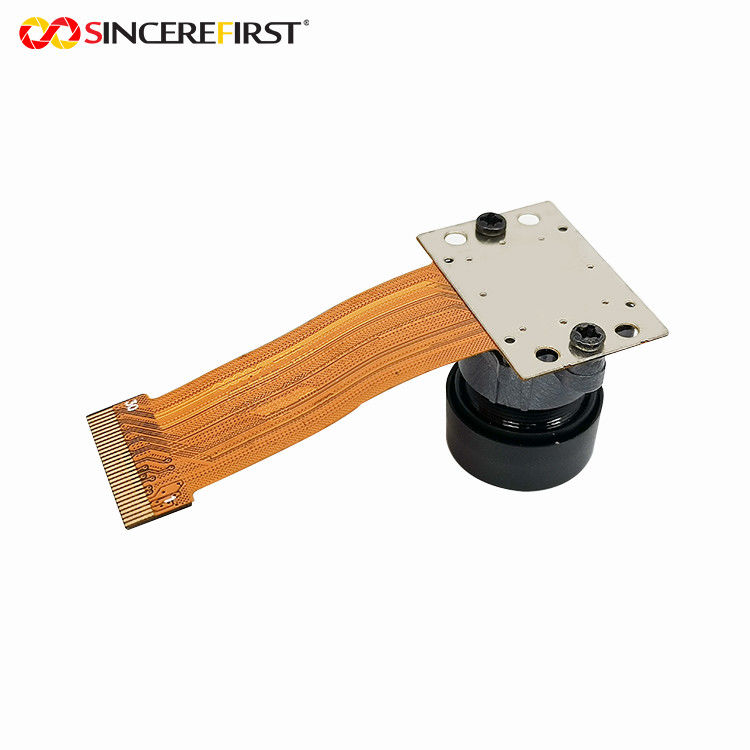

Arducum 12mp Sony IMX477 Sensor HFOV105 Raspberry Pi Cmos Camera Module
Specificaitons
| Sensor | IMX477 |
| Focus Type | Fixed Focus |
| Pixel | 12MP |
| Focusing Range | 1m~Infinity |
| View Angle | 105° |
| Futures | High Dynamic Range (Hdr), Low-Light Sensitivity, High-Speed |
| Interface | MIPI |
| Frame Rates | 60fps |
| Shutter Type | Rolling Shutter |
| Service | Support OEM |
Description
The IMX477 is a high-resolution camera sensor developed by Sony. It features a 12.3 megapixel resolution with 1.55μm pixel size for high-quality imaging. The sensor is designed to capture both still and video images with excellent detail, clarity and color accuracy. It is used in various applications like surveillance systems, drones, security systems, and scientific applications where high-quality imaging and video capture is required. The IMX477 is equipped with advanced features like high dynamic range (HDR), low-light sensitivity, high-speed readout, and low-power consumption making it a versatile and efficient camera sensor. Overall, the IMX477 is a high-performance camera sensor suitable for applications requiring exceptional image quality and video capture.
Features
◆12.3-megapixel resolution
◆1.55μm pixel size
◆Stacked back-illuminated design
◆Supports 4K Ultra HD and 1080p Full HD video recording
◆Capable of capturing images at up to 60 frames per second
◆High sensitivity and low noise performance
◆High dynamic range
◆Advanced image processing algorithms
◆Small and compact form factor
◆Low power consumption.
Applicaitons
UAV/Drones/FPV camera
Machine Vision
Robotics
Face Recognition
Defect Detection
FAQ
1. Are you factory or trade company?
We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
2. What are some applications of camera modules?
Camera modules are used in a wide range of applications, including smartphones, tablets, laptops, digital cameras, drones, security cameras, automotive cameras, and medical devices.
3. What factors should I consider when choosing a camera module?
When choosing a camera module, you should consider factors such as image resolution, frame rate, size, power consumption, and price. You should also look for features such as autofocus, image stabilization, and low-light performance.
4. What operating system does your camera module support?
Our camera module can support Windows, Mac-IOS, Android and Self-developed Software.
5. Which software / development platform do your camera modules support?
Arduino, ESP32, Raspberry Pi, NVIDIA, Ambarella, RK(Rockchip), MTK(MediaTek Inc.), Qualcomm, ATI
Our products are sold all over the world, you can rest assured.
