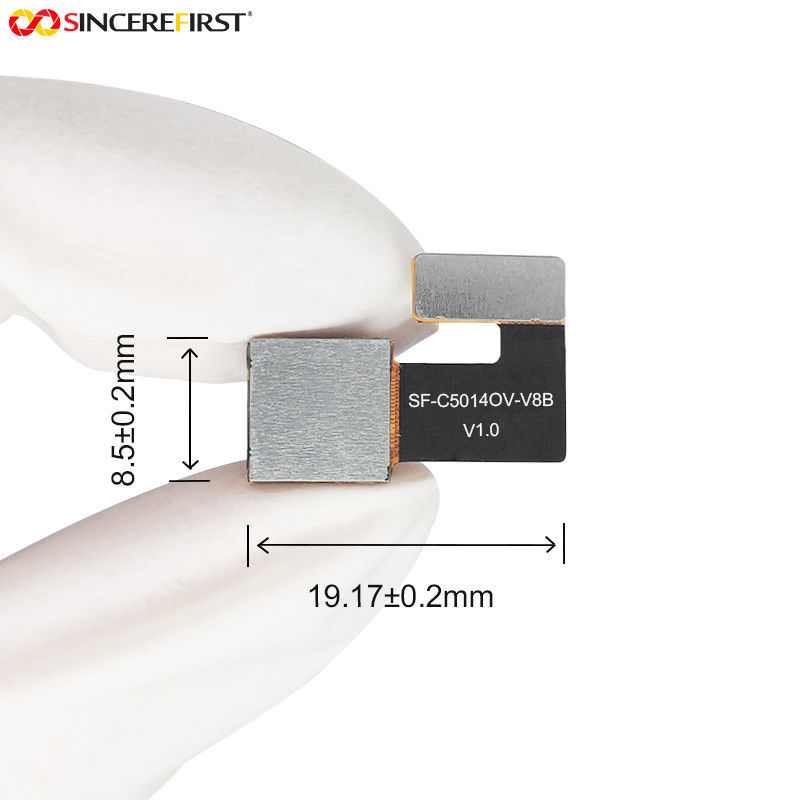

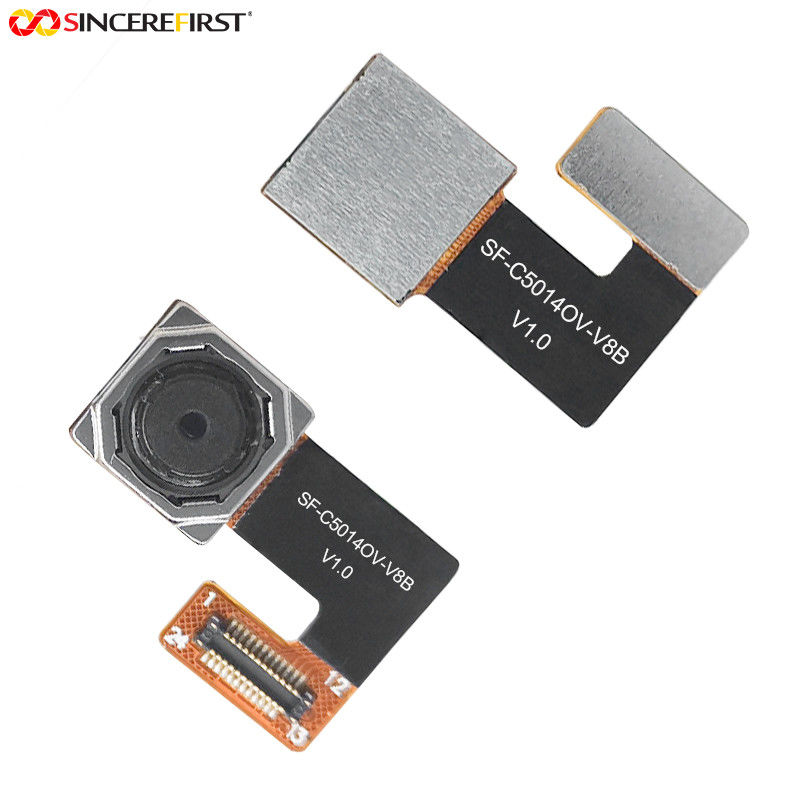

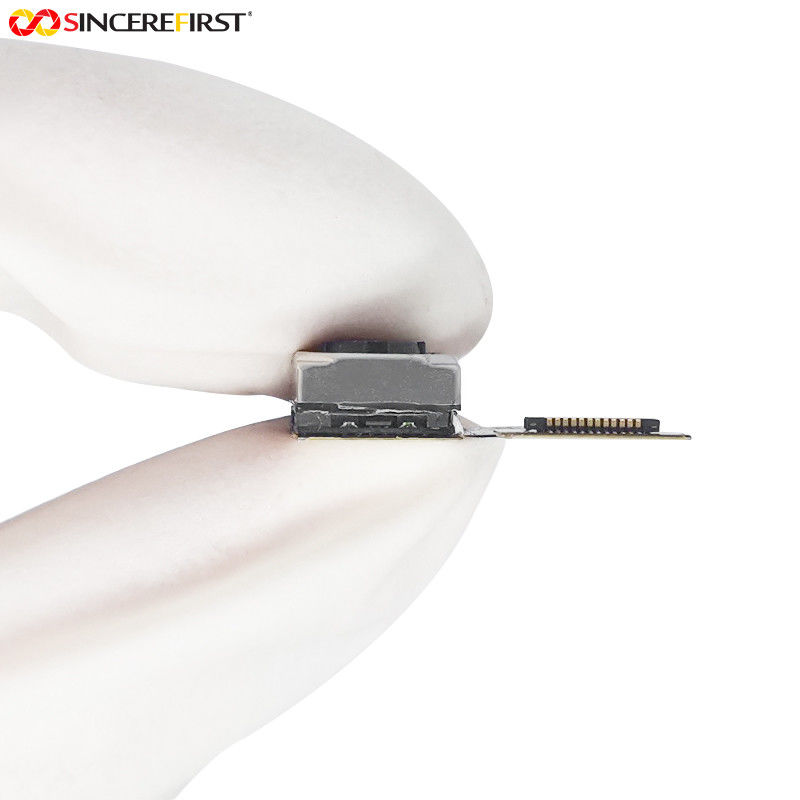

Raspberry Pi CMOS Sensor OV5647 5MP 60 Degree MIPI Camera Module
Specificaitons
| Image Sensor | OV5647 |
| Sensor Type | 1/4 CMOS |
| Output Format | YUV output |
| Connector | OK-14M024-04 |
| Shutter | Rolling shutter / Global shutter |
| active array size | 2592x1944 |
| Pixel Size | 1.4µm x 1.4µm |
| F Number | 2.8 |
| TV Distortion | <1% |
| Fov(D) | 60° |
Description
The OV5647 is an impressive image sensor that caters to a wide range of applications, including surveillance cameras, embedded vision systems, medical imaging devices, and more. This powerful sensor has a resolution of 5-megapixels, delivering high-quality images with excellent color accuracy and clarity.
One of the key advantages of the OV5647 is its low-light performance. It is equipped with advanced sensor technology that enables it to capture images in low light conditions, making it ideal for security and surveillance applications. Additionally, it features advanced image processing algorithms that enhance image quality, resulting in sharper and clearer images.
Another notable feature of the OV5647 is its compact size, making it highly suitable for applications where space is at a premium. This makes it ideal for use in portable devices such as smartphones, tablets, and small digital cameras.
The OV5647 is also known for being highly reliable and durable. It is designed to withstand harsh operating conditions, such as high temperatures and humidity, ensuring that it delivers consistent performance even under adverse conditions.
In summary, the OV5647 is a versatile and powerful image sensor that boasts impressive features such as high resolution, low-light performance, compact size, and durability. Its wide range of applications and reliability make it a popular choice among industry professionals and enthusiasts alike.
Features
◆1.4 μm x 1.4 μm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise)
◆optical size of 1/4"
◆automatic image control functions: automatic exposure control (AEC), automatic gain control (AGC), automatic white balance (AWB), automatic band filter (ABF), automatic 50/60 Hz luminance detection, and automatic black level calibration (ABLC)
◆programmable controls for frame rate, AEC/AGC 16-zone size/position/weight control, mirror and flip, cropping, windowing, and panning
◆image quality controls: lens correction, defective pixel canceling
◆support for output formats: 8-/10-bit raw RGB data
◆support for video or snapshot operations
◆support for LED and flash strobe mode
◆support for internal and external frame synchronization for frame exposure mode
◆support for horizontal and vertical sub-sampling
◆standard serial SCCB interface
◆MIPI interface (two lanes)
◆32 bytes of embedded one-time programmable (OTP) memory
◆on-chip phase lock loop (PLL)
◆embedded 1.5V regulator for core power
◆programmable I/O drive capability, I/O tri-state configurability
◆support for black sun cancellation
Applicaitons
toys
PC multimedia
digital still camera
automobile
smart home
FPV
Drone
