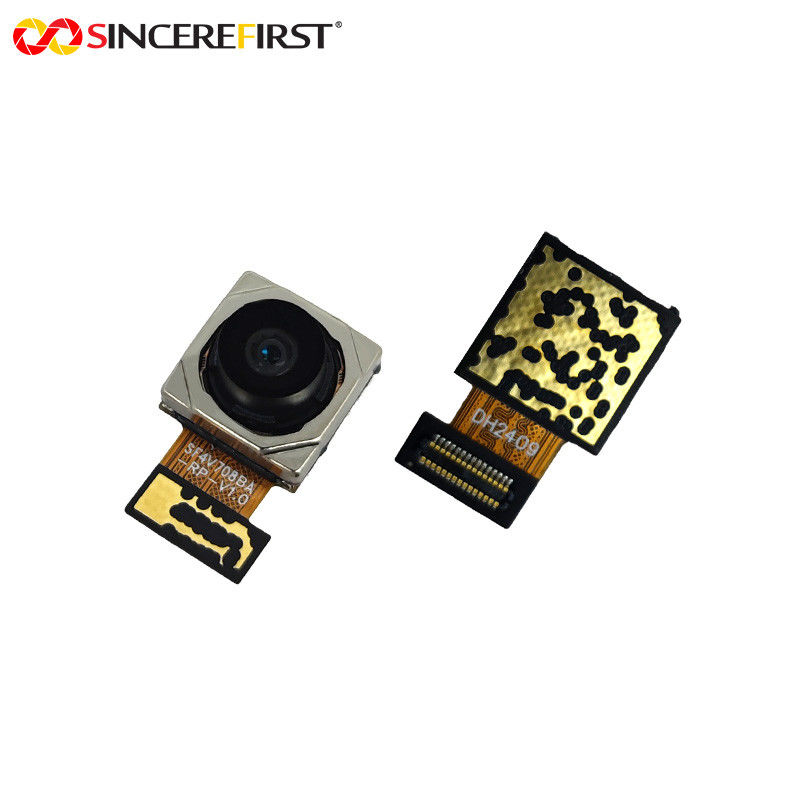

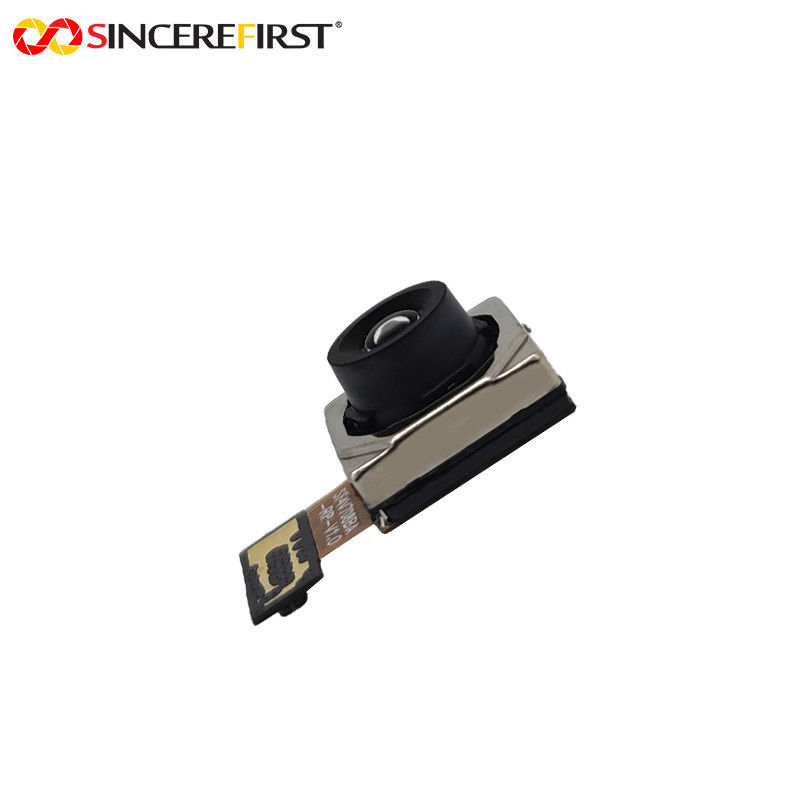

The camera module is powered by Sony’s 11.9MP IMX708 image sensor which can be used to capture Full HD videos and still photos, and it is compatible with Raspberry Pi.
1. Back-illuminated and stacked CMOS image sensor
2. Quad Bayer Coding(QBC) color filter arrangement
3. Phase Detection Auto Focus(PDAF)
4. High Frame Rate 60fps@Full resolution(16:9) / 60fps@1080p(QBC-HDR,16:9) / 240fps@1080p(2x2 Adjacent
Pixel Binning)
5. High signal to noise ratio(SNR)
6. Dual sensor synchronization operation
7. Built-in 2D Dynamic Defect Pixel Correction(DPC)
8. Lens Shading Correction(LSC)
9. Built-in temperature sensor
10. Output video format of RAW10,RAW8,RAW14
11. QBC Re-mosaic function
12. QBC HDR function
13. Two PLLs for independent clock generation for pixel control and data output interface
14. CSI-2 serial data output
15. MIPI D-PHY 2lane/4lane,Max.2.5Gbps/lane,D-PHY spec.ver.1.2 compliant
16. 2-wire serial communication (Supports FC"Fast mode" and "Fast-mode Plus")
8K bit of OTP ROM for users
| Chip Type | IMX708-AAJH5-C |
| Pixel Array | 4608H*2592V |
| FOV(D*H*V) | D120°, H103.5°, V67.5° |
| TV Distortion | 24pin |
| F.NO | ＜-11.6% |
| Focusing Range | 10cm~Infinity |
| Development Platform | Raspberry Pi |
| Certification | Rohs, Reach, ISO |
| Interface | MIPI CSI-2 Interface |
| Shutter Type | Rolling Shutter |
Industrial Inspection
Automotive
Traffic & Security
Retail & Finance
Machine Learning
AI applications
Our products are sold all over the world, you can rest assured.
