5MP Hd Mipi Cam Module AF FF CMOS OV5640 Raspberry Pi Camera Module V2
Specificaitons
| Sensor | OV5640 |
| Mega Pixels | 5MP |
| Interface Type | MIPI |
| View Angle | D65.5°H56.7°V42.5° |
| Focus Type | Auto Focus, Fixed Focus |
| Most Effective Pixels | 2592 (H) x 1944 (V) |
| System Compatible | Linux, Windows , MAC, Android |
| Format | YUY2/YUV/JPEG/MJPEG |
| Features | Face Recognition, Monitor, Drone |

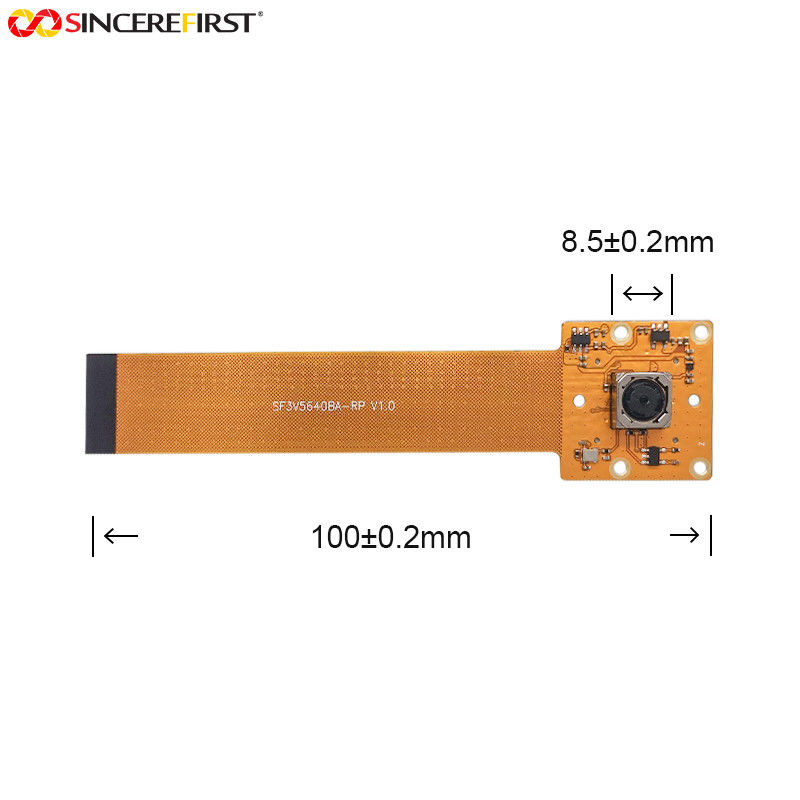

| Size | Customized |
Description

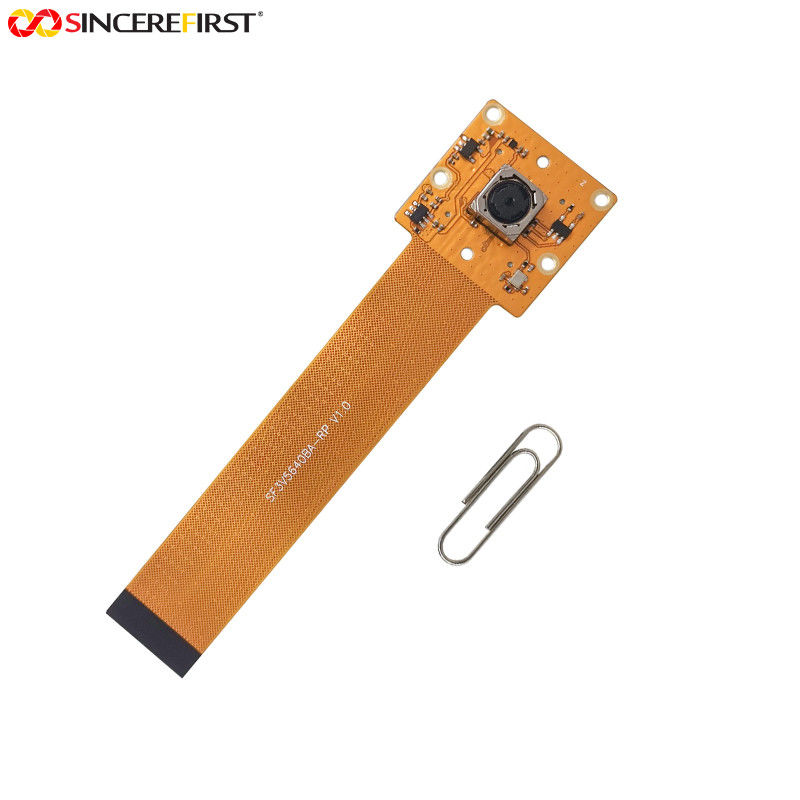

This SincereFirst camera module is based on OmniVision OV5640 CMOS Image Sensor, the cost-effective CMOS imaging solution that enables high-speed image capture capabilities, and includes variable functions, such as gain, frame rate, and exposure while maintaining low power consumption. The sensor has a 1/4 Inch optical format, which combines with the pixel size of 1.4um(H) x 1.4um(V), resulting in the 5.0 Megapixel support at 30 fps 2592H x 1944V for maximum video performance.
Features
◆Omnivision OV5640 CMOS image sensor.
◆Focus Type – Auto Focus (VCM driven)
◆MIPI CSI-2 Interface.
◆Maximum Image Transfer Rate.
◆Resolutions. MJPEG. VGA. 60 fps. HD (720p) 60 fps. Full HD (1080p) 30 fps * 5MP. 15 fps.
◆View Angle - 65.5° Diagonal.
◆Output Format - YUV422.
◆Object Distance - 10cm to Infinity.
Applicaitons
Embedded System
Robotics
Drones
Medical Equipment
Artificial Intelligence
