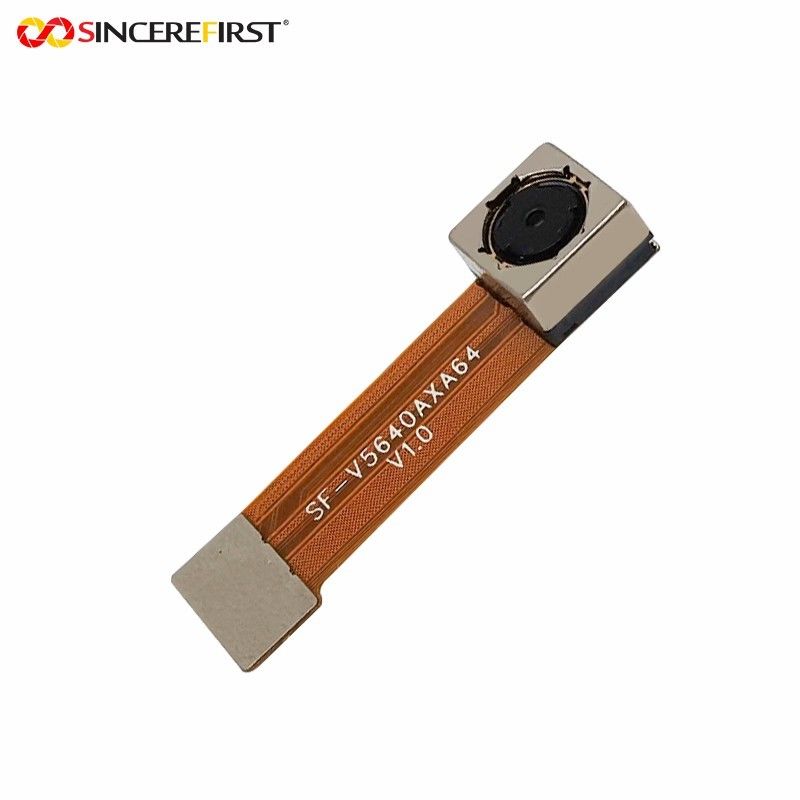

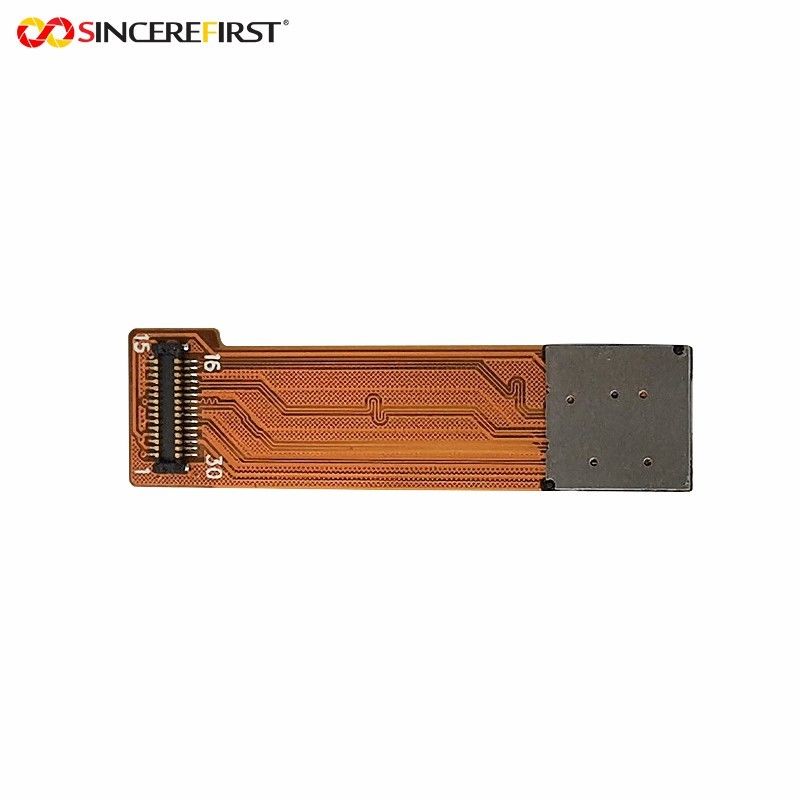

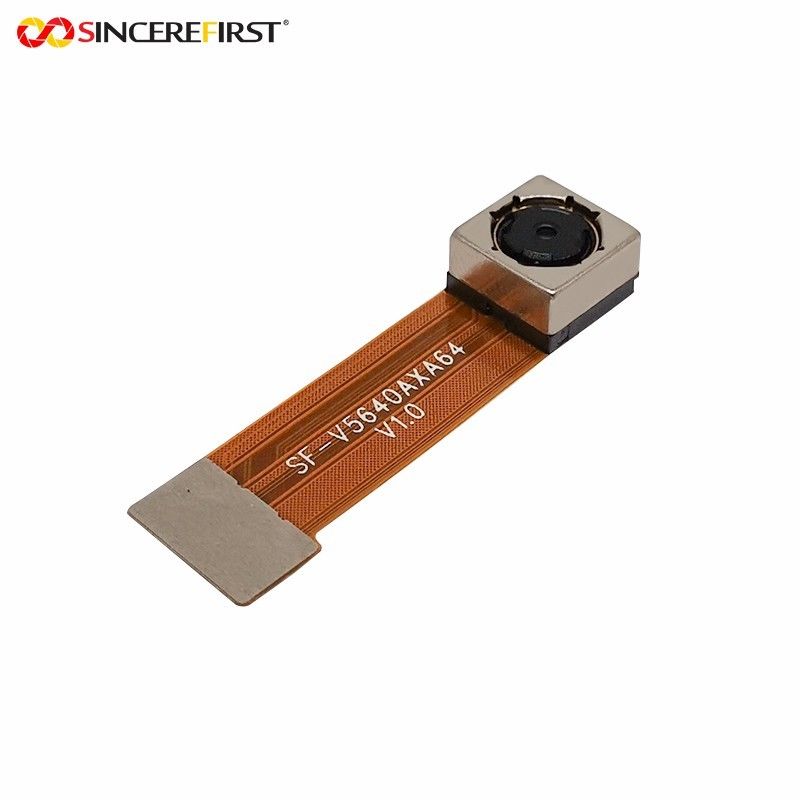

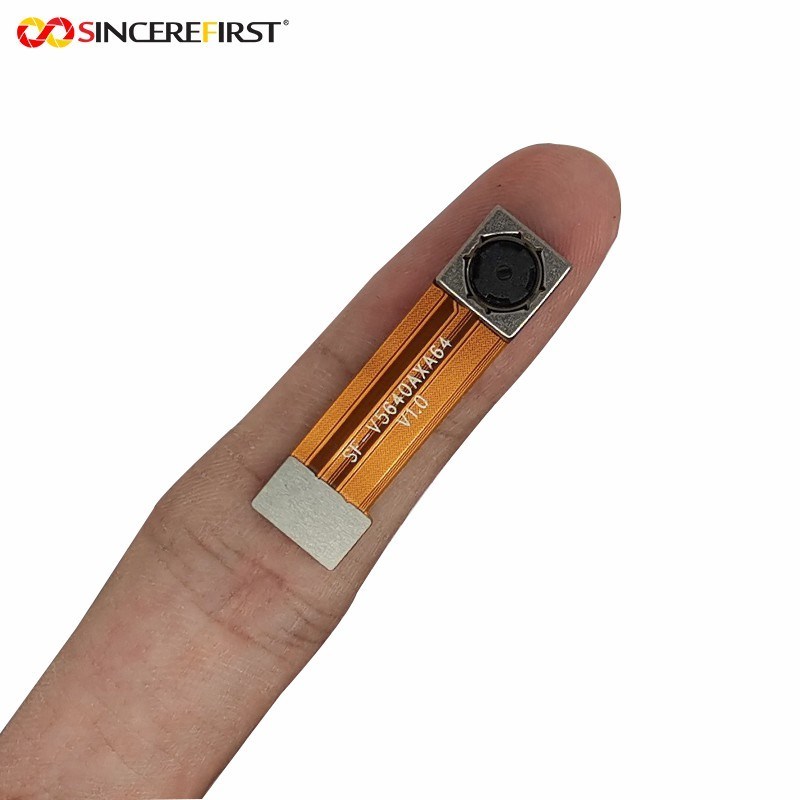

5mp OV5640 Raspberry Pi Auto Focus Mipi Camera Module For Esp32 Cam
Specificaitons
| Sensor | OV5640 |
| Mega Pixels | 5MP |
| Interface Type | MIPI |
| FOV(D) | 67° |
| Focus Type | Auto Focus |
| Most Effective Pixels | 2592 (H) x 1944 (V) |
| Shutter Type | Electronic Rolling Shutter |
| Auto Exposure Control | Support |
| Audio Frequency | Optional |
| Support OS | WinXP/Vista/Win7/Win8 |
Description
OV5640 is a 5 megapixel CMOS image sensor that provides the full functionality of a single chip 5 megapixel (2592×1944) camera using OmniBSI™ technology in a small footprint package. It is produced by OmniVision Technologies. OV5640 is a low voltage, high-performance, 1/4-inch 5 megapixel CMOS image sensor that provides the full functionality of a single chip 5 megapixel (2592×1944) camera using OmniBSI™ technology in a small footprint package.
Features
◆support for LED and flash strobe mode
◆support for horizontal and vertical sub-sampling, binning
◆support for minimizing artifacts on binned image
◆support for data compression output
◆support for anti-shake
◆standard serial SCCB interface
◆digital video port (DVP) parallel output interface and
◆dual lane MIPl output interface
◆embedded 1.5Vrequlator for core power
◆programmable I/O drive capability,1/O tri-state configurability
◆support for black sun cancellation
◆support for images sizes:5 megapxeland any
◆arbitrary size scaling down from 5 megapicel
◆support for auto focus control (AFC)with embedded AF VCM driver
◆embedded microcontroller
◆programmable /O drive capability.I/O tri-state configurability
◆support for black sun cancellation
◆support for images sizes: 5 megapxel. and any arbitrary size scaling down from5 megapixel
◆support for auto focus control (AFC)with embedded AF VCM driver
◆embedded microcontroller
◆suitable for module size of 8.5x 8.5 x <6mm with both CSP and RW packaging
Applicaitons
toys
PC multimedia
digital still cameras
