Wide Lens Angle USB Camera Board Arducam 8mp IMX179 Uvc Fixed Focus

Wide Lens Angle USB Camera Board Arducam 8mp IMX179 Uvc Fixed Focus

  • Highlight

    Wide Lens USB Camera Board

    ,

    Camera Board Arducam 8mp

    ,

    arducam imx179 uvc

  • Sensor
    IMX179
  • DSP
    USB2.0 DSP
  • Focusing Range
    20cm To Infnity
  • Focal Length
    1.11mm
  • F Number
    2.0
  • Fov(D)
    230°
  • TV Distortion
    <-35%
  • Sensor Size
    1/3.2"
  • Pixel
    8 Megapixel
  • Shape
    Rectangular USB Camera Module
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCEREFIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF-A8013USB-9520-FF
  • Minimum Order Quantity
    5 pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

Wide Lens Angle USB Camera Board Arducam 8mp IMX179 Uvc Fixed Focus

Wide Lens Angle Fixed Focus Arducam 8mp IMX179 USB Camera Module Board





Specificaitons



Product Name 8MP Camera Module
Focus Fixed Focus
Maximum Viewing Angle 230°
Interface USB2.0
Certification FCC/CE/ROSH
Sensor CMOS
Type Mini Camera Module
Function Built-in Mic
Application Laptop
Focusing Range 20cm to Infinity





Description



This camera is based on 8MP IMX179 USB Camera Module. The max resolution&frame rate is 3264(H)×2448(V)@30fps. Besides, we have equiped the camera with Fixed Focus Lens. Arducam has developed and designed this camera based on SONY IMX179 sensor. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the sensor, enabling the camera to realize your various projects. The camera is equiped with a 230°(D) fixedfocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android and MAC and no additional drivers required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.





Features



◆Frame Rate: 4K(3264×2448)@30fps, full HD USB camera with autofocus lens; Capture most exciting details at every 30/15fps, FoV: 230°(D)
◆MJPEG/YUYV: Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for industrial.
◆UVC Compliant: OTG supported just plug the USB cable into your PC’s USB port, and running the software can capture the high-level video and continuous recording, no driver needed.
◆Support OS: USB cameras are widely available for Windows, Android, Linux, and Mac OS with UVC protocol.
◆Mini Sized: Lightweight and compact size is perfect for embedded applications, and ideal for Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.





Applicaitons



VR Camera

UAV Aerial Photography

Face Recognition

Robot Vision

QR Code Gate

Simple Security System

3D Scanner

Lightburn Laser Engraver Machine
Surveillance
Video System

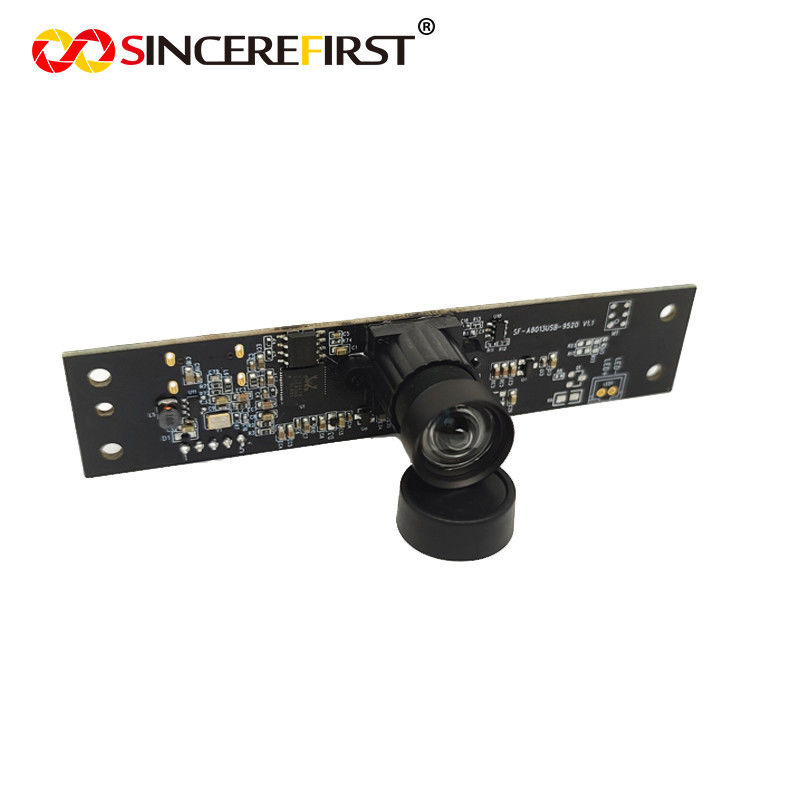

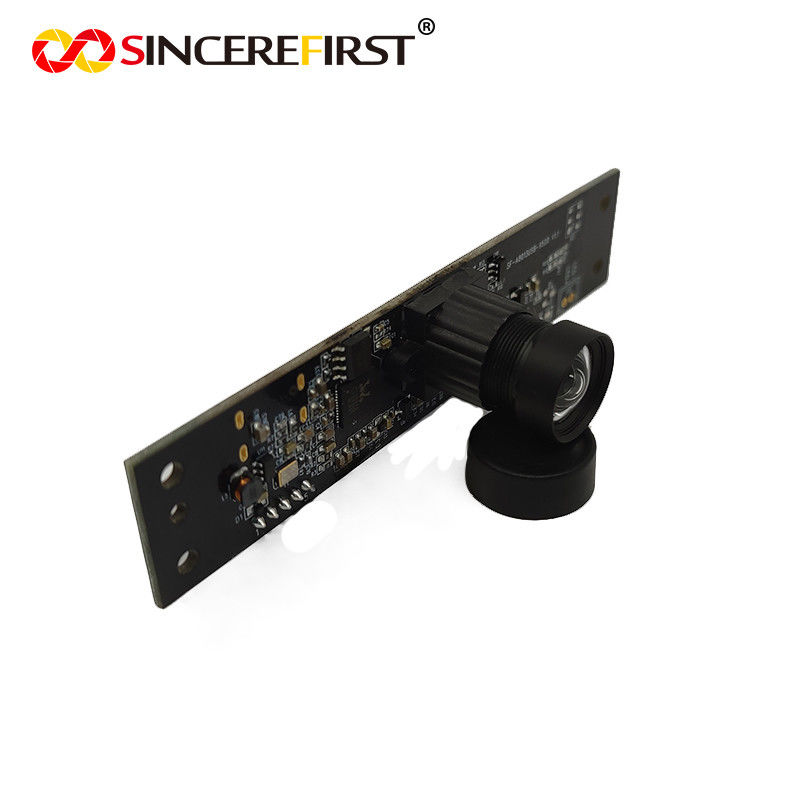

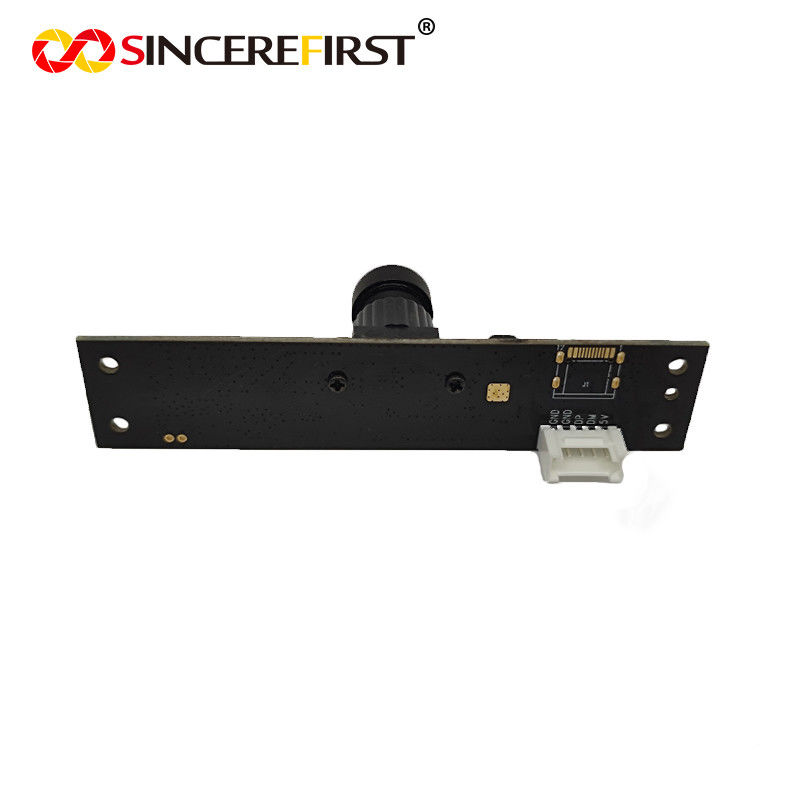

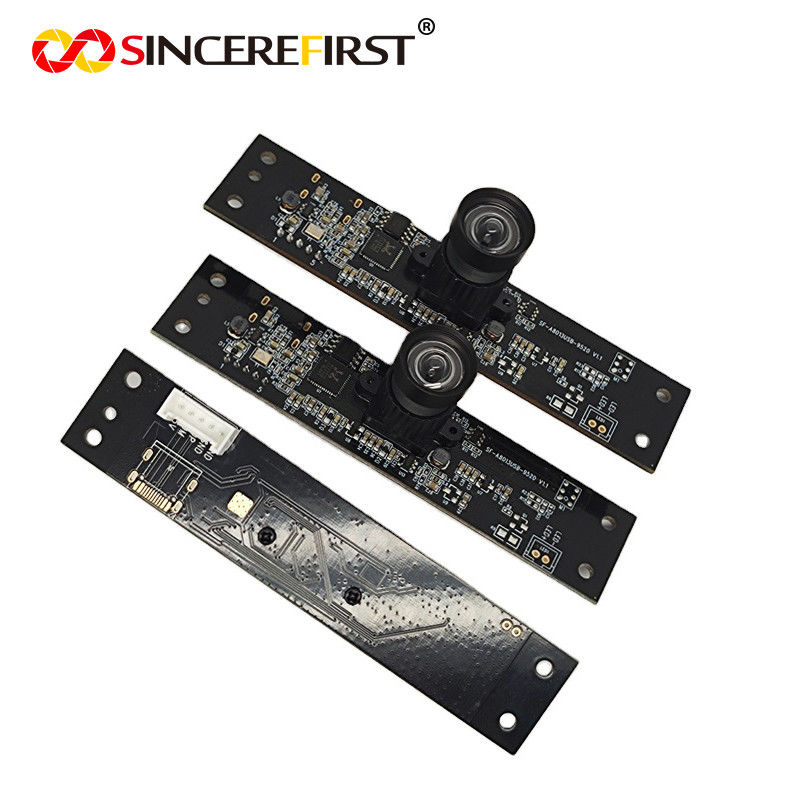

Wide Lens Angle USB Camera Board Arducam 8mp IMX179 Uvc Fixed Focus 0

Wide Lens Angle USB Camera Board Arducam 8mp IMX179 Uvc Fixed Focus 1
