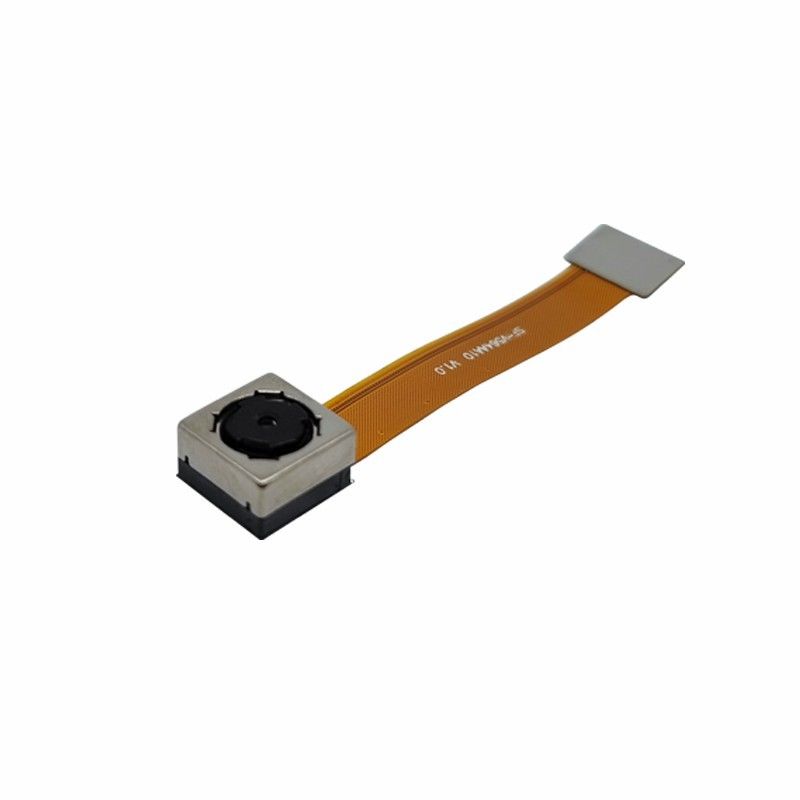

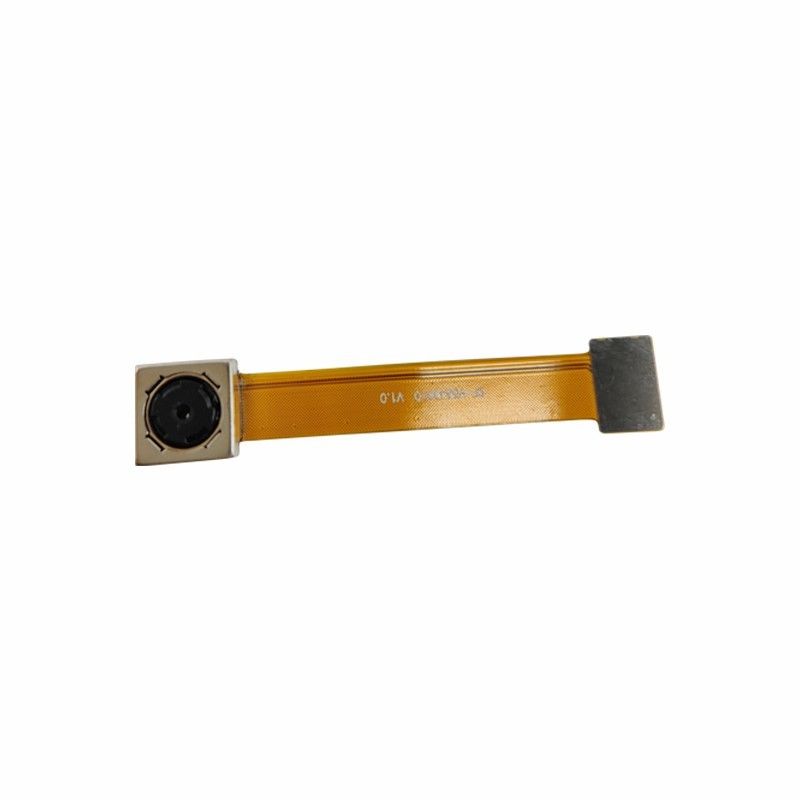

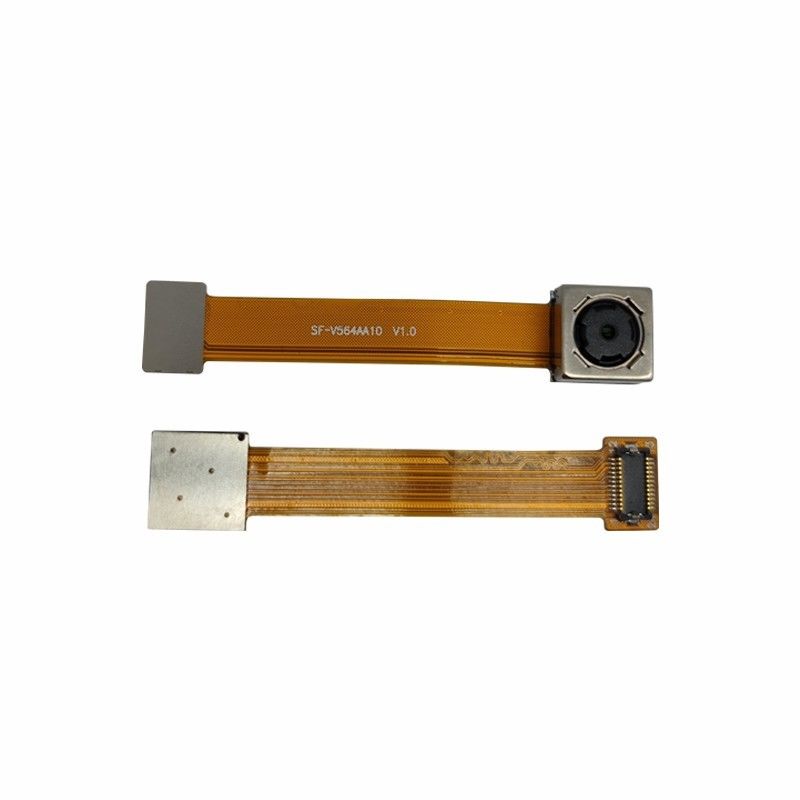

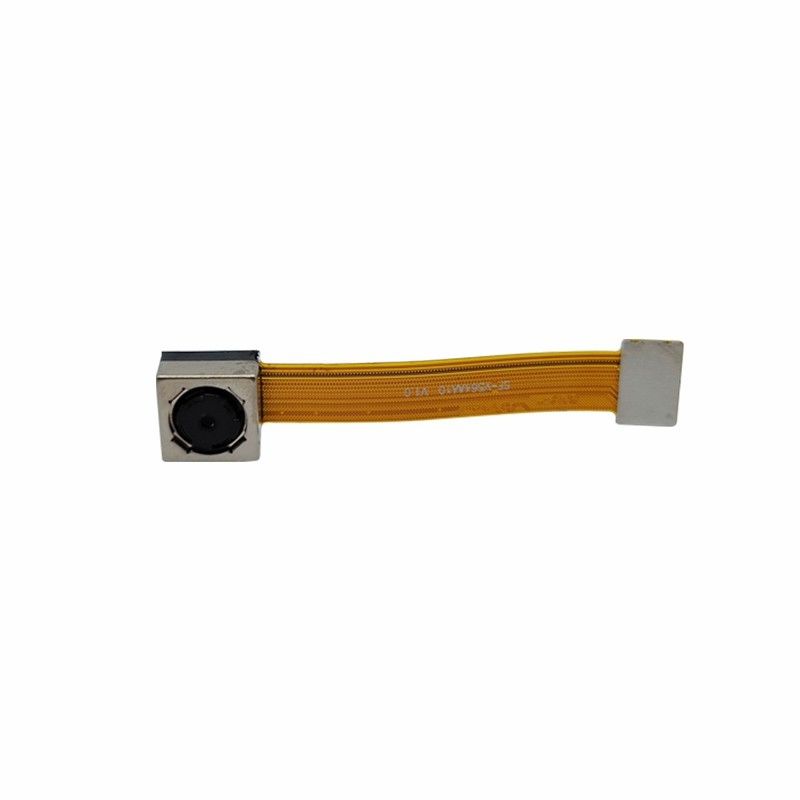

Cheap Digital Cmos Camera Image Sensor OV5640 Raspberry Pi Camera Module
Specificaitons
| CMOS Sensor | OmniVision OV5640 |
| Active Pixels | 2592 (H) x 1944 (V) = 5MP |
| Pixel Size | 1.4 μm x 1.4 μm |
| Optical Format | 1/4” (Diagonal 4.6 mm) |
| Shutter Type | Rolling Shutter |
| Interface | MIPI |
| REACH / RoHS | YES |
| Brand | SincereFirst |
| Operation Temperature | -30°C to +70℃ |
| Chromaticity | Color |
Description
The OV5640 image sensor is capable of taking 2592x1944 (5MP) images. The sensor supports Grayscale, RGB565, JPEG, YUV422, and Bayer image formats. Depending on the resolution you can achieve up to 120 FPS frame rates.
Features
active array size: 2592 x 1944 power supply
core: 1.5V ± 5% (with embedded 1.5V regulator) analog: 2.6 ~ 3.0V (2.8V typical)
I/O: 1.8V / 2.8V
power requirements: active: 140 mA standby: 20 μA
temperature range:
operating: -30°C to 70°C junction temperature
stable image: 0°C to 50°C junction temperature
output formats: 8-/10-bit RGB RAW output
lens size: 1/4"
lens chief ray angle: 24°
input clock frequency: 6~27 MHz
Applicaitons
Vision inspection
Augmented reality
Document scanning
Head mount displays
Surveillance applications
Obstacle avoidance
Industrial automation
3D vision based assistance
