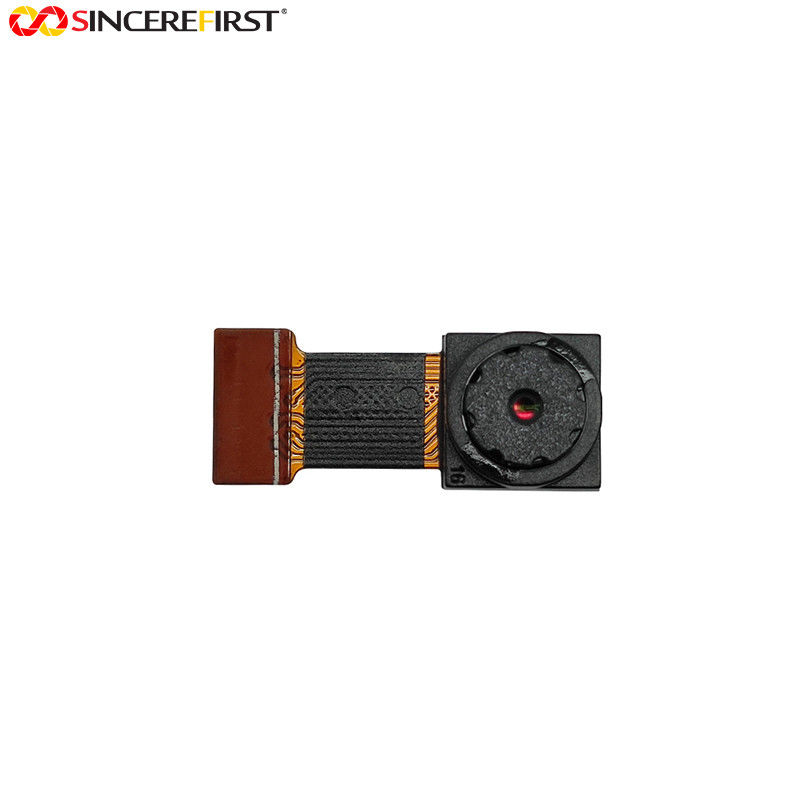

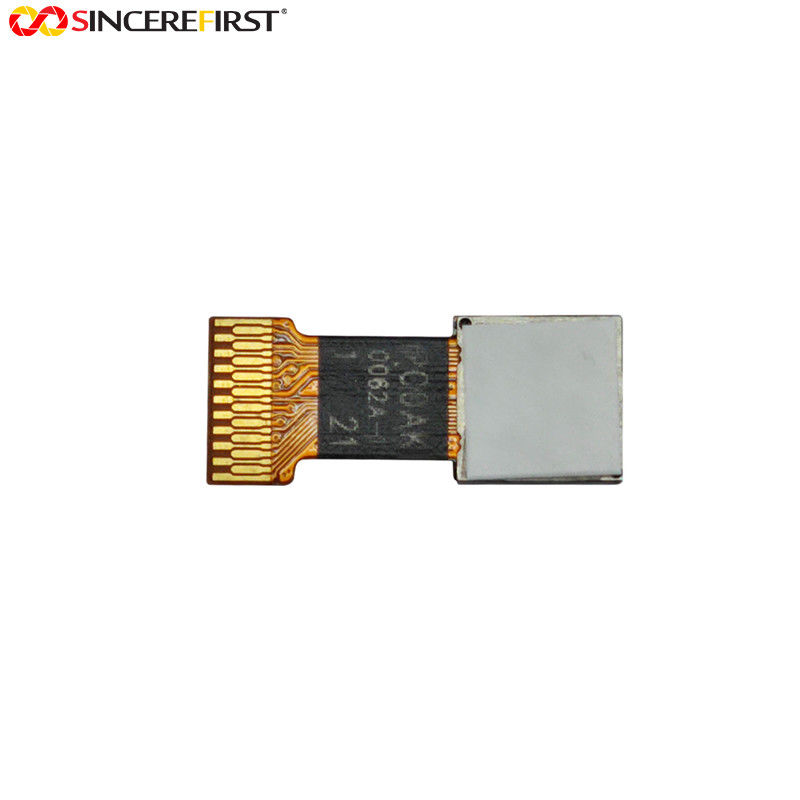

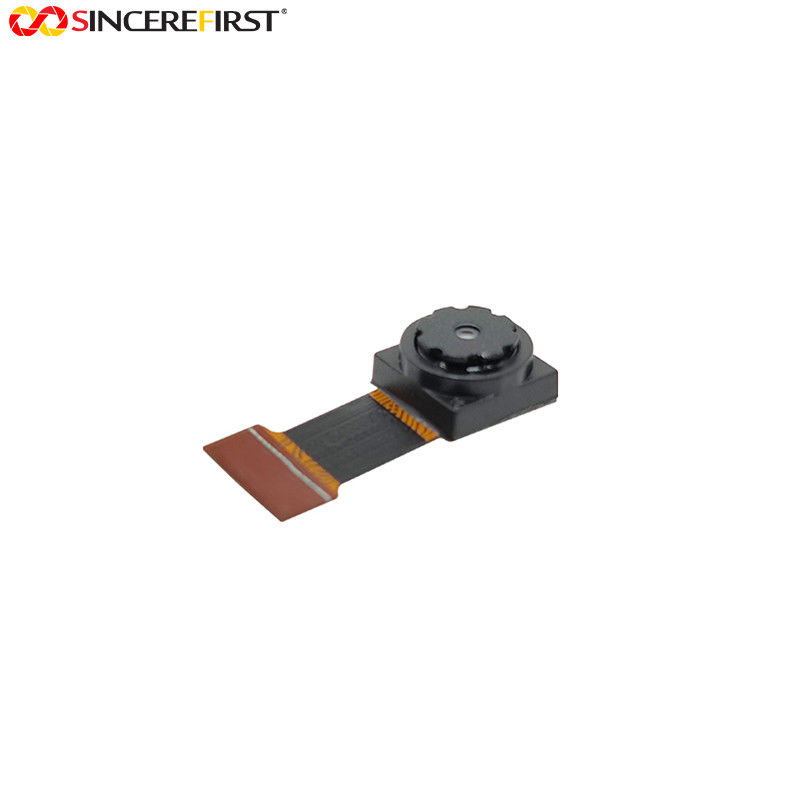

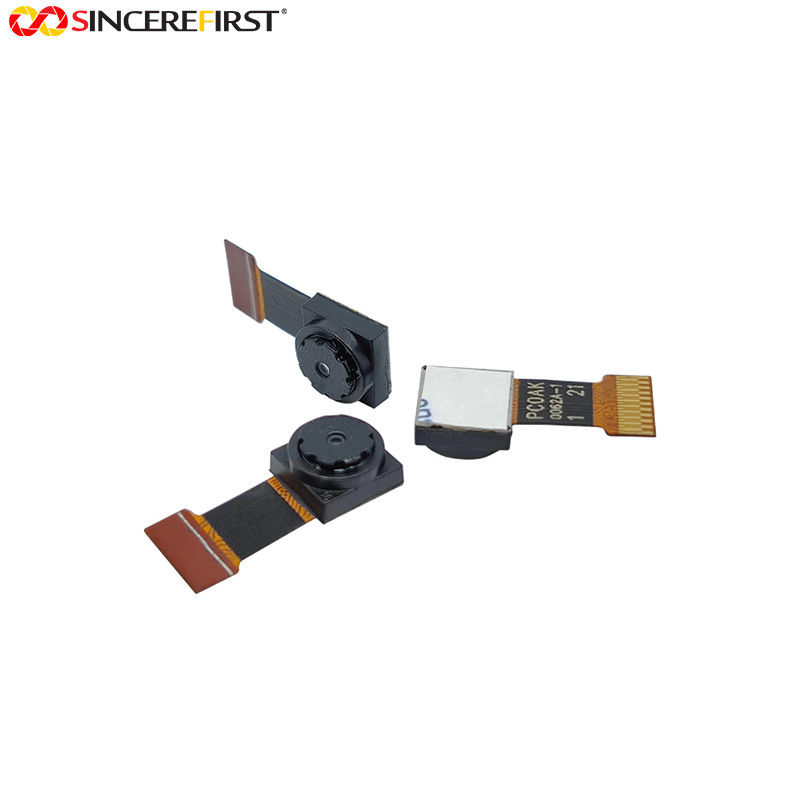

0.3MP VGA CMOS 1/6.5″ GC0308 Image Sensor Camera Lens Module
Specificaitons
| Chip Type | GC0308 |
| Optical Format | 1/6.5 inch |
| Pixel Size | 3.4 um * 3.4 um |
| Active Array Size | 648*488 |
| Max Frame Rate | 30 fps @ 24 MHz, VGA |
| Focal Length | 2.01mm |
| F Number | 2.4±5% |
| TV Distortion | ＜1.5% |
| Sensor | CMOS |
| Stable Image Temperature | -10~60℃ |
Description
The GC0308 is a CMOS image sensor with 0.3 MP and a frame rate of 30 frames/sec. It features 640V x 480H resolution with 1/6.5-inch optical format, and 4-transistor pixel structure for high image quality and low noise variations. It delivers superior image quality by powerful on-chip design of a 10-bit ADC, and embedded image signal processor.
Features
Standard optical format of 1/6.5 inch
Motion detect function
Bar code identification
Various output formats: YCbCr 4:2:2, RGB565, Raw Bayer
Single power supply requirement (2.8V)
Windowing support
Horizontal /Vertical mirror
Image processing module
Applicaitons
Notebook and Desktop PC cameras
Toys
Digital still cameras and camcorders
Video telephony and conferencing equipments
Security systems
