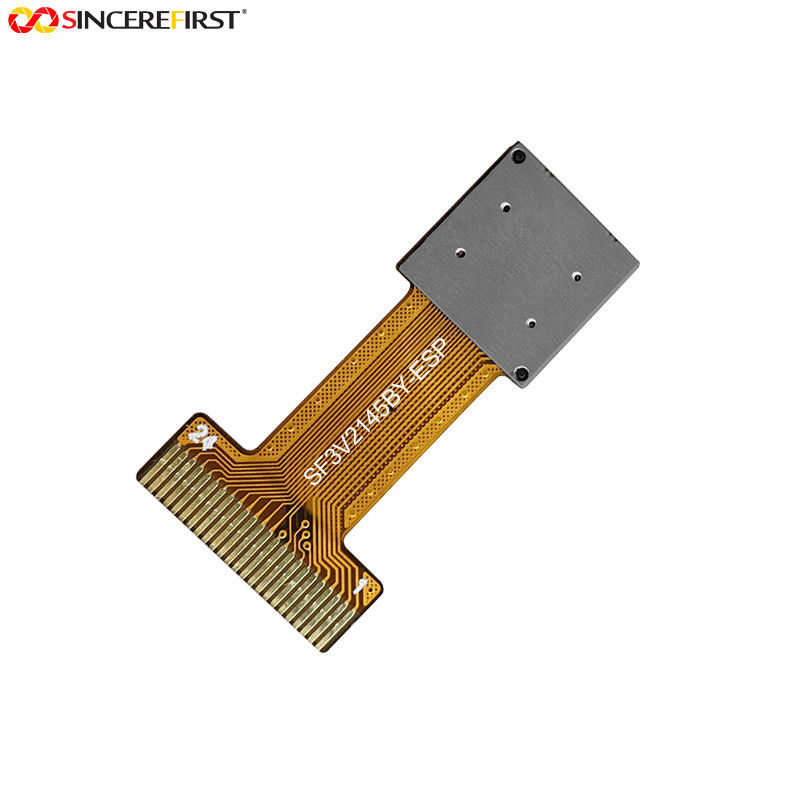

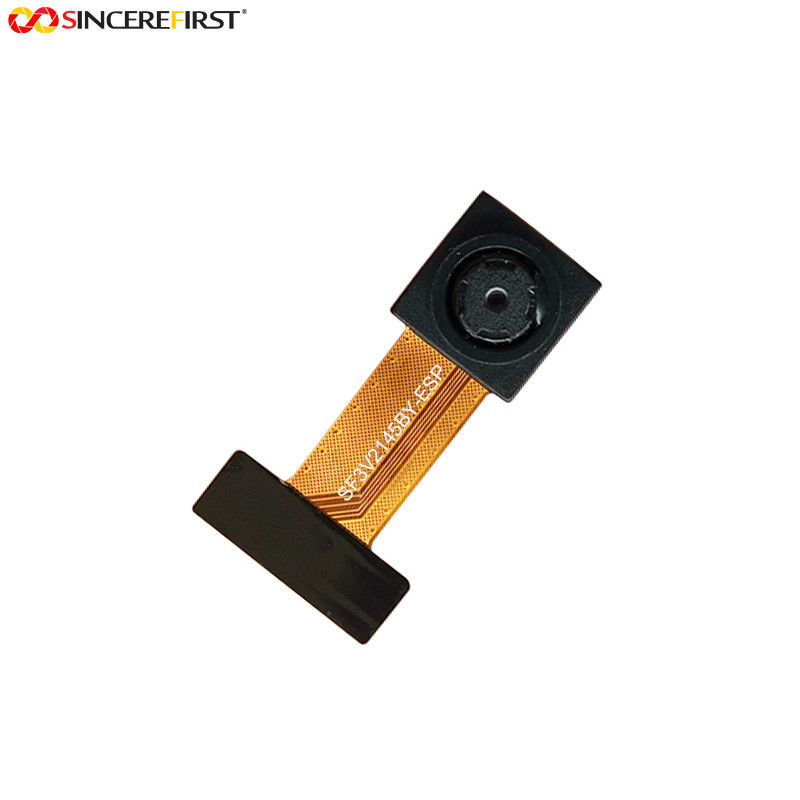

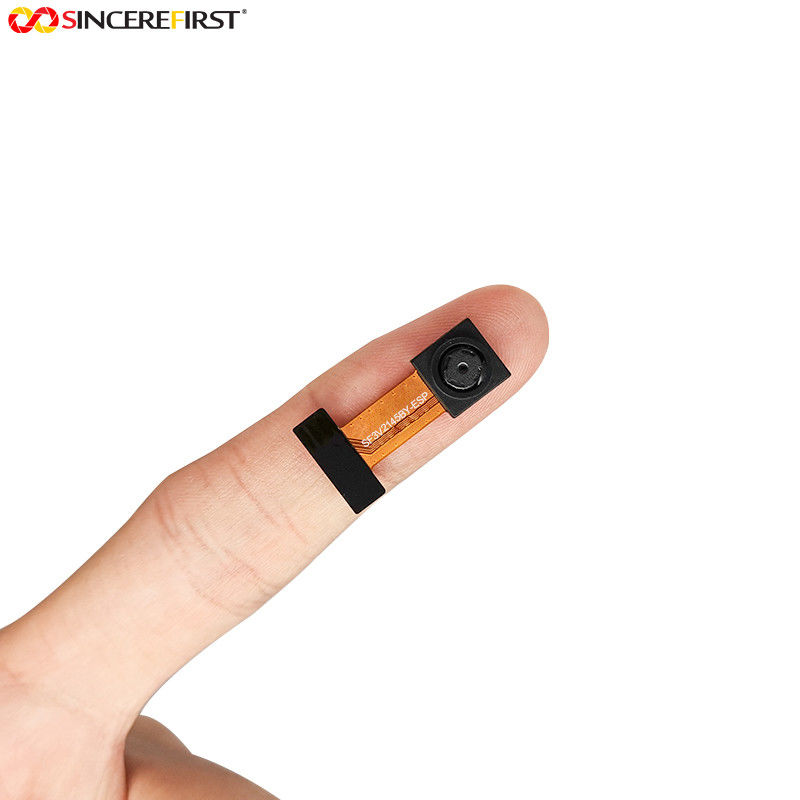

2mp GC2145 Digital Color DVP Interface Machine Vision Camera Moudle
Specificaitons
| Chip Type | GC2145 |
| Optical Format | 1/5 inch |
| Pixel Size | 1.75μm x 1.75μm |
| ADC resolution | 10 bit ADC |
| Shutter Type | Rolling Shutter |
| Focus Type | Fixed Focus |
| Field of View | 76° |
| TV Distortion | ＜-25% |
| Operating Temperature | -20~70℃ |
| Resolution | 2MP |
Description
The GC2145 is a high quality 2Mega CMOS image sensor for mobile phone camera applications and digital camera products. It incorporates a 1616V x 1232H active pixel array, on-chip 10-bit ADC, and image signal processor.
Features
Standard optical format of 1/6.5 inch
Motion detect function
Bar code identification
Various output formats: YCbCr 4:2:2, RGB565, Raw Bayer
Single power supply requirement (2.8V)
Windowing support
Horizontal /Vertical mirror
Image processing module
Applicaitons
Machine/Computer Vision
Robotics
IoT
Digital Fabrication
Real-time Processing
