Fixed Focus Raspberry Pi 5mp Sensor Dvp Camera Module OV5640 Lens
Specificaitons
| Image Sensor | OV5640 |
| Optical Size | Type 1/4" |
| Pixel Size | 1.4 μm x 1.4 μm |
| Focusing Range | 30cm to 250cm |
| Focal Length | 2.79mm |
| F Number | 2.4 |
| Active Array Size | 2592 x 1944 |
| Shutter | Rolling Shutter |
| Fov(H) | 76° |
| TV Distortion | ＜-15% |
Description

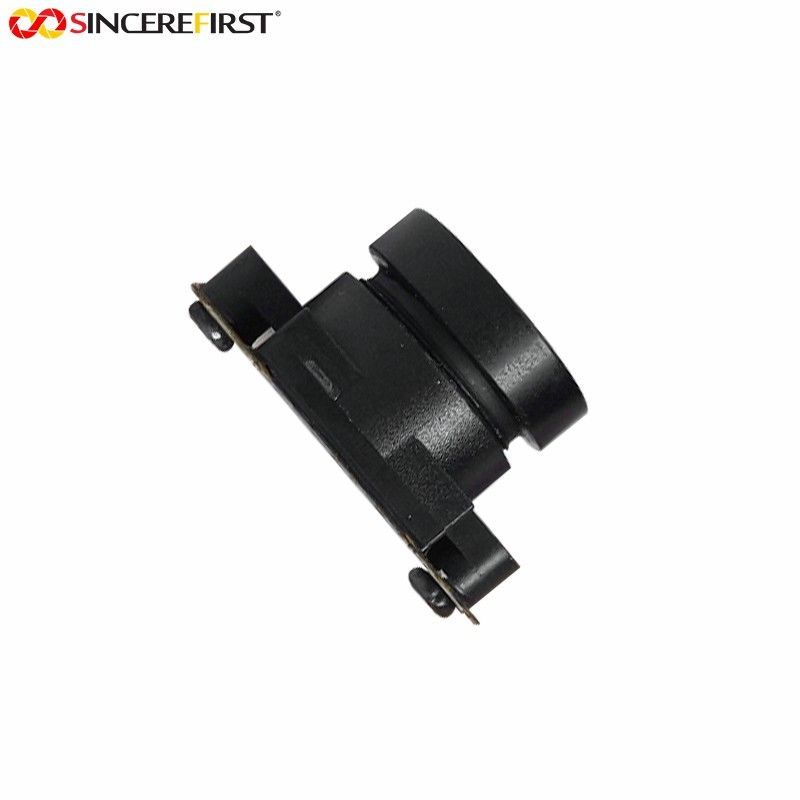

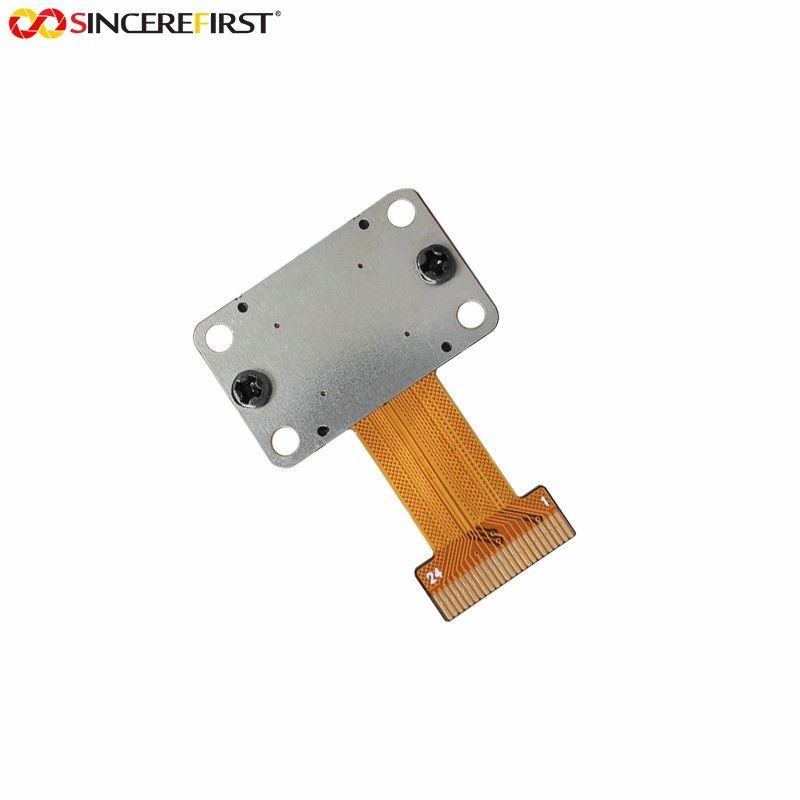

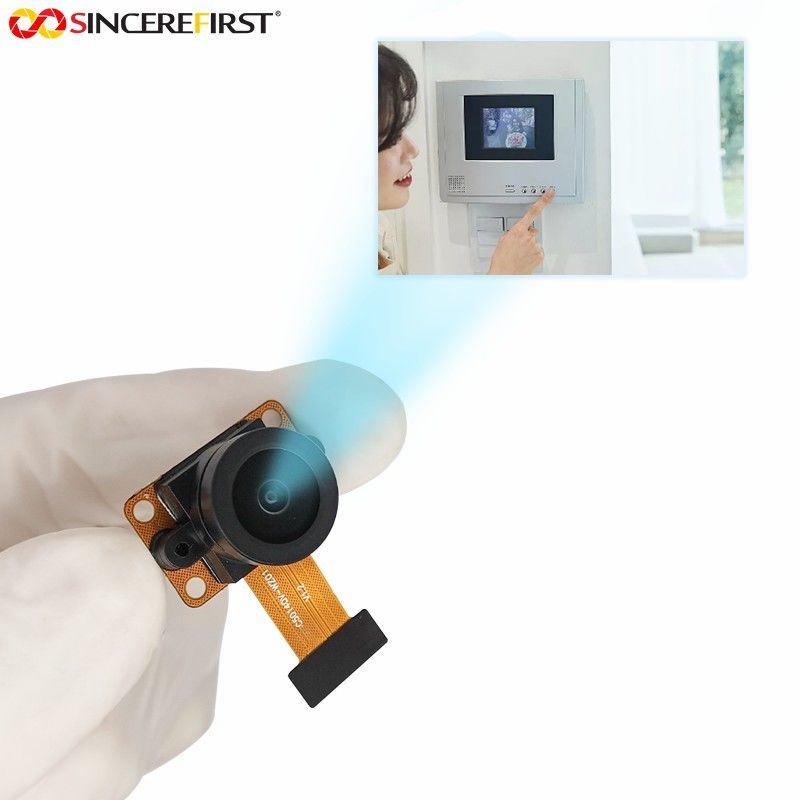

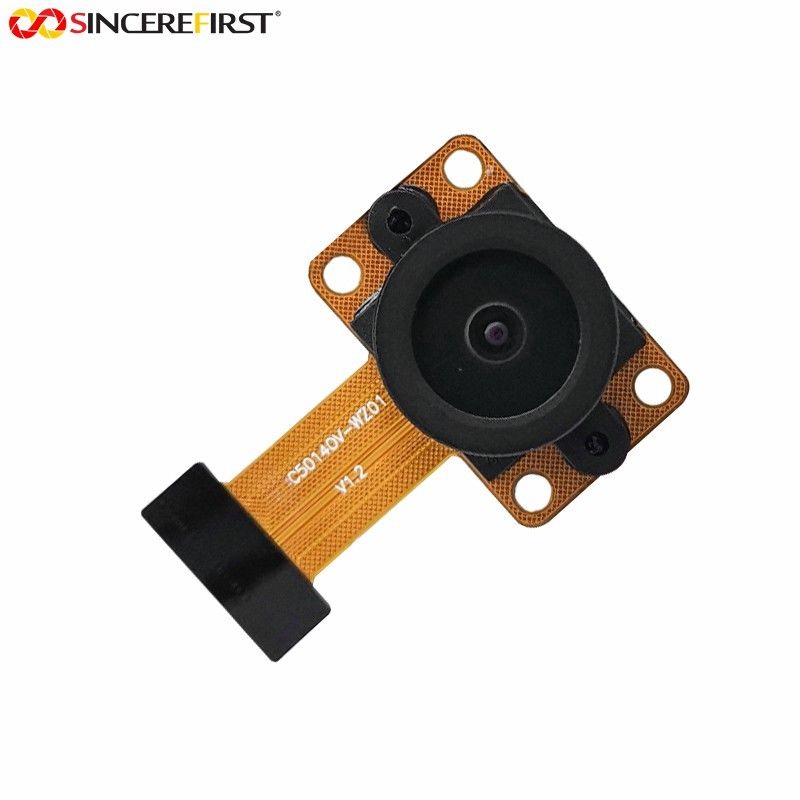

The OV5640 – 5.0 MP Camera Module (B0158) is based on the OV5640 color sensor from OmniVision.
The sensor has a 1/4.0″ optical format, which combined with the pixel size of 1.4 µm x 1.4 µm, results in the 5.0 MP 2592 x 1944 VGA | WVGA | SXGA | UXGA | QXGA image. This is a rolling shutter sensor, which captures an entire column (or row) simultaneously, and compiles the image by scanning across (or down).
Features
◆Omnivision OV5640 Image Sensor with pixel size of 1.4µm
◆Electronic Rolling Shutter
◆Fixed Focus
◆Normal Flip, Mirror and Rotate support
◆Image Area - 3673.6 µm x 2738.4 µm
◆Focus Distance:30cm to 250cm
Applicaitons
Advanced Driver Assistance Systems (Adas)
Toys
Surveillance Systems
Automotive Industry
