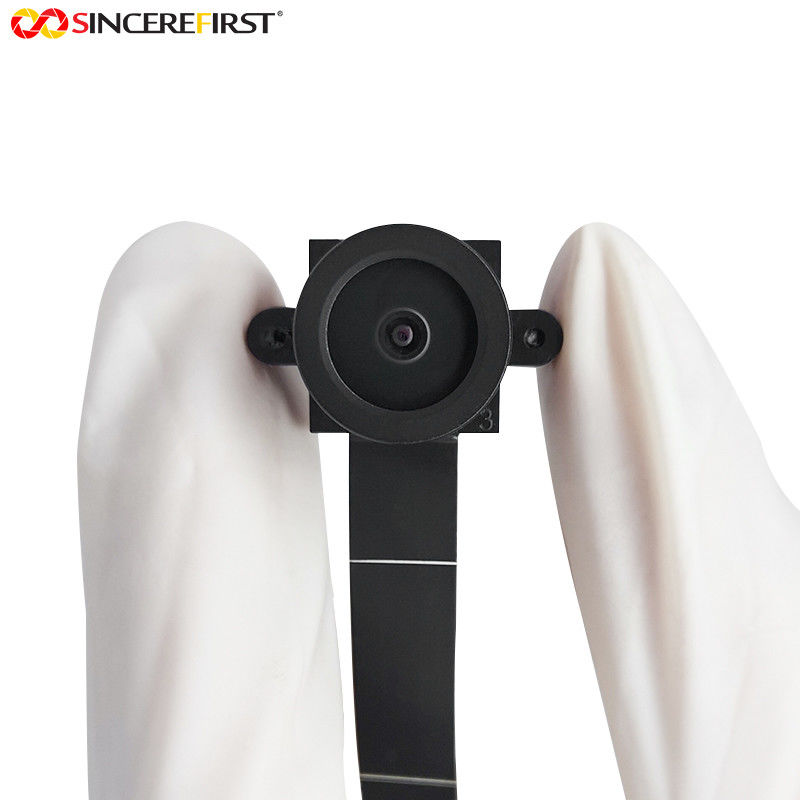

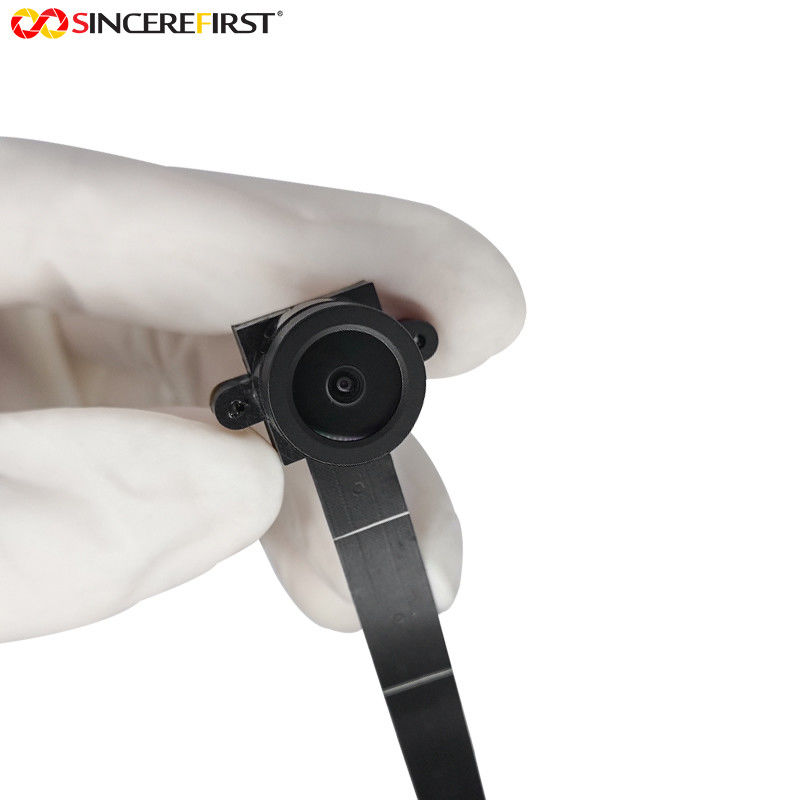

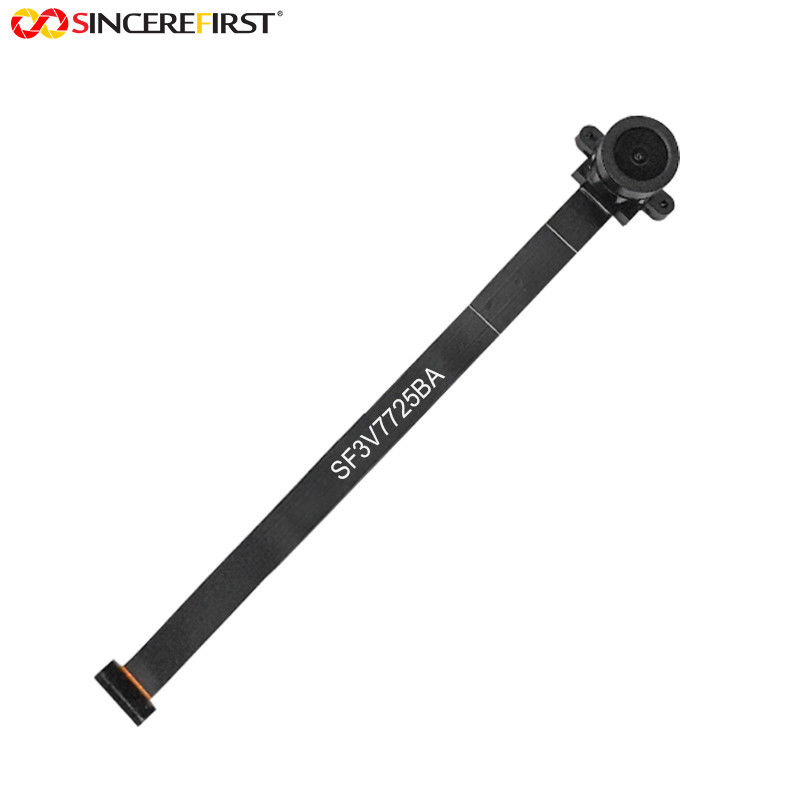

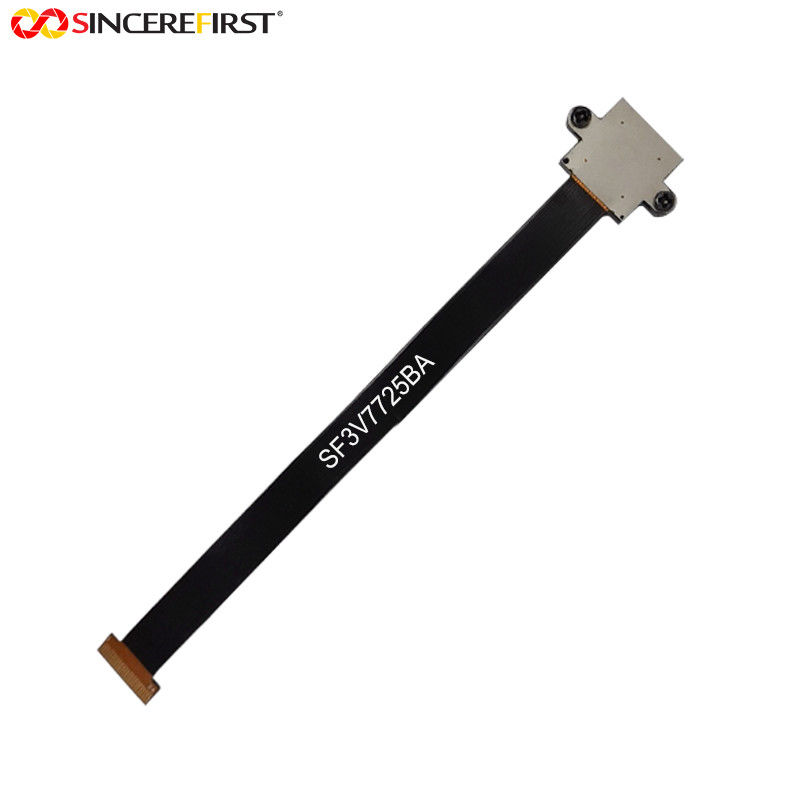

8806Z 0.3MP 24 Pin CMOS Camera Module VGA OV7725 Fixed Focus Mipi

8806Z 0.3MP 24 Pin CMOS Camera Module VGA OV7725 Fixed Focus Mipi

Products - CMOS Camera Module
  • Highlight

    24 Pin CMOS Camera Module

    ,

    CMOS Camera Module VGA OV7725

  • Sensor
    OV7725
  • Pixel Array
    640H*480V
  • Lens Type
    1/4''
  • Lens Elements
    4G+IR
  • EFL
    2.7mm
  • F.NO
    D116°*H88°*V64°
  • TV Distortion
    <-20%
  • Output Formats
    8-10-bit RAW
  • Focus Range
    15cm-infinite
  • Temperture
    -20°Cto+70°C
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF3V7725BA
  • Minimum Order Quantity
    5 pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

8806Z 0.3MP 24 Pin CMOS Camera Module VGA OV7725 Fixed Focus Mipi

  • 8806Z 0.3MP 24 Pin CMOS Camera Module VGA OV7725 Fixed Focus Mipi
  • 8806Z 0.3MP 24 Pin CMOS Camera Module VGA OV7725 Fixed Focus Mipi
  • 8806Z 0.3MP 24 Pin CMOS Camera Module VGA OV7725 Fixed Focus Mipi
  • 8806Z 0.3MP 24 Pin CMOS Camera Module VGA OV7725 Fixed Focus Mipi
Get Price Contact Now

8806Z 0.3MP 24 Pin CMOS VGA OV7725 Fixed Focus Mipi Camera Module​





Specificaitons



DOVDD ‎2.8V
AVDD 3.3V
DVDD 1.8V
Output Format RAW, RGB
Shutter Type Rolling shutter
Power Requirement Active: <120 mW, Standby: <20 µA
S/N Ratio 50dB
Dymatic Range 60dB
Image Area 3984*2952
Lens Type 1/4''





Description



The OV7725 CAMERACHIP™ image sensor is a lowvoltage CMOS device that provides the full functionality ofa single-chip VGA camera and image processor in a smallfootprint package. The OV7725 provides full-frame,sub-sampled or windowed 8-bit/10-bit images in a widerange of formats, controlled through the Serial CameraControl Bus (SCCB) interface.This device has an image array capable of operating at upto 60 frames per second (fps) in VGA with complete usercontrol over image quality, formatting and output datatransfer. All required image processing functions,including exposure control, gamma, white balance, colorsaturation, hue control and more, are also programmablethrough the SCCB interface. In addition, OmniVisionsensors use proprietary sensor technology to improveimage quality by reducing or eliminating commonlighting/electrical sources of image contamination, suchas fixed pattern noise, smearing, blooming, etc., toproduce a clean, fully stable color image.





Features



◆High sensitivity for low-light operation
◆Standard SCCB interface
◆Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555/444) and YCbCr (4:2:2) formats
◆Supports image sizes: VGA, QVGA, and any size scaling down from CIF to 40x30
◆VarioPixel® method for sub-sampling
◆Automatic image control functions including: Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
◆Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
◆ISP includes noise reduction and defect correction
◆Lens shading correction
◆Saturation level auto adjust (UV adjust)
◆Edge enhancement level auto adjust
◆De-noise level auto adjust

SCCB control interface for register programming





Applicaitons



Cell and Picture Phones
Toys
PC multimedia
Digital still cameras
Kiosk
Machine Vision
Inspection tester
Video Conference Systems
