1MP Digital Camera CMOS Image Sensor Company Endoscope Camera Module
Specificaitons
| Pixel | 720P |
| Sensor | 1/9’’ CMOS Digital Image sensor |
| Output Data Format | YUV2/MJPEG |
| Optical Filter | Infrared Cutting Filter |
| FOV(D) | 110° |
| TV Distortion | ＜-20% |
| Focus Range | 10mm~100mm |
| Interface Type | USB2.0 |
| Power Source | Uses USB BUS Power |
| Operating Temperature | -10°C-50°C |
Description

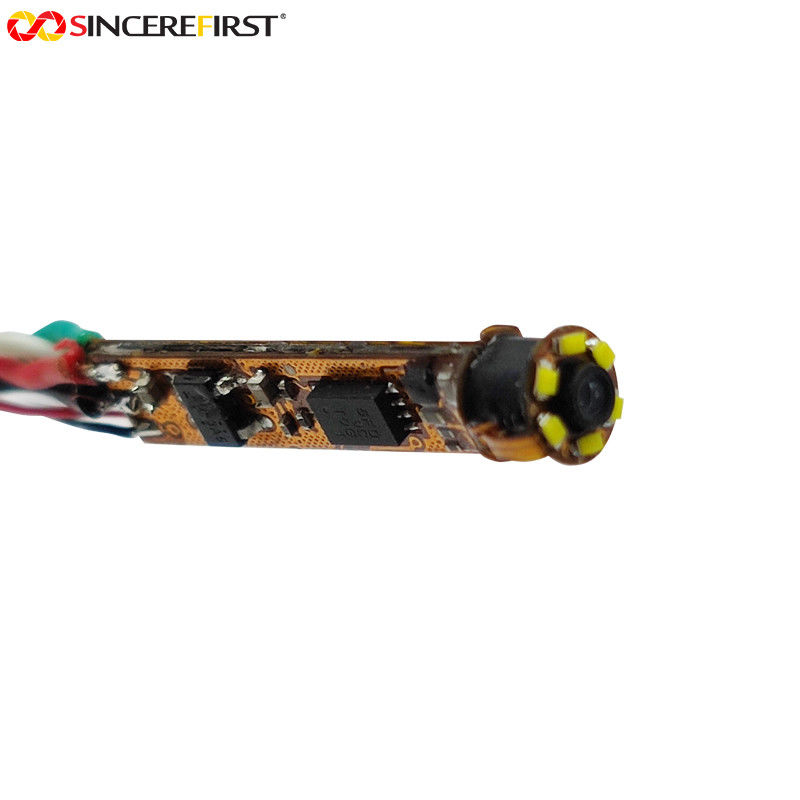

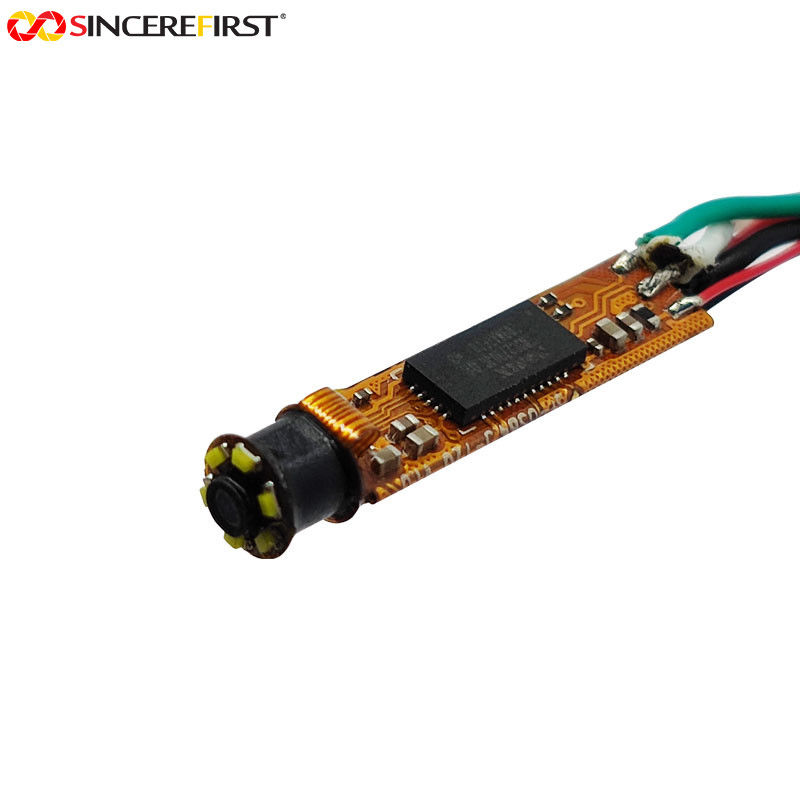

This is our popular endoscope camera module, it is 1MP resolution with digital image sensor, and it supports 30FPS high frame rate at (or below) 1280x720 resolution. This camera module is very small, you can almost fit it within any of your device/equipment, no matter how small the space is.There are 6 built-in LED lights, you can use this camera module both in daytime or night time, even without light at all.
We can either provide you the camera module only, or we can provide you camera module with casing.
Features
◆Auto Focus
◆1MP resolution with CMOS digital image sensor
◆It supports 30FPS high frame rate at 1280x720 resolution

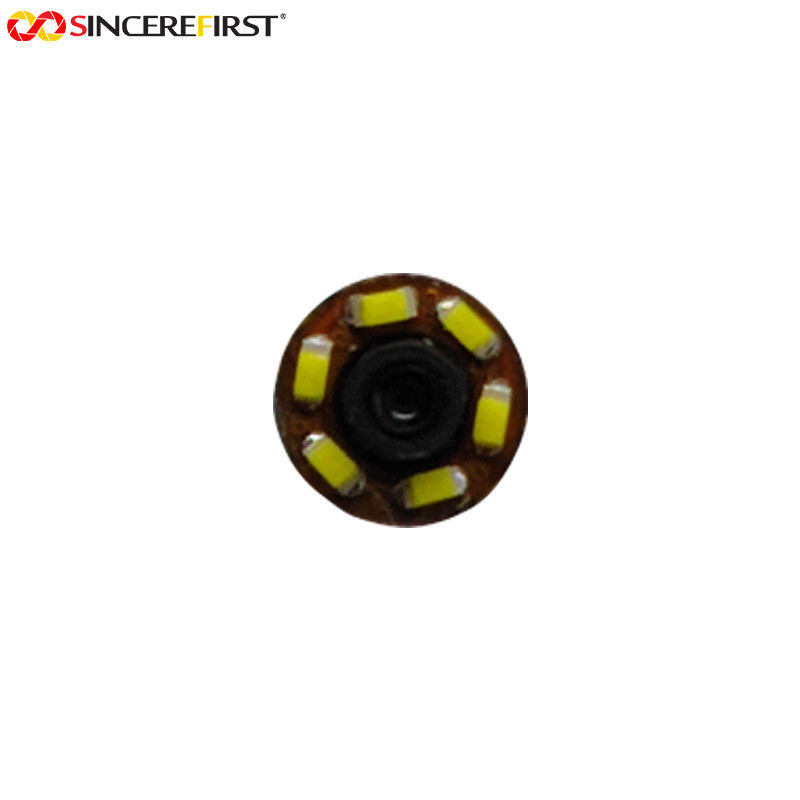

◆Night vision is supported with built-in LED ring

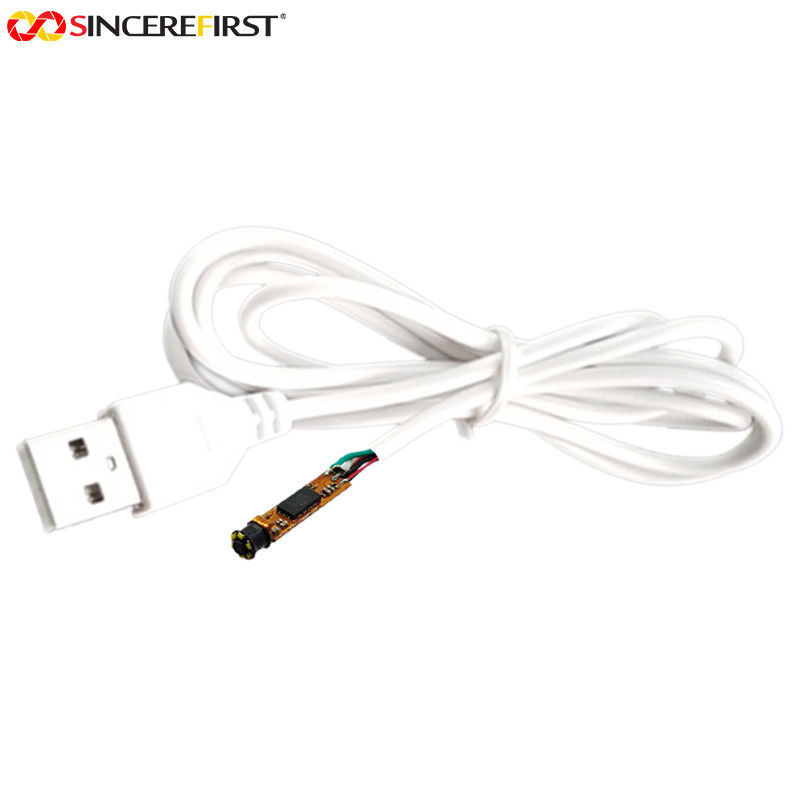

◆USB interface + Android interface
◆UVC compliant, Plug & Play
◆Support Linux, Android, Mac and Windows
◆Casing is supported
Applicaitons
One of the most common applications of endoscope camera modules is in the medical field. These modules are used to examine the internal organs, cavities, and tissues of the human body. They are also used in surgeries and procedures to get a clear view of the targeted area. With the help of endoscope camera modules, doctors can diagnose and treat several health conditions.
Endoscope camera modules are also widely used in the industrial sector. These modules are used for inspection and maintenance work in factories, power plants, and other industrial facilities. They can easily access the tight and cramped spaces within machines and equipment, enabling engineers to identify and repair any issues quickly. This not only saves time but also reduces downtime, ultimately increasing production and profits.
Other applications of endoscope camera modules include Pest control, wildlife observation, and underwater exploration. In pest control, endoscope cameras are used to inspect infested areas and identify the source of the problem. Wildlife observers use endoscope cameras to monitor the activities of animals in their natural habitat, thereby collecting valuable data for research purposes. Underwater divers use these modules to explore the depths of the sea and discover new species of marine life.
Our products are sold all over the world, you can rest assured.
