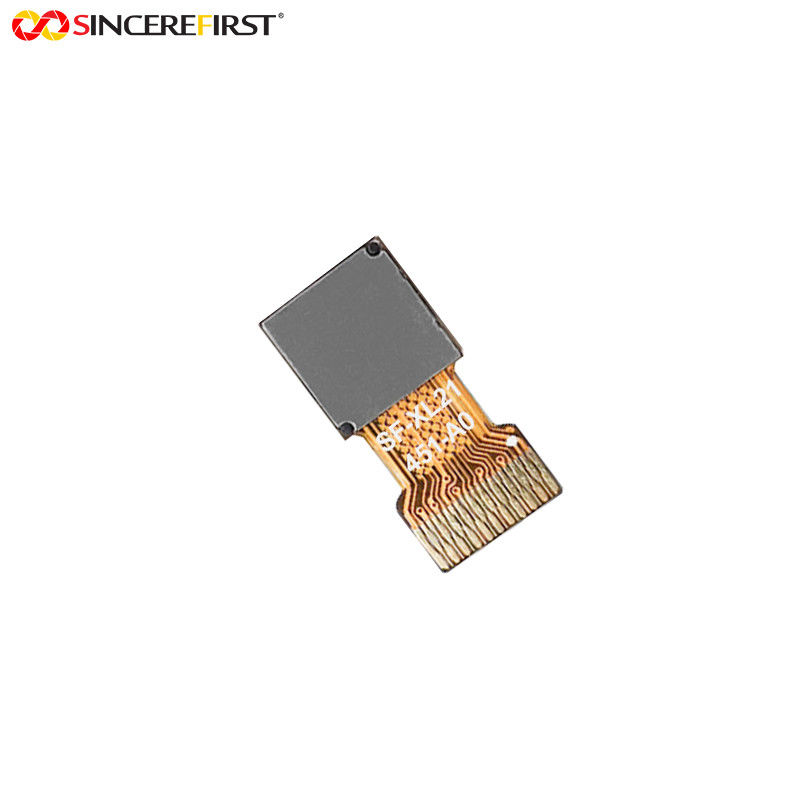

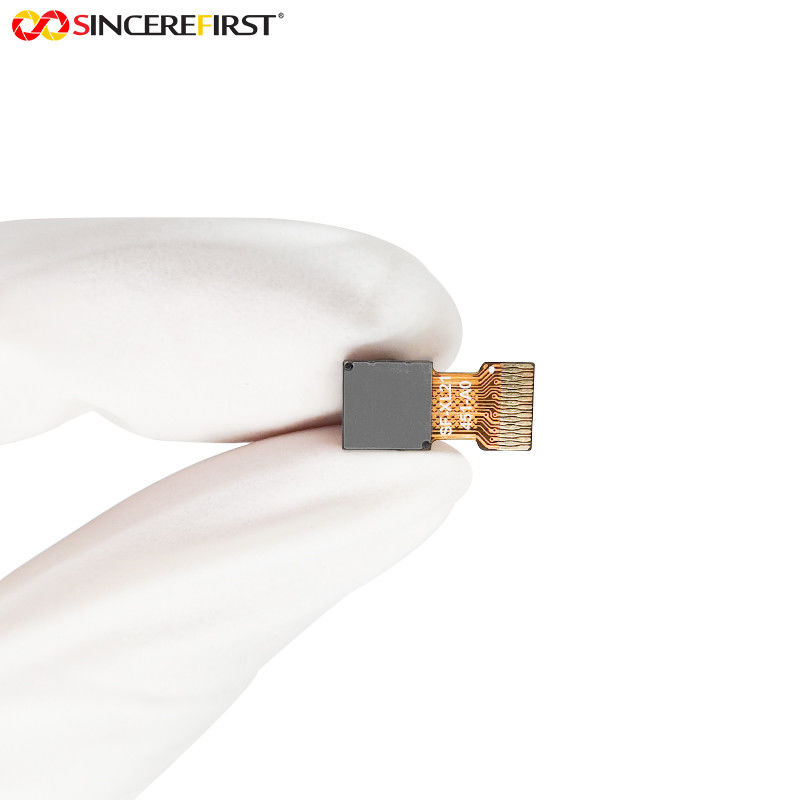

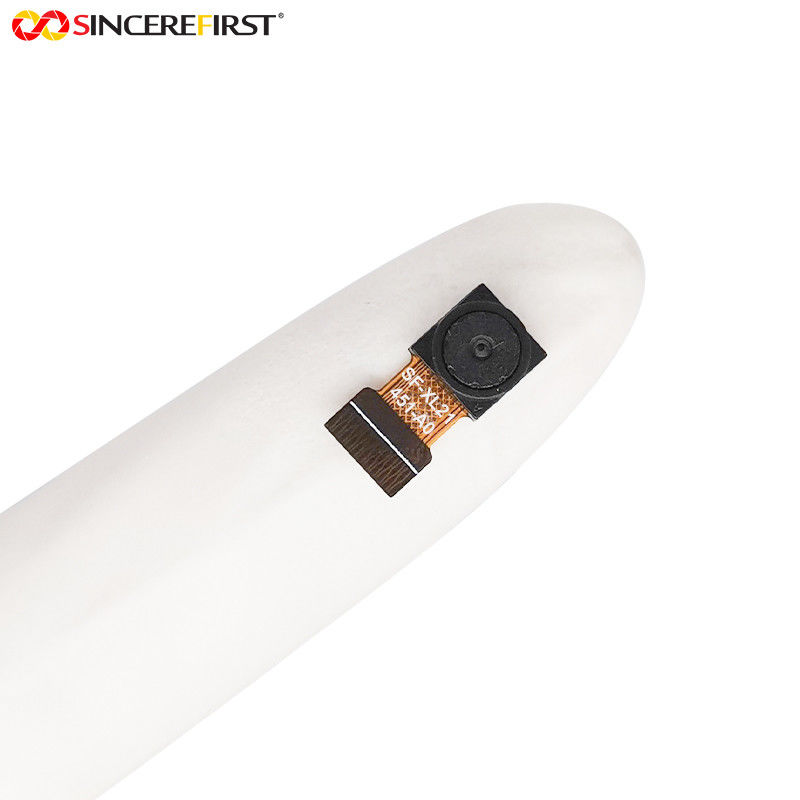

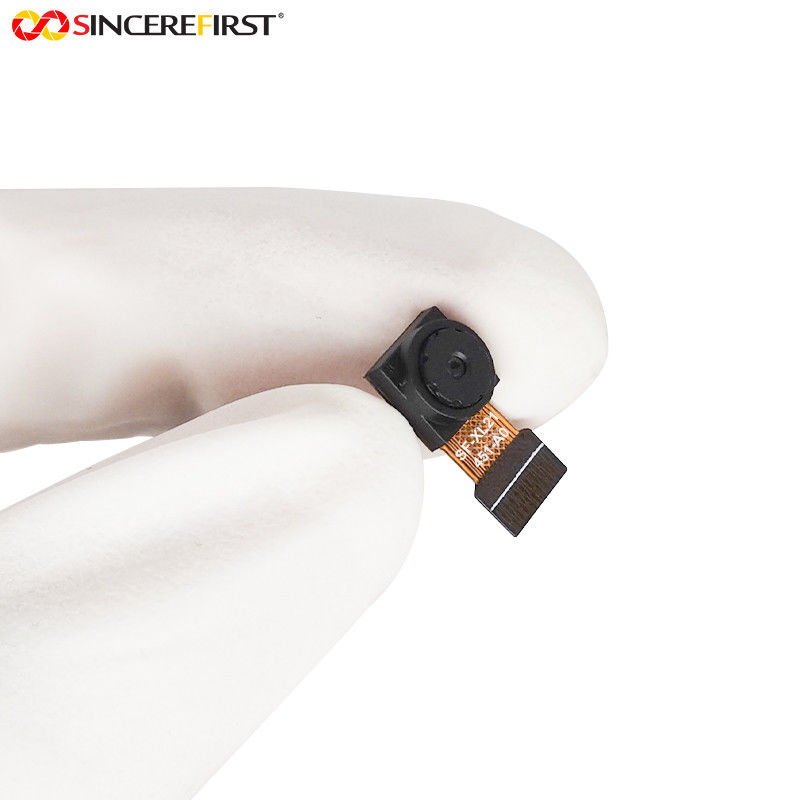

1/4 Inch OV9732 Camera Module CMOS Image Sensors For Smart Home

1/4 Inch OV9732 Camera Module CMOS Image Sensors For Smart Home

  • Highlight

    1/4 Inch Mobile Camera Module

    ,

    OV9732 Mobile Camera Module

    ,

    OV9732 cell phone camera module

  • Sensor
    OV9732
  • Focusing Length
    4.39mm
  • Fov(D)
    55°
  • TV Distortion
    <-1%
  • Test Connector
    FH26-23S-0.3SHW
  • Output Format
    RGB Output
  • Interface
    DVP
  • Optical Format
    1/4"
  • Resolution
    720p
  • Shutter Type
    Rolling Shutter
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF-XL21451-A0
  • Minimum Order Quantity
    5 pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

1/4 Inch OV9732 Camera Module CMOS Image Sensors For Smart Home

1/4 Inch OV9732 Camera Module CMOS Image Sensors For Smart Home





Specificaitons



Image Sensor ‎OV9732
Pixel 1mp
CFA (Chroma) RGB
Frame Rate Full @ 30 fps
Image Area 3888 x 2208 µm
Interface DVP
Optical Format 1/4"
Output Format RGB Output
Fov(H) 55°
TV Distortion <-1.0%





Description



OMNIVISION’s OV9732 is a low-power and ultra-compact CameraChip™ sensor that brings 720p high definition (HD) video to mainstream security systems and wireless battery-powered smart-home cameras. Compared to the previous generation OV9712, the OV9732 is 35 percent smaller and delivers dramatically improved pixel performance.

The OV9732 CameraChip™ sensor utilizes OmniPixel®3-HS high sensitivity 3.0 µm pixel technology to bring industry-leading scene reproduction to a wide range of security and lifestyle camera applications that operate in extremely high- and low-light conditions. The sensor’s narrow 9-degree chief ray angle (CRA) supports consumer-grade optical lens systems and reduces image artifacts for enhanced performance.

When operating in low-power mode, the 1/4-inch OV9732 requires just 99 mW to capture 720p HD video at 30 frames per second.





Features



◆Support for image sizes:
– Full size (1280×720)
– VGA (640×480)
– 2×2 RGB binning (640×360)

◆Support for output formats:
– 10-bit RAW output with 1-lane MIPI and DVP

◆On-chip phase lock loop (PLL)

◆Programmable controls for:
– Frame rate
– Mirror and flip
– Gain/exposure
– Windowing

◆Support for horizontal and vertical sub-sampling

◆Low power mode (LPM) function

◆Capable of maintaining register values at software power down

◆Standard SCCB interface

◆GPIO tri-state configurability and programmable polarity

◆FSIN

◆Image quality control:
– Defect pixel correction (DPC)
– Automatic black level calibration (ABLC)





Applicaitons



Control Systems

Monitoring cameras
