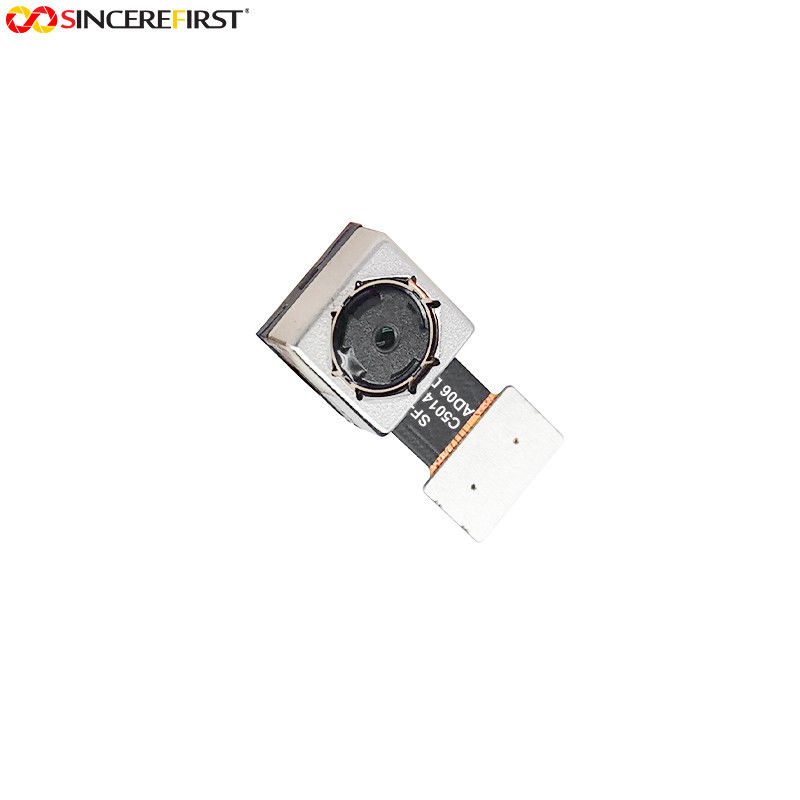

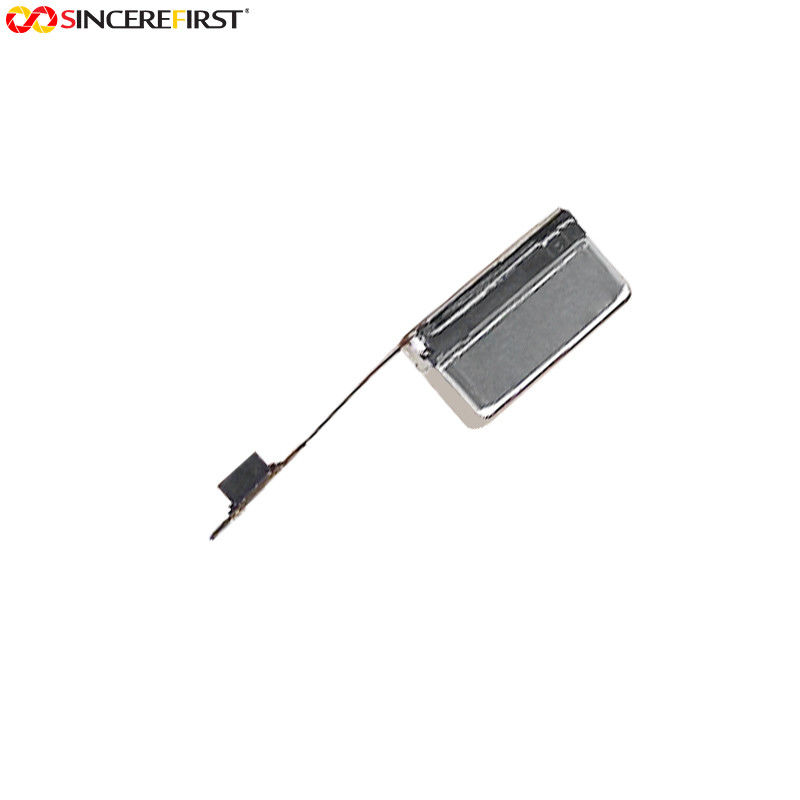

5 Megapixel OV5640 Af Auto Focus Raspberry Pi DVP Camera Module
Specificaitons
| Image Sensor | OV5640 |
| Optical Size | Type 1/4" |
| Pixel Size | 1.4 μm x 1.4 μm |
| Focusing Range | 10cm to Infinity |
| Focal Length | 3.37mm |
| F Number | 2.8 |
| Active Array Size | 2592 x 1944 |

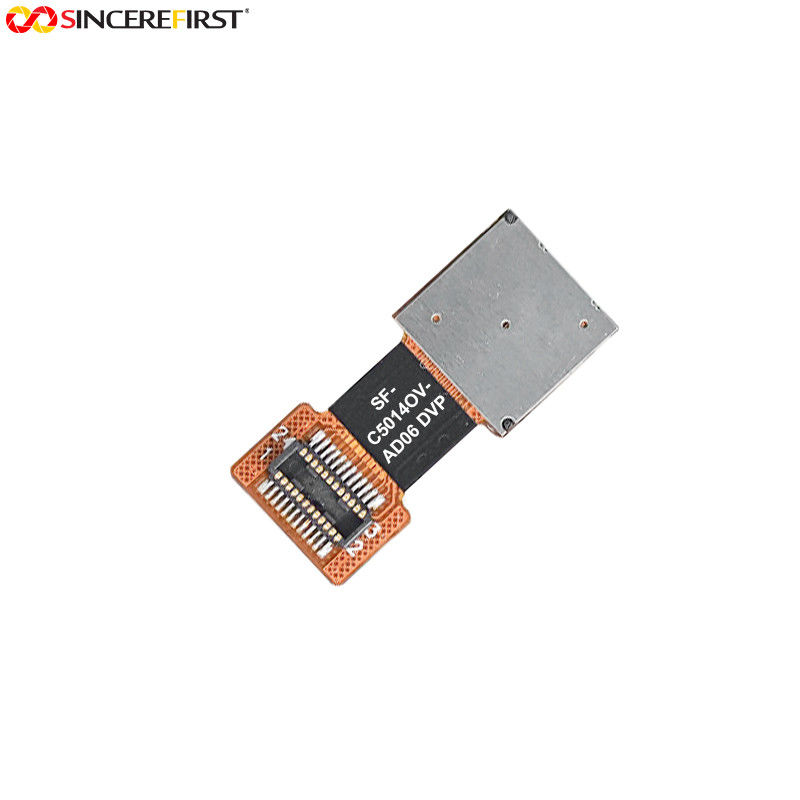

| Connector | AXK824145 |
| Fov(D) | 67° |
| TV Distortion | ＜1% |
Description
The OV5640 image sensor is capable of taking 2592x1944 (5MP) images. The sensor supports Grayscale, RGB565, JPEG, YUV422, and Bayer image formats. Depending on the resolution you can achieve up to 120 FPS frame rates.
Features
◆1.4 µm x 1.4 µm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise, improved quantum efficiency)
◆optical size of 1/4"
◆automatic image control functions: automatic exposure control (AEC), automatic white balance (AWB), automatic band filter (ABF), automatic
50/60 Hz luminance detection, and automatic black level calibration (ABLC)
◆programmable controls for frame rate, AEC/AGC 16-zone size/position/weight control, mirror and flip, cropping, windowing, and panning
◆image quality controls: color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling, and noise canceling
◆support for output formats: RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422, and compression
◆support for video or snapshot operations
◆support for internal and external frame synchronization for frame exposure mode
◆support for LED and flash strobe mode
◆support for horizontal and vertical sub-sampling, binning
◆support for minimizing artifacts on binned image
◆support for data compression output
◆support for anti-shake
◆standard serial SCCB interface
◆digital video port (DVP) parallel output interface and dual lane MIPI output interface
◆embedded 1.5V regulator for core power
◆programmable I/O drive capability, I/O tri-state configurability
◆support for black sun cancellation
◆support for images sizes: 5 megapixel, and any arbitrary size scaling down from 5 megapixel
◆support for auto focus control (AFC) with embedded AF VCM driver
◆embedded microcontroller
◆suitable for module size of 8.5 x 8.5 x <6mm with both CSP and RW packaging
Applicaitons
digital cameras
imaging tools used in medical,
camera modules
night vision tools like radar
thermal imaging devices
sonar
