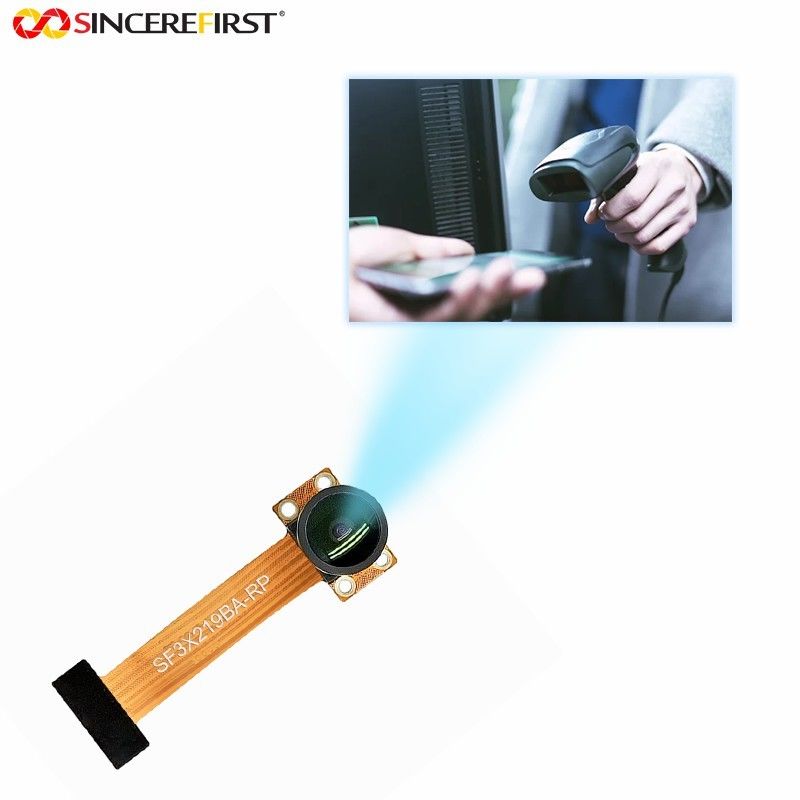

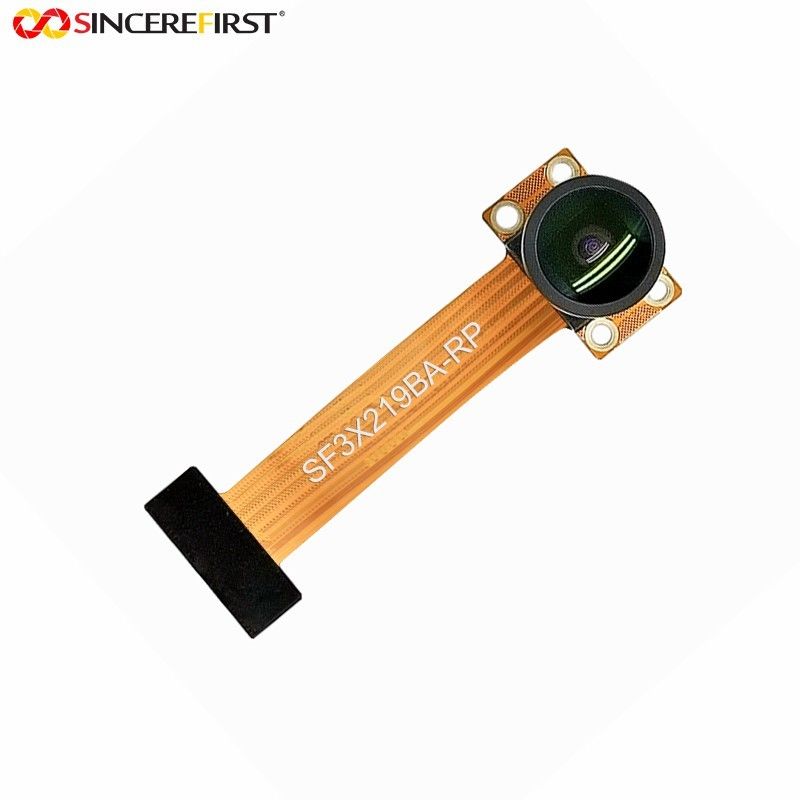

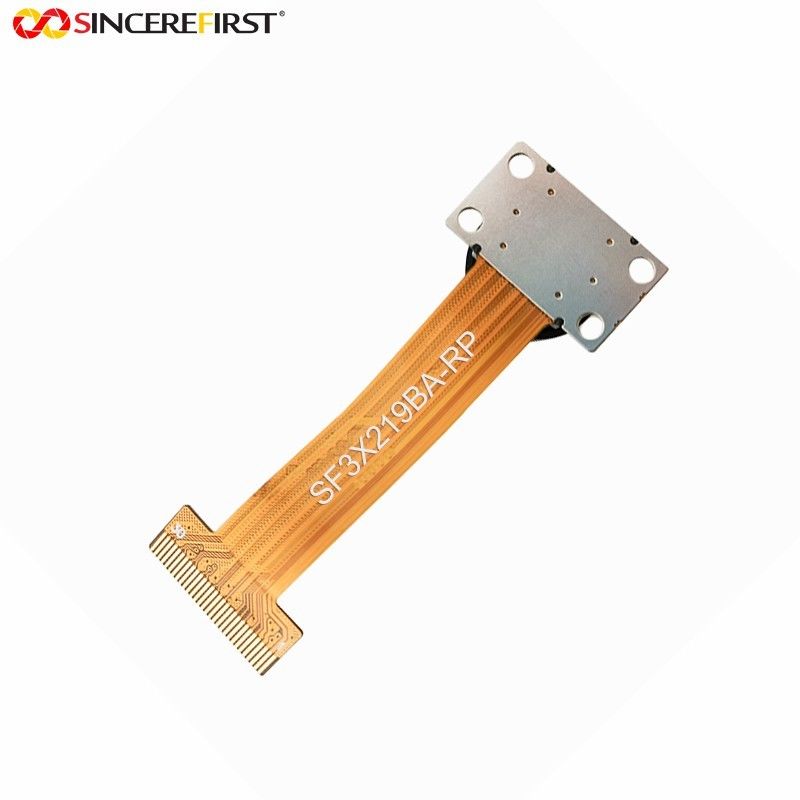

Mini 8mp Sony IMX219 Resolution Image Sensor Raspberry Pi Camera Module
Specificaitons
| Lens Elements | 4P+1IR |
| Interface | Raspberry Pi Camera Module |
| Output format | 10-bit RGB RAW |
| DOVDD | 1.8±0.1V |
| DVDD | 1.2±0.1V |
| AVDD | 2.8±0.1V |
| Sensor slave address | W/R:0X20/0X21 |
| EEPROM | optional |
| Place of Origin | Guangdong |
| VCM Driver | 3927E |
Description
The IMX219 – 8 MP Camera Sensor is the IMX219 color sensor from Sony available as a drop-in part compatible with the Raspberry Pi v2 board or the ArduCam Nvidia board (B0187|NS). The sensor has a 1/4.0″ optical format, which combined with the pixel size of 1.12 µm x 1.12 µm, results in the 8 MP (3280 x 2464) image.
Features
◆Sensor type: Sony IMX219 Color CMOS 8-megapixel
◆Sensor size: 3.674 x 2.760 mm (1/4″ format)
◆Pixel Count: 3296 x 2480 (active pixels)
◆Pixel Size: 1.12 x 1.12 um
◆Lens: M12/CS mount customizable, telephoto to fisheye
◆Angle of View: customizable
◆Video: 1280×720 binned and cropped up to 60fps
◆1080P cropped up to 30fps
◆1640×1232 full FOV binned mode, up to 30fps
◆3280×2464 full FOV, allegedly 0.1fps to 15fps
SCCB control interface for register programming
Applicaitons
face recognition
smart vehicle access
license plate recognition
road mark detection
