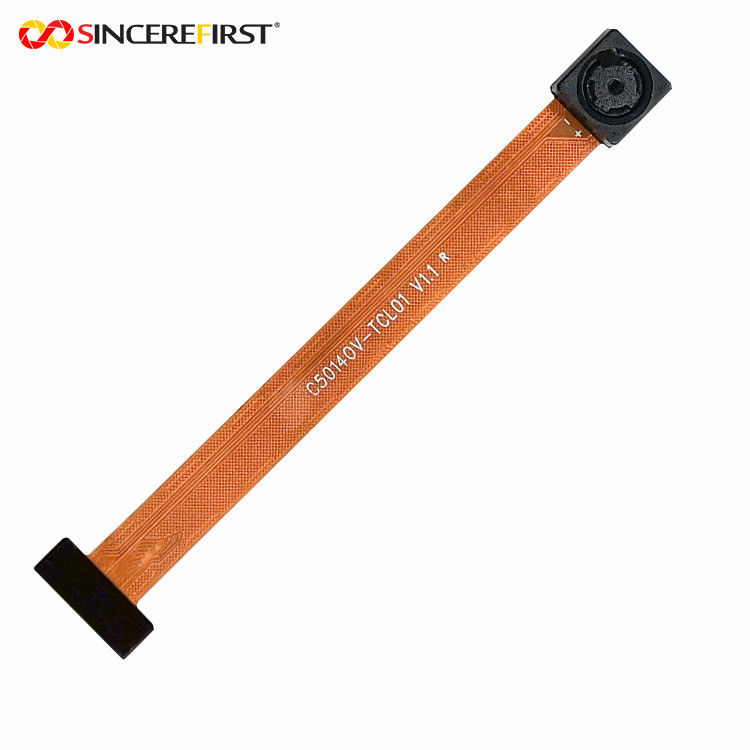

1/4" Fixed Focus DVP OV5640 5 Mega Pixel HD Full CMOS Camera Module
Specificaitons
| Interface | DVP |
| Focus range | 10cm to ifinity |
| Output format | YUV output |
| TV Distortionce | <1% |
| Warranty | 10 years |
| Application | Outdoor, Indoor |
| AVDD | 2.8V |
| DVDD | 1.5V |
| DOVDD | 1.8V |
| Glue | 8.0*8.0*0.1 |
Description
This SincereFirst camera module is based on OmniVision OV5640 CMOS Image Sensor, the cost-effective CMOS imaging solution that enables high-speed image capture capabilities, and includes variable functions, such as gain, frame rate, and exposure while maintaining low power consumption. The sensor has a 1/4 Inch optical format, which combines with the pixel size of 1.4um(H) x 1.4um(V), resulting in the 5.0 Megapixel support at 30 fps 2592H x 1944V for maximum video performance.
Features
◆2592*1944 resolution, high quality image sensor
◆DVP / MIPI interface
◆Electronic rolling shutter
◆Fixed / Auto focus
◆Fully customizable
Applicaitons
smartphones
tablets
PC multimedia
embedded system
robotics
drones
medical equipment
artificial intelligence
