3MP ESP32 Cam OV3660 Cmos Sensor Wide Angle Fisheye Camera Module For ATM
Product Description:
This is a fisheye camera module based on ESP32. The camera module (ov3660) with 3 million pixels , DFOV 130 ° and shoot 2048x1536 resolution, featuring ultra-low power consumption design.
Features:
- 1.4 μm x 1.4 μm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise, improved quantum efficiency)
2. optical size of 1/5*
3. automatic image control functions:automatic exposure control (AEC), automatic white balance (AWB),automatic flicker detection, and automatic black level callibration (ABLC)
4. programmable controls for frame rate,AEC/AGC 16-zone size/position/weight control, mirror and flip, cropping, windowing. and panning
5. image quality controls: color saturation,hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling, and noise canceling
6. support for output formats:RAW RGB, RGB565/555/444.CCIR656,YCbCr422,and compression
7. support for LED and flash strobe mode
8. support for horizontal and vertical sub-sampling, binning
9. support 2x2 binning with binning filter to minimize binning artifacts
10. support for data compression output
11. standard serial SCCB interface (see section 2.10 for details)
12. digital video port (DVP) parallel output interface
13. embedded 1.5V regulator for core power
14. programmable I/O drive capability,I/Otri-state configurability
15. support for black sun cancellation
16. support for images sizes: 3 megapixel and any arbitrary size scaling down from 3 megapixel
17. suitable for module size of 6.5 x 6.5x<6mm
Technical Parameters:
| Parameter |
Value |
| Lens Size |
1/5Inch |
| Application |
Smart Industry, Smart Agriculture, Smart Home |
| Focus |
Fixed Focus |
| View Angle |
130° |
| Interface |
DVP |
| Image Sensor |
CMOS |
| Array Size |
2048×1536 |
| Resolution |
3MP |
| Image Sensor |
OV3360 |
| Feature |
Wide Angle |
Customized Service:
We can customize FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, firmware, etc.
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Why Choose us:
Applications:
Machine Vision
Barcode Scanning
Inspection
About US:
Cooperative Brands & Customers:

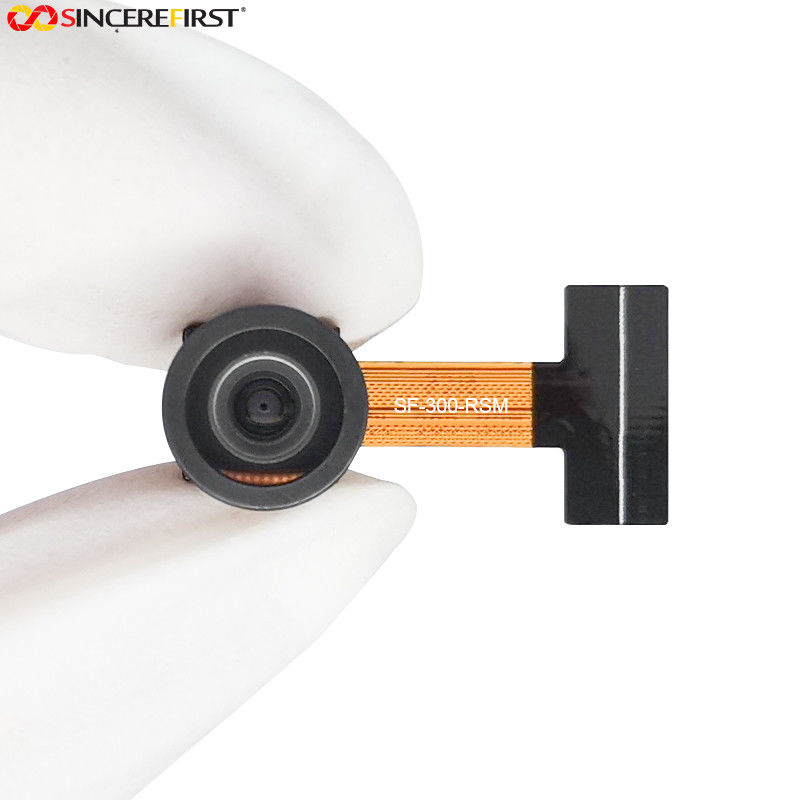

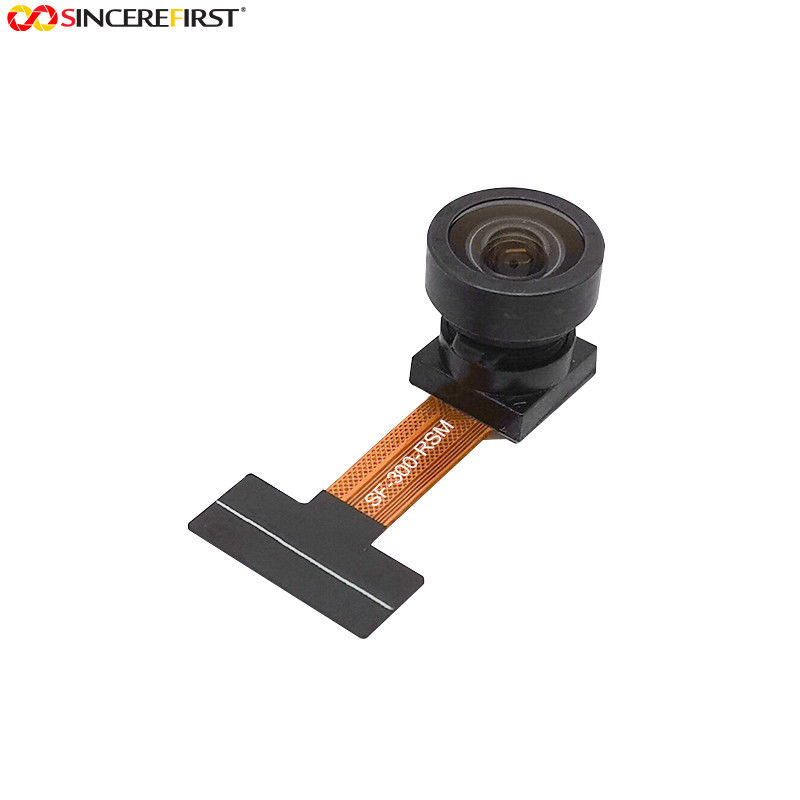

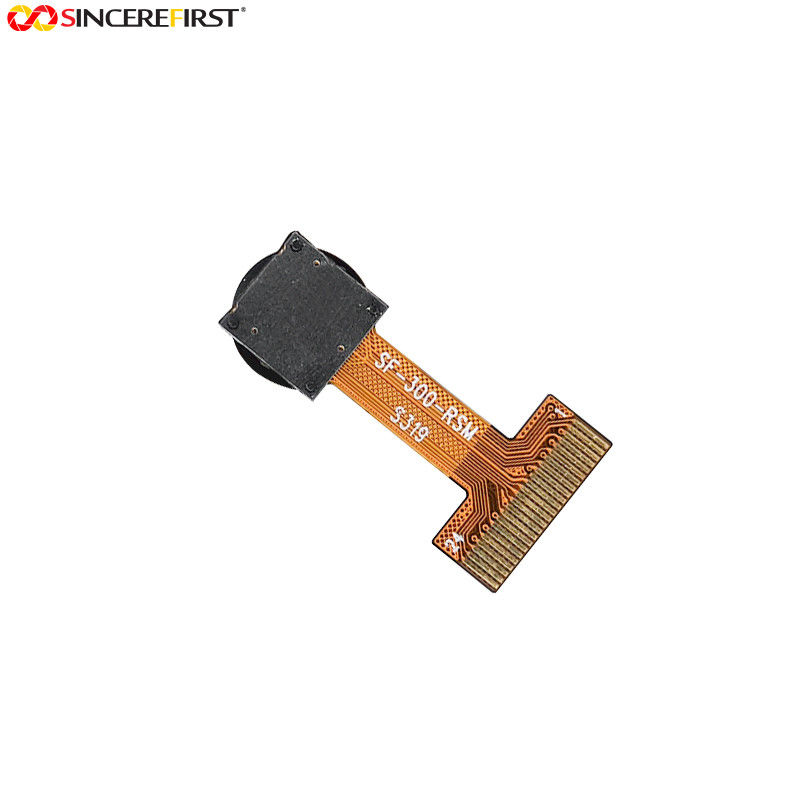

Details Pictures:
