The GC0308 features 640V x 480H resolution with 1/6.5-inch optical format, and 4-transistor pixel structure for high image quality and low noise variations. It delivers superior image quality by powerful on-chip design of a 10-bit ADC, and embedded image signal processor. The full scale integration of high-performance and low-power functions makes the GC0308 best fit the design, reduce implementation process, and extend the battery life of cell phones, PDAs, and a wide variety of mobile applications. The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB(Auto White Balance) control. It provides various data formats, such as Bayer RGB, RGB565, YCbCr 4:2:2. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor. The product is capable of operating at up to 30 frames per second at 24MHZ clock in VGA mode, with complete user control over image quality and data formatting.
| Parameter | Details |
|---|---|
| Sensor | GC0308 |
| View Angle | 60° |
| Sensor Type | 1/1.8 inch |
| Interface | MIPI |
| Image Sensor | CMOS |
| Focus | Fixed Focus Lens |
| Resolution | 640*480 |
| Transfer Rate | 30FPS |
| Place of Origin | Guangdong, China |
| Output Format | YUV Output |
We can customize FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Cellular Phone Cameras
Notebook and desktop PC cameras
PDAs
Toys
Digital still cameras and camcorders
Video telephony and conferencing equipments
Security systems
Industrial and environmental systems
Bar code reader
Cooperative Brands & Customers:

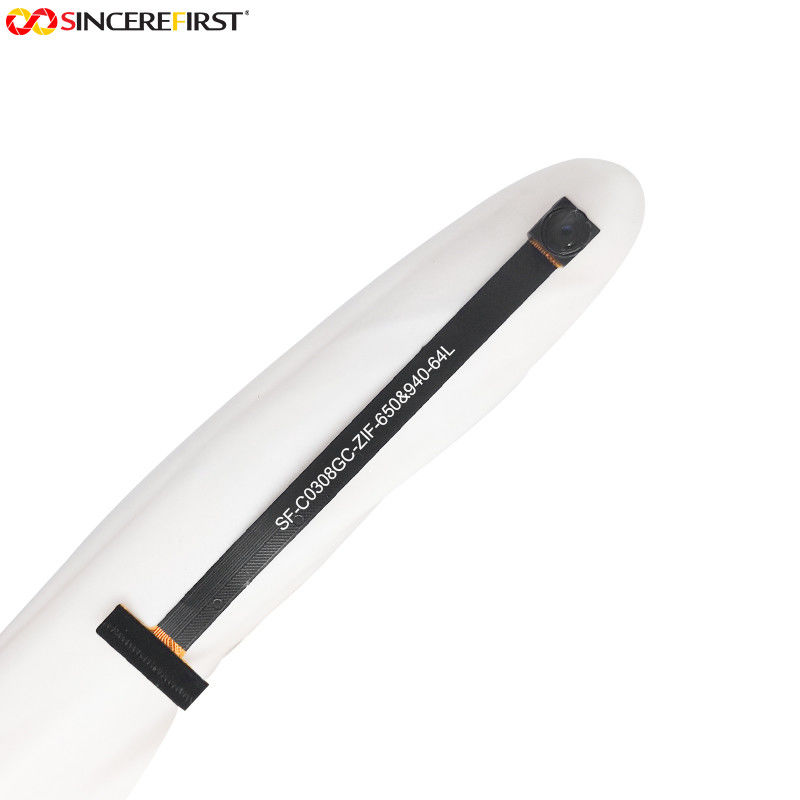

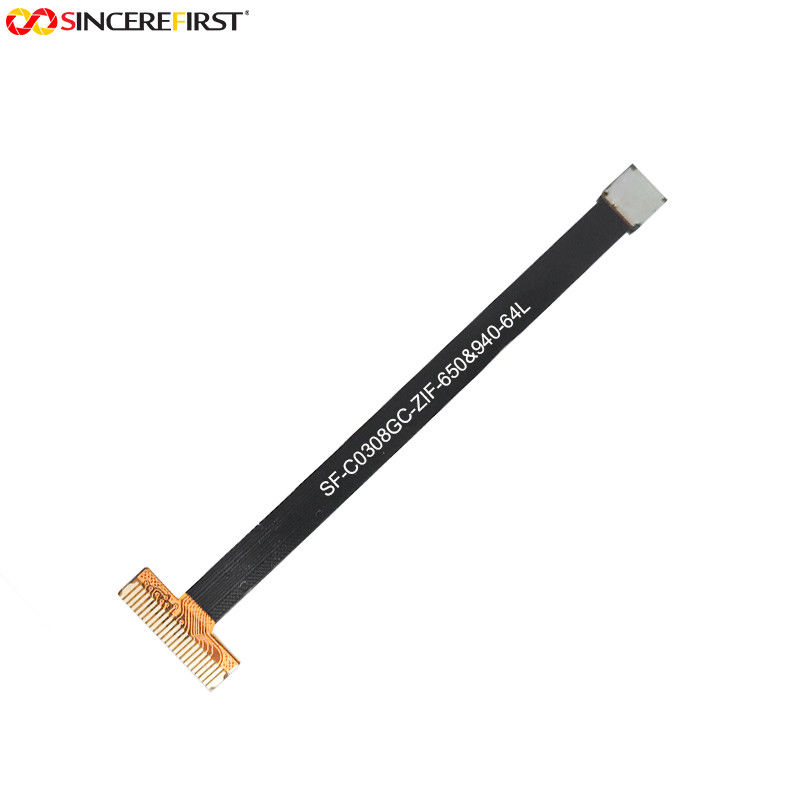

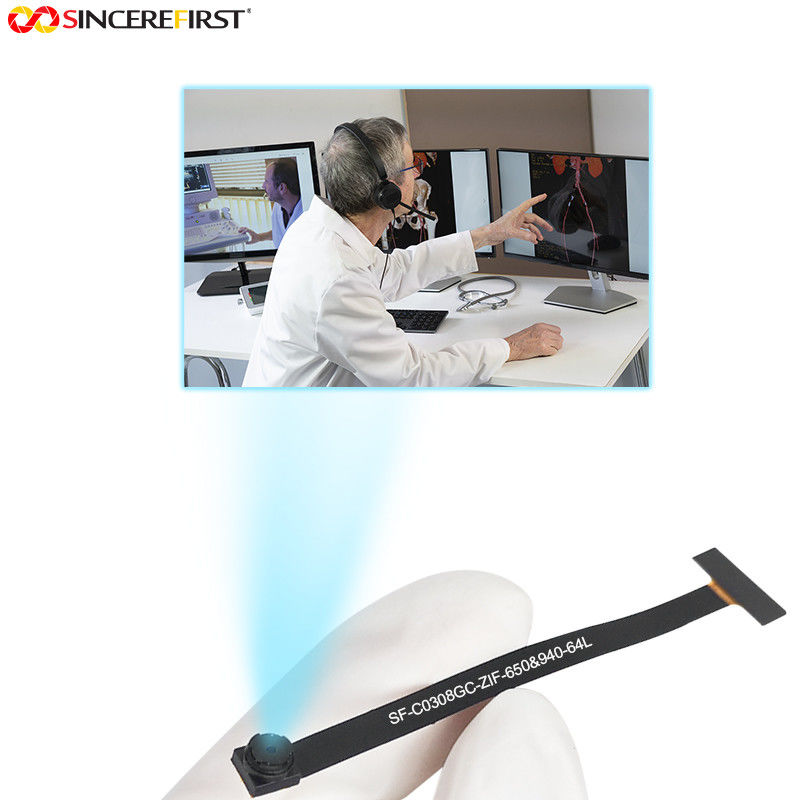

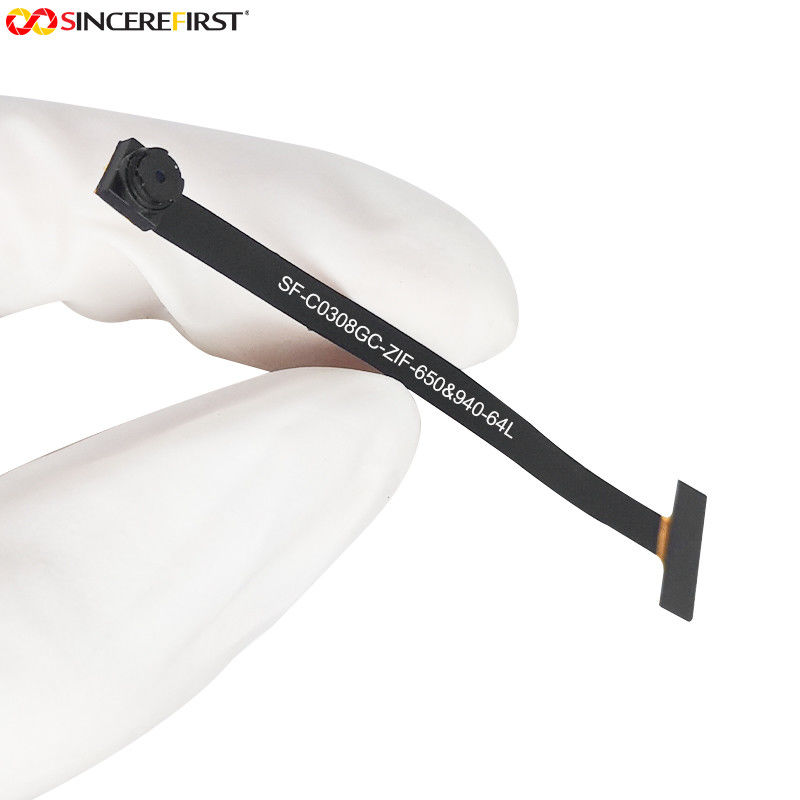

Details Pictures:
Our products are sold all over the world, you can rest assured.
