IMX298-0AQH5-C is a diagonal 6.521 mm (Type 1/2.8) 16 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. By introducing spatially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.5 V, digital 1.1 V and 1.8 V for input/output interface andachieves low power consumption.
1. Back-illuminated and stacked CMOS image sensor Exmor RS
2. Phase Detection Auto Focus (PDAF)
3. Single Frame High Dynamic Range (HDR) with equivalent full pixels
4. High signal to noise ratio (SNR)
5. Full resolution @30 frame/s (Normal / HDR). 4K2K @30 frame/s (Normal / HDR) 1080p @60 frame/s (Normal / HDR)
6. Output video format of RAW10/8, COMP8
7. Pixel binning readout and H/V sub-sampling function
8. Advanced Noise Reduction (Chroma noise reduction and RAW noise reduction)
9. Independent flipping and mirroring
10. CSI-2 serial data output (MIPI 2lane/4lane, Max. 1.5 Gbps/lane, D-PHY spec. ver. 1.1 compliant)
11. 2-wire serial communication
12. Two PLLs for independent clock generation for pixel control and data output interface
13. Dynamic Defect Pixel Correction
14. Power-on reset function
15. Dual sensor synchronization operation
16. 9 K bit of OTP ROM for users
17. Built-in temperature sensor

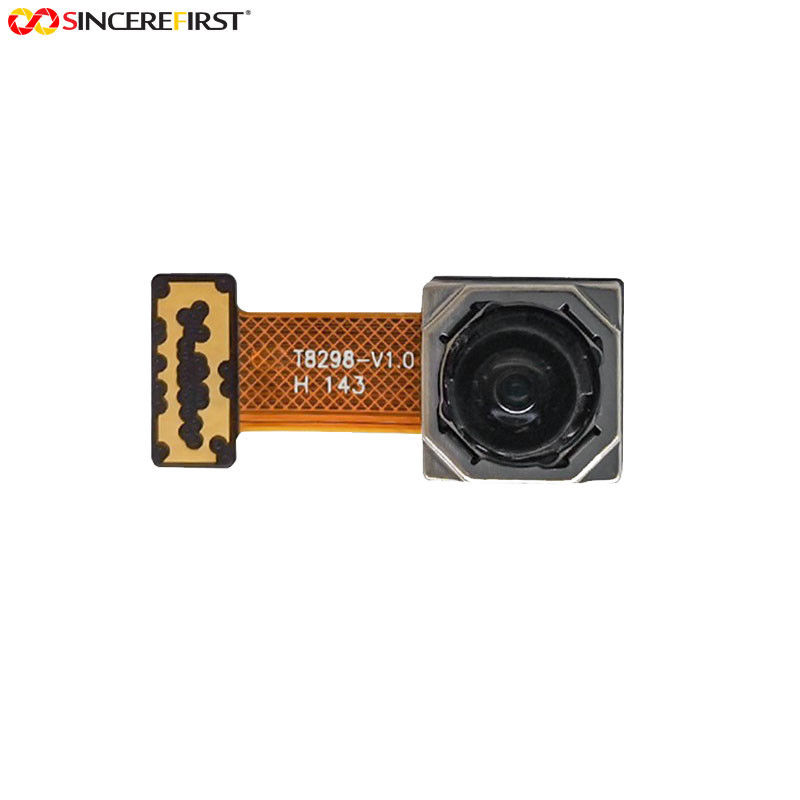

| Focus Type | Auto Focus |
| View Angle | 117° |
| Focus Range | 10cm-∞ |
| Sensor Size | 1/3.06inch |
| Sensor Type | Sony IMX298 |
| Lens | G7623A |
| Certificate | CE, FCC, ISO, REACH |
| Pixel | 16MP |

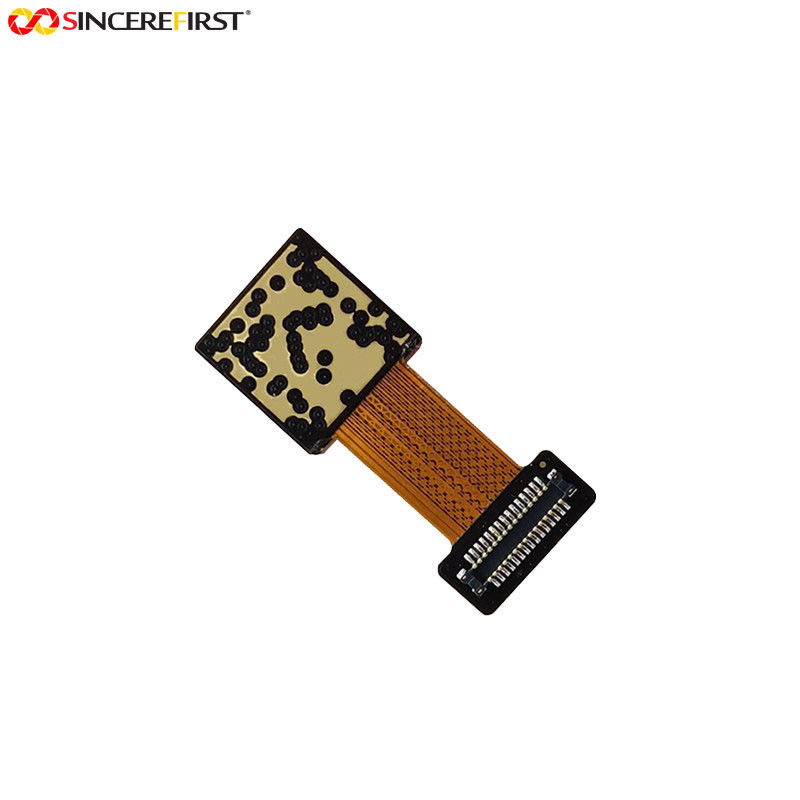

| Pinout | 30pin |
| Features | Wide Angle |
We can customize FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Machine Vision
Inspection Tester
Video Conference System
