8MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision

8MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision

  • Product Name
    Micro USB IMX678 CMOS Camera Module
  • Sensor Type
    IMX678 Image Sensor
  • Pixel
    8MP
  • Focus Range
    1cm~Infinity
  • Pixel Size
    2μm*2μm
  • Sensor Size
    1/1.8 Inch
  • Feature
    4K Resolution
  • Type
    Customizable Lens Camera Module
  • Keyword
    CMOS Camera Module
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF8A987-88
  • Minimum Order Quantity
    5pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

8MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision

8MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision

8MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision 0



Product Description:

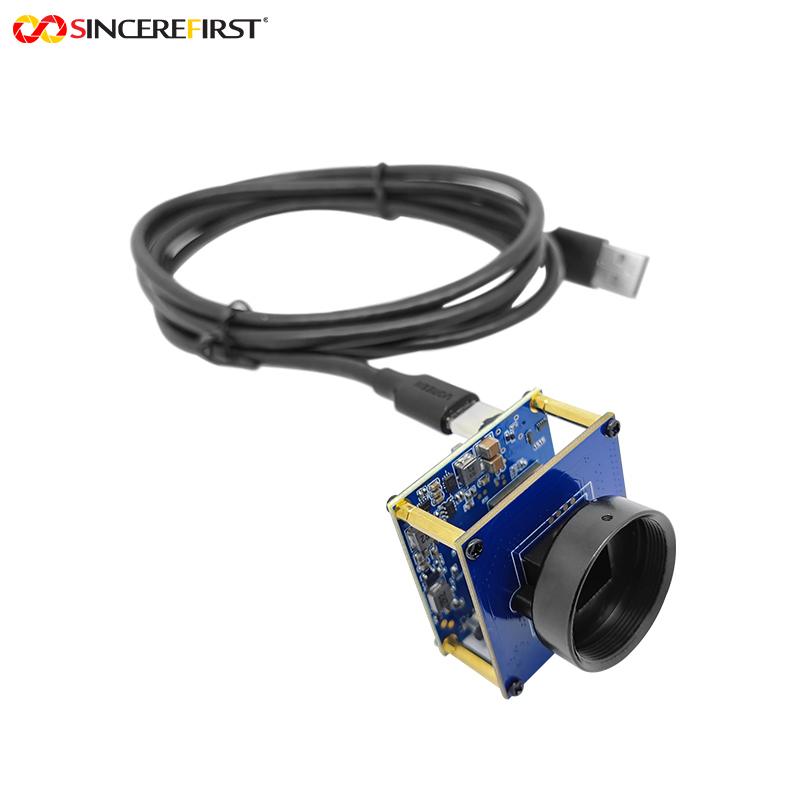

This is 8MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision designed for high-definition image capture and PC-based vision applications. It supports MJPG / YUY2 / H.264 output formats, with up to 3840×2160@60fps in MJPG and H.264 modes.

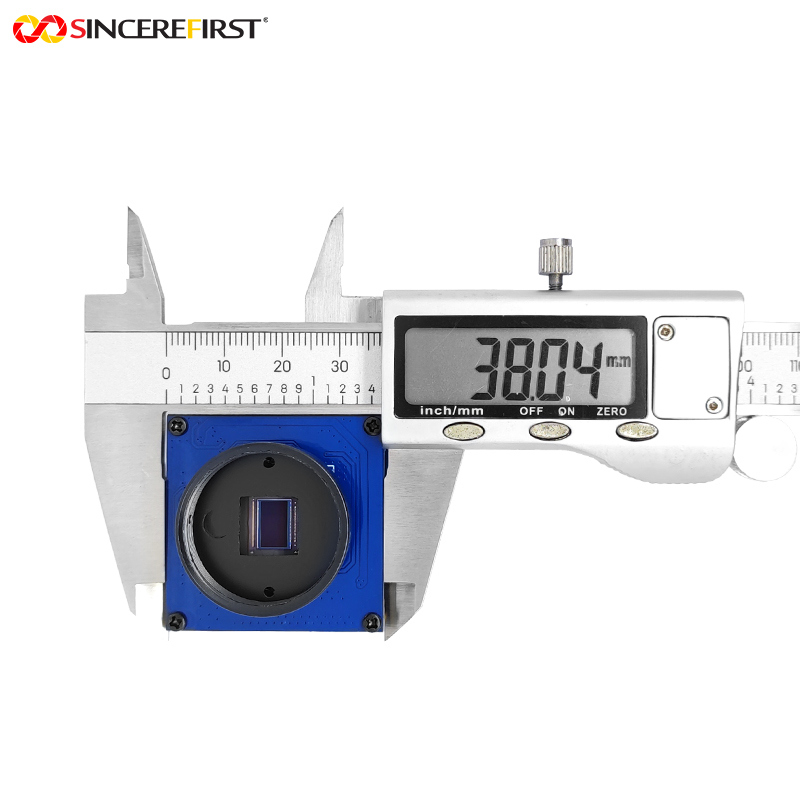

With its 38×38mm PCB structure, USB3.0 Type-C interface, 1cm to infinity imaging distance, and M12 / C/CS lens support, this module is suitable for industrial vision systems, OCR cameras, high-definition inspection devices, laboratory observation, and OEM 4K USB camera integration.

Features:

  1. 8MP Sony IMX678 Sensor — suitable for high-detail 4K image capture.
  2. 4K 3840×2160@60fps — supports high-resolution real-time preview in MJPG and H.264 modes.
  3. USB3.0 Type-C Interface — provides high-bandwidth connection for 4K USB image transmission.

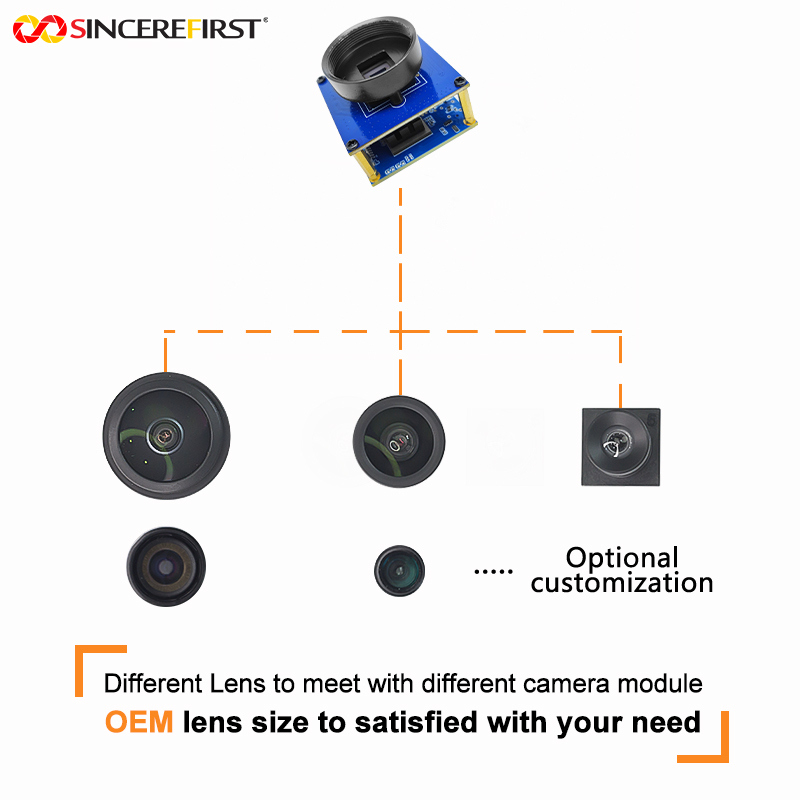

  4. M12 / C/CS Lens Support — allows lens selection based on FOV, working distance, and target size.
  5. MJPG / YUY2 / H.264 Output — supports different preview, recording, and processing workflows.
  6. UVC Driver-Free Protocol — suitable for USB host systems that support UVC.
  7. SDK & Software Support — C++ image acquisition code and development through DirectShow, Halcon, OpenCV, and LabView can be supported.





Why Choose SF8A987-88?

This model is suitable for OEM projects that need a 4K60FPS USB3.0 camera module with flexible lens selection and PC-based software integration. Compared with 1080P USB modules, it provides higher image detail for inspection, OCR, object observation, and recording. Compared with fixed-lens USB camera modules, its M12 / C/CS lens direction gives more flexibility for changing FOV and working distance. Compared with MIPI modules, it is easier to evaluate for PC-based vision systems, industrial computers, and UVC-supported host devices.

Technical Parameters:

Product Name

Customizable Lens Compact Camera Module

Sensor

IMX678

Piexl 8MP

Resolution

4K

Output Interface

USB3.0

Sensor Size

1/1.8 Inch

Keywords

CMOS Camera Module

Warranty

10 Years

Focusing Range

1cm~Infinity

Brand Name

SINCEREFIRST



Applications:

  1. 1. Industrial Vision Inspection Preview: Facilitates vision system calibration on automated production lines. Provides real-time, low-latency video previews to help engineers quickly adjust camera angles and lighting parameters, ensuring stable operation of subsequent high-precision algorithms.

  2. 2. OCR and Text Recognition Image Acquisition: Enables digital reading of industrial nameplates or logistics labels. Leverages high resolution and distortion-free lenses to accurately freeze and extract character information from complex backgrounds, fulfilling automated data entry requirements.

  3. 3. Product Appearance Checking: Supports automated surface quality control at the end of manufacturing. Combines uniform illumination with HD imaging to intuitively reveal surface scratches, dents, or color variations, ensuring consistent product quality before shipment.

  4. 4. Machine Status Observation: Optimizes remote monitoring for heavy machinery or instrument panels. Continuously captures indicator lights, dial readings, or mechanical movements to achieve non-contact, real-time status monitoring and early anomaly warning.

  5. 5. Laboratory Sample Observation: Accelerates microscopic recording for scientific analysis or medical samples. Relies on exceptional macro focus and color reproduction to clearly capture minute details on petri dishes or slides, providing reliable visual evidence for subsequent research.


8MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision 1

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.

4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

8MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision 2



Cooperative Brands & Customers:

8MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision 3



Why Chooes US:

8MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision 4


Detail Pictures:

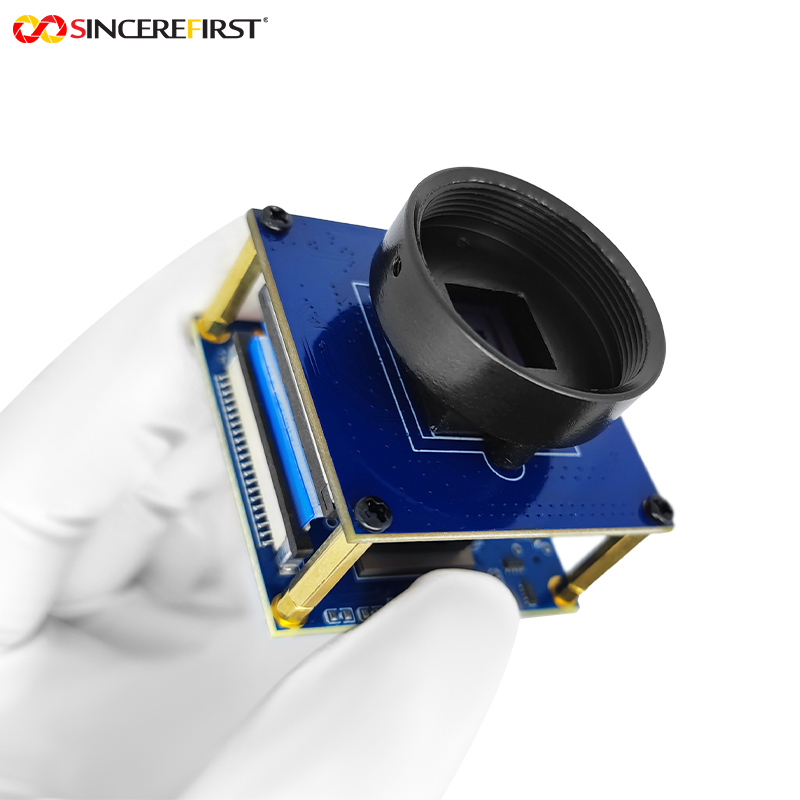

8MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision 58MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision 68MP IMX678 USB3.0 4K60 Camera Module with M12 / C/CS Lens Support for Industrial Vision 7
