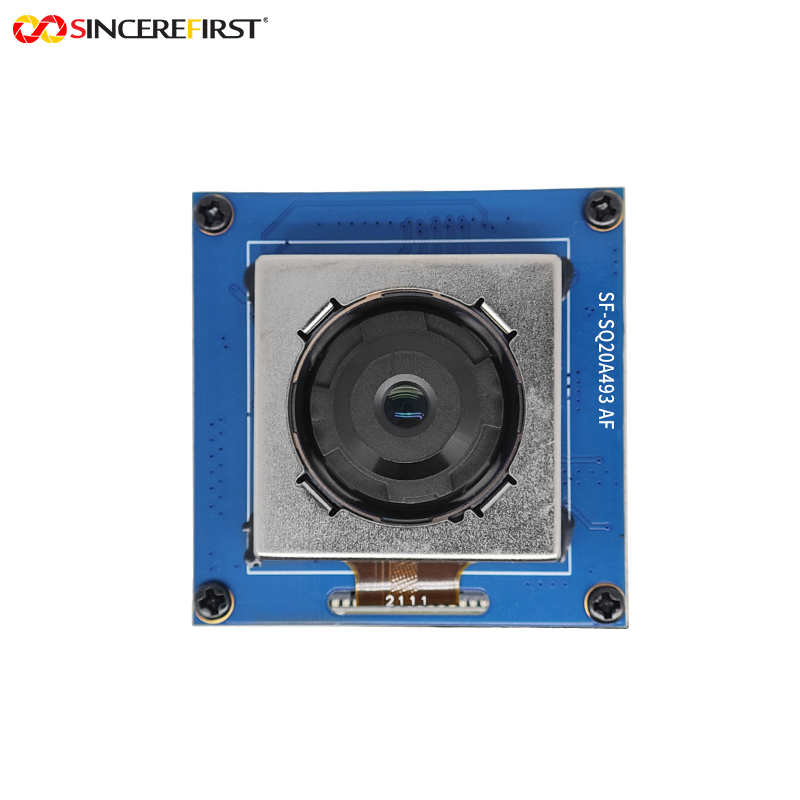

20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module

20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module

Products - CMOS Camera Module
  • Product Name
    Mini USB IMX283 CMOS Camera Module
  • Sensor Type
    IMX283 CMOS
  • Pixel
    20MP
  • Focus Range
    10cm~Infinity
  • Pixel Size
    2.4μm*2.4μm
  • Sensor Size
    1 Inch
  • Feature
    4K Resolution
  • Type
    IoT Vision Camera Module
  • Keyword
    CMOS Camera Module
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF-SQ20A493-AF
  • Minimum Order Quantity
    5pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module

  • 20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module
  • 20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module
  • 20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module
  • 20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module
  • 20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module
  • 20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module
Get Price Contact Now

20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module

20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module 0



Product Description:

This is a 20MP UHD Sony IMX283 CMOS high-speed USB3.0 camera module. It is equipped with the Sony IMX283 CMOS color image sensor, featuring 20MP high pixels and capable of outputting 3840x2160 4K ultra-high-definition resolution. With a maximum supported frame rate of 20FPS, it can stably present delicate and smooth dynamic images. The sensor size reaches 1 inch, and paired with a large pixel size of 2.4μm x 2.4μm, it effectively increases light input and image signal-to-noise ratio, ensuring imaging quality in low-light environments.​
In terms of image output and processing, the module supports multiple formats including MJPC, YUY2, H.264, and H.265. Among them, H.264/H.265 encoding can significantly reduce data transmission bandwidth while balancing image quality and efficiency. The focusing system supports a wide focusing range of 10cm ~ Infinity and is equipped with an auto-focus function. The lens integrates a 650nm IR filter, which can effectively filter out infrared interference and restore true colors.​
The physical size of the module is 38mm x 38mm, with a compact design that facilitates integration. It adopts a Type-C interface, and the transmission rate meets the USB3.0 standard, enabling efficient and stable data transmission. Meanwhile, it is compatible with the UVC protocol and can be adapted to most mainstream operating systems including Raspberry Pi, Windows, Linux, and MacOS. It also supports SDK development. The production process adopts SMT (ROHS) environmental protection technology and AA assembly process, ensuring product quality and consistency.

Features:

  1. Best Image Quality: Equipped with a 1-inch large-format Sony IMX283 sensor, combined with 20-megapixel resolution and 4K definition, it can output high-quality images with rich details and extremely low noise, meeting professional-level imaging requirements.
    2. Flexible Function Adaptation: It supports multi-format output of MJPC/YUY2/H.264/H.265 to meet encoding needs in different scenarios. The wide-range auto-focus from 10cm to Infinity adapts to various focusing requirements.
    3. Wide Compatibility: Following the UVC standard protocol, it can be directly compatible with mainstream desktop systems and also supports embedded platforms such as Raspberry Pi, without the need for additional drivers, lowering the adaptation threshold. It supports SDK development, allowing secondary function expansion according to specific needs.

4. Reliable Integration and Production: With a compact size of 38mm x 38mm, it is easy to embed into various devices. The adoption of SMT (ROHS) environmental protection technology and AA assembly process: the former complies with environmental standards, while the latter ensures lens assembly precision, improving product stability and service life.

Technical Parameters:

Product Name

Machine Vision Compact Camera Module

Sensor

IMX283
Piexl 20MP

Resolution

4K

Output Interface

 USB3.0

Sensor Size

1 Inch

Keywords

CMOS Camera Module

Warranty

10 Years

Focusing Range

10cm~Infinity

Brand Name

SINCEREFIRST


Applications:

Industrial Inspection: The high resolution and large-format sensor are suitable for scenarios such as precision component inspection, surface defect identification, and dimension measurement. The 4K resolution can capture subtle features.
Smart Terminal Devices: Applicable to devices such as smart conference tablets, all-in-one machines, and self-service terminals. The Type-C interface and USB3.0 rate ensure smooth transmission of high-definition videos, and the 4K image quality improves the clarity of conference videos.
Security Monitoring: It can be used as a high-definition surveillance camera. The H.264/H.265 encoding reduces storage and bandwidth consumption while ensuring 4K image quality. The multi-system compatibility feature facilitates access to surveillance platforms of different brands.

Embedded Development: The module supports SDK and multi-system adaptation, and is used in developing projects such as face recognition, object tracking, and image recognition, helping students quickly master the development and application skills of imaging equipment.

Medical Auxiliary Scenarios: The 4K high-definition image quality can clearly present skin textures and details inside the oral cavity. The auto-focus function allows medical staff to quickly adjust the shooting angle, improving the efficiency of medical diagnosis.
20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module 1

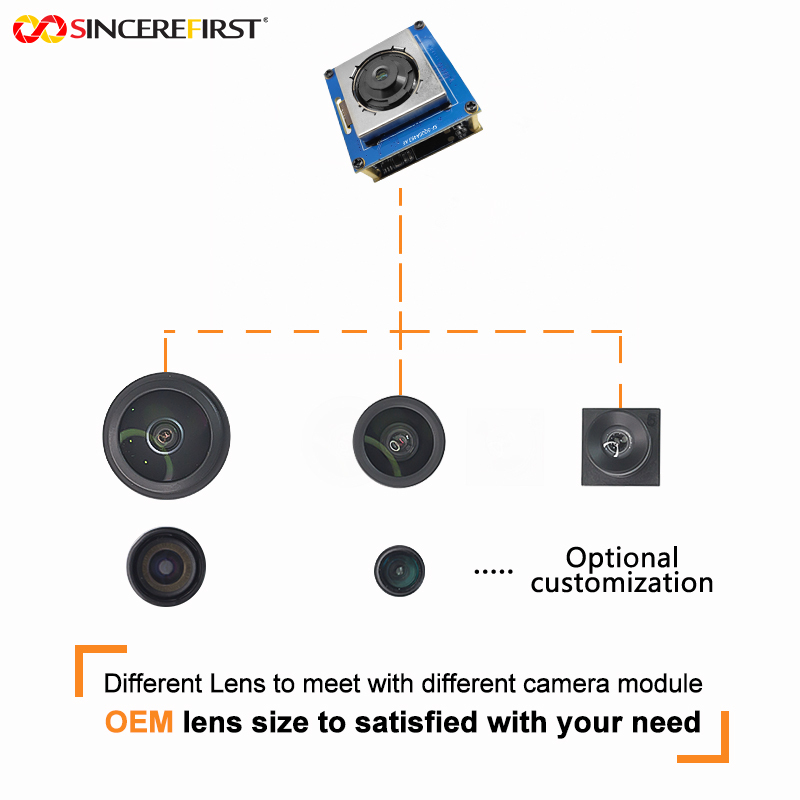

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module 2



Cooperative Brands & Customers:

20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module 3



Why Chooes US:

20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module 4

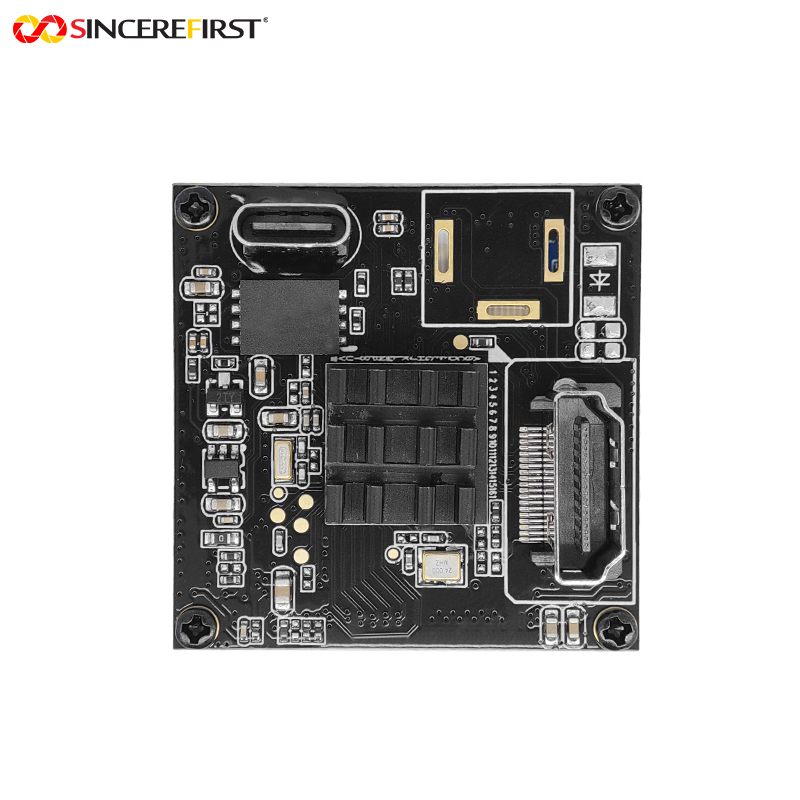

Detail Pictures:

20MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module 520MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module 620MP UHD Sony IMX283 CMOS High-Speed USB3.0 Camera Module 7
