2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices

2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices

Products - CMOS Camera Module
  • Product Name
    USB2.0 CMOS Camera Module
  • Pixel
    2MP
  • Module Size
    38×38mm ±1mm
  • Pixel Size
    2.7µm × 2.7µm
  • Sensor Size
    1/3.02 Inch
  • Output Format
    MJPG / YUY2
  • Max MJPG Output
    1920×1080@30fps
  • Focus Range
    1cm–∞
  • Interface
    USB2.0 High Speed
  • Connector
    4-pin 2.0mm Terminal Connector
  • Focus Type
    Adjustable, Manual Focus Or Fixed Focus
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF-SQ2A4913
  • Minimum Order Quantity
    5pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, , Paypal and Others
  • Supply Ability
    350000 pcs / month

2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices

  • 2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices
  • 2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices
  • 2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices
  • 2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices
  • 2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices
  • 2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices
Get Price Contact Now

2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices

2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices



Product Description:

This is 2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices.It supports 1920×1080@30fps in MJPG mode, uses a 38×38mm PCB, and operates at DC5V with 120mA operating current. It is a balanced choice for barcode readers, smart terminals, inspection devices, embedded USB cameras and PC-based vision systems.

Choose this model when you need 1080P USB imaging with a good balance between image quality, cost and integration simplicity.

Features:

1. 2MP Full HD Image Capture: 1920×1080 resolution is suitable for visual inspection, object checking, barcode image input and smart terminal video capture.


2. 1080P 30fps MJPG Output: The module supports 1920×1080@30fps in MJPG mode, providing smooth Full HD USB video preview.


3. USB2.0 UVC Driver-Free Design: USB Video Class support helps simplify connection to standard USB host systems.


4. Low 120mA Operating Current: Lower current consumption makes it suitable for compact devices and embedded USB camera systems.


5. Flexible Lens Options: Optional lens directions from 1.8mm to 16mm can support different viewing angles and working distances.


6. Adjustable Image Parameters: Brightness, contrast, hue, saturation, sharpness, gamma, white balance, backlight compensation, gain and exposure can be adjusted.





Technical Parameters:

Product Name

USB2.0 CMOS Camera Module

Sensor

CMOS
Piexl 2MP

Resolution

1920×1080@30fps

Output Interface

 USB2.0

Sensor Size

1/3.02 Inch

Pixel Size

2.7µm × 2.7µm

Output Format

MJPG / YUY2

Connector

 4-pin 2.0mm Terminal Connector

Keywords

CMOS Camera Module

Warranty

10 Years

Focusing Range

1cm~Infinity

Brand Name

SINCEREFIRST


Applications:

1. Barcode / QR Code Image Acquisition: Optimizes logistics sorting and retail self-checkout processes. Utilizes high resolution and autofocus technology to accurately extract dense barcode details under complex lighting or motion, guaranteeing efficient and accurate data entry.



2. Product Appearance Checking: Facilitates finished-goods quality control on automated production lines. Relies on stable visual input to capture surface scratches, color deviations, or deformations in real time, assisting AI algorithms in rapid pass/fail judgment and defective product sorting.



3. Document and Label Capture: Enables office digitization and industrial nameplate reading. Combines exceptional color reproduction and edge optimization to clearly render texts and patterns against complex backgrounds, fulfilling quality control needs for automated information entry.



4. Smart Terminal Image Input: Integrates into self-service kiosks and smart interactive devices. Adopts a compact module design for seamless embedding into terminal panels, providing high-quality front-end visual support for identity verification, gesture interaction, and environmental perception.



2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

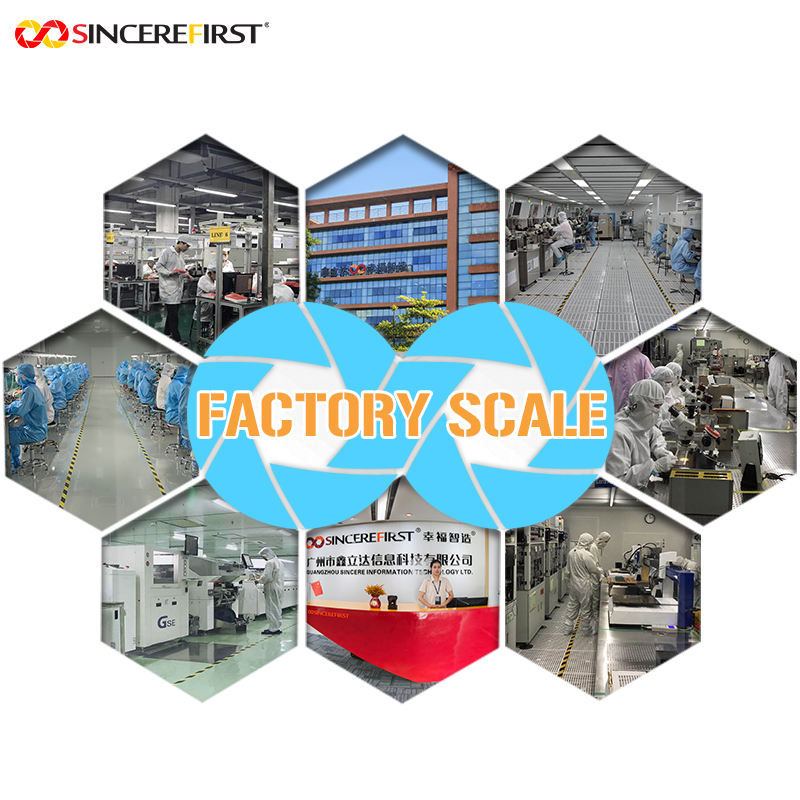

About US:

2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices



Cooperative Brands & Customers:

2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices



Why Chooes US:

2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices

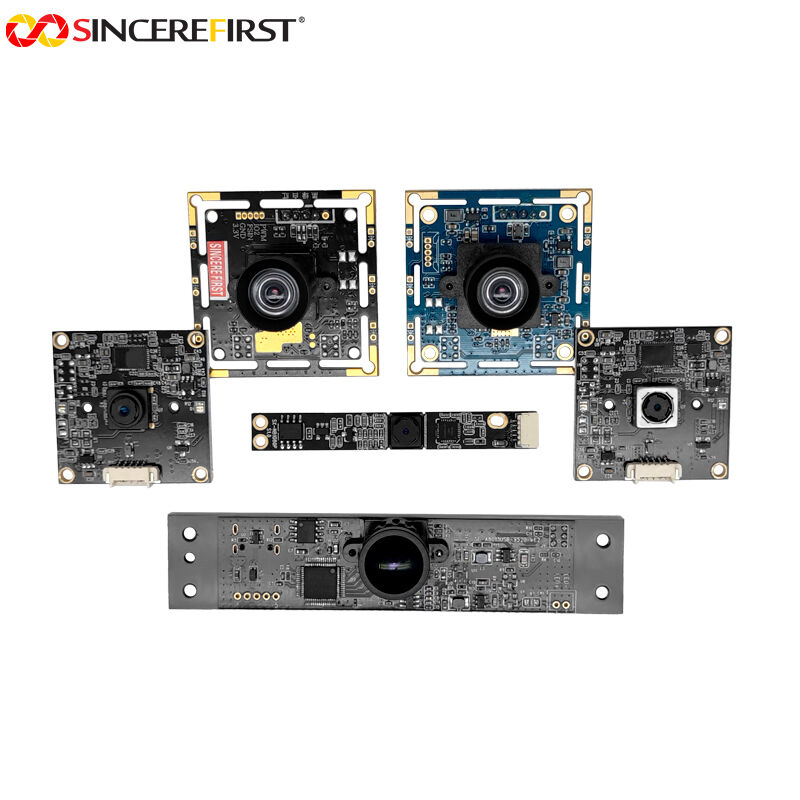

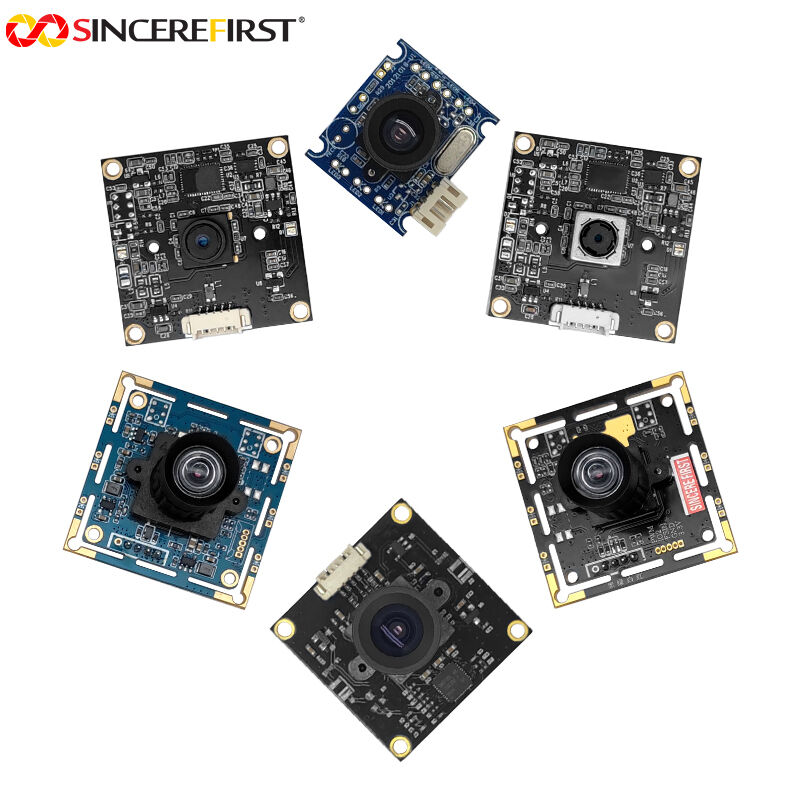

Detail Pictures:

2MP USB2.0 UVC Camera Module with 1080P30 MJPG Output for Inspection and Smart Devices
